7-53
INSPECTION AND MAINTENANCE
80SS5-01E
Tightening torque for oil filler and level
plug
Manual transmission (1) or (2):
21 Nm (2.1 kg-m, 15.5 lb-ft)
Manual transmission (3):
27 Nm (2.7 kg-m, 19.5 lb-ft)
Gear oil change
Since special procedures, materials and
tools are required, ask an authorized
SUZUKI dealer for this job.

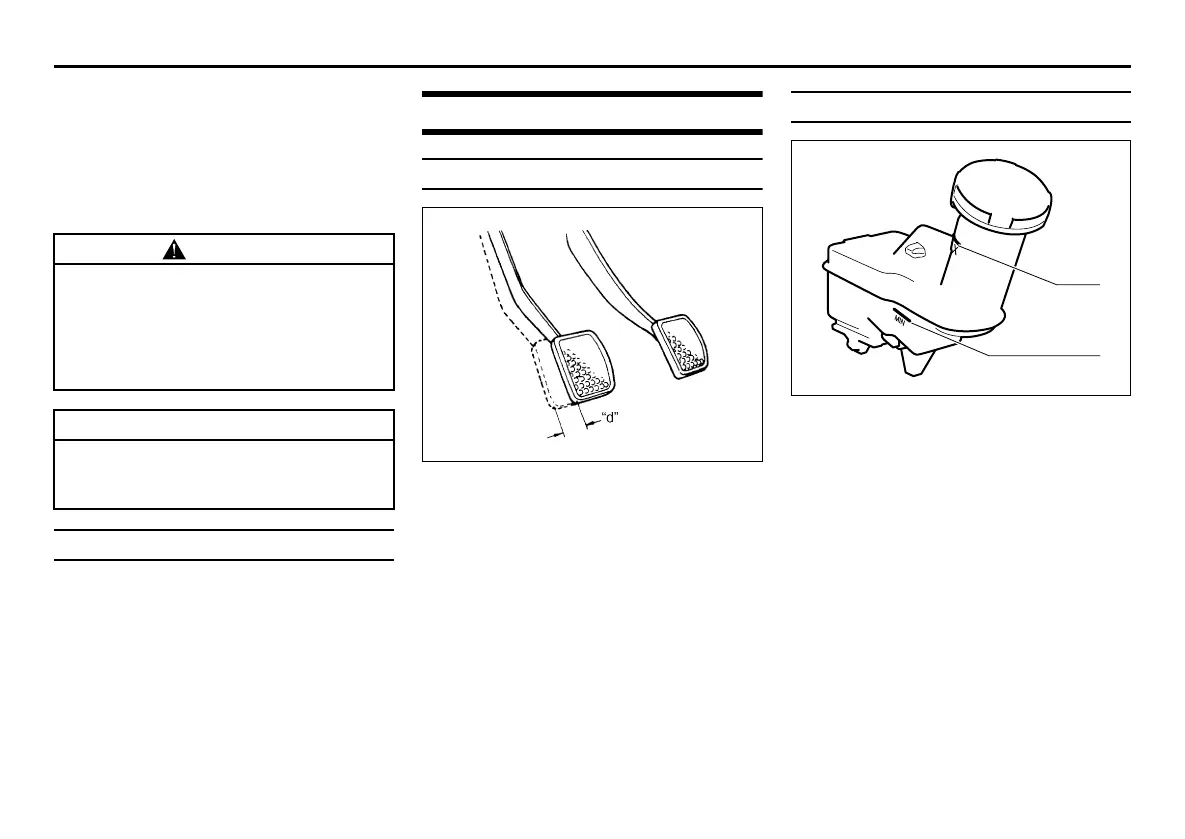

Clutch pedal
Clutch pedal
54G274
Clutch pedal play “d”:
MAX 10 mm (0.4 in.)
Measure the clutch pedal play by moving
the clutch pedal with your hand and mea-
suring the distance it moves until you feel
slight resistance. The play in the clutch
pedal should be less than the specified
values. If the play is more than the above,
or clutch dragging is felt with the pedal fully
depressed, have the clutch inspected by
an authorized SUZUKI dealer.
Clutch fluid
52RM70020
Check the clutch pedal for smooth opera-
tion and clutch fluid level from time to time.
If clutch dragging is felt with the pedal fully
depressed, have the clutch inspected by
an authorized SUZUKI dealer. If the clutch
fluid level is near “MIN” line, fill it up to
“MAX” line with DOT3 or SAE J1703 brake
fluid.
CAUTION
After driving the vehicle, the gear oil
temperature may be high enough to
burn you. Wait until the oil filler and
level plug are cool enough to touch
with your bare hands before inspect-
ing gear oil level.
NOTICE
Be sure to use new plug with new gas-
ket to avoid looseness of the plug and
oil leakage.
MIN
MAX
