INSPECTION AND MAINTENANCE
80SS5-01E
80SM148

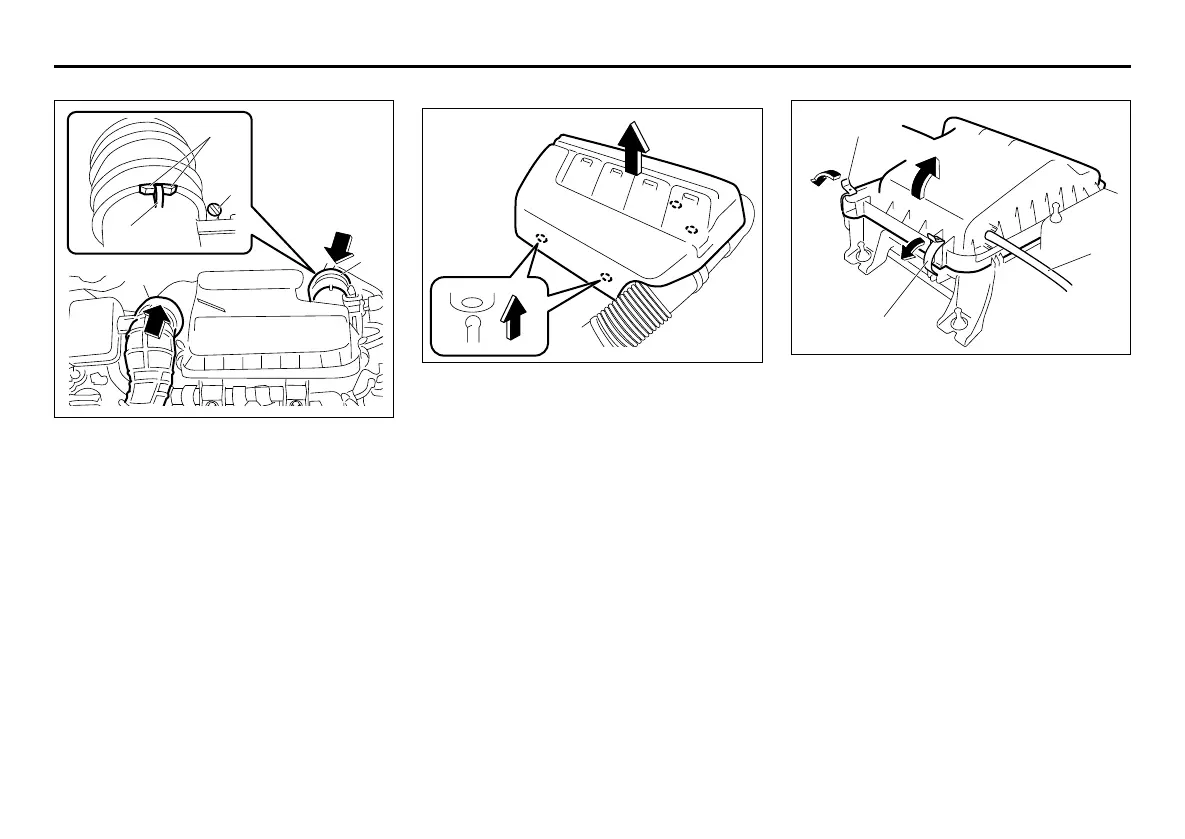

4) Insert the hose (1) and hose (3).
Tighten the hose clamp (2) securely.
NOTE:
Attach the hoses to the air cleaner case
and the air cleaner cap so that the protrud-
ing part (5) is aligned with the notch (6).
(For K14C engine model)
52RM214
1) Lift the engine cover directly above.
52RM215
2) Unclamp the side clamps (1), pull out
the hose (2) and remove the element
from the air cleaner case. If it appears
to be dirty, replace it with a new one.
3) Insert the hose and clamp the side
clamps securely.
4) Put the engine cover back into place.
