7-55
INSPECTION AND MAINTENANCE
80SS5-01E
52RM70300
81PN159
52RM70260

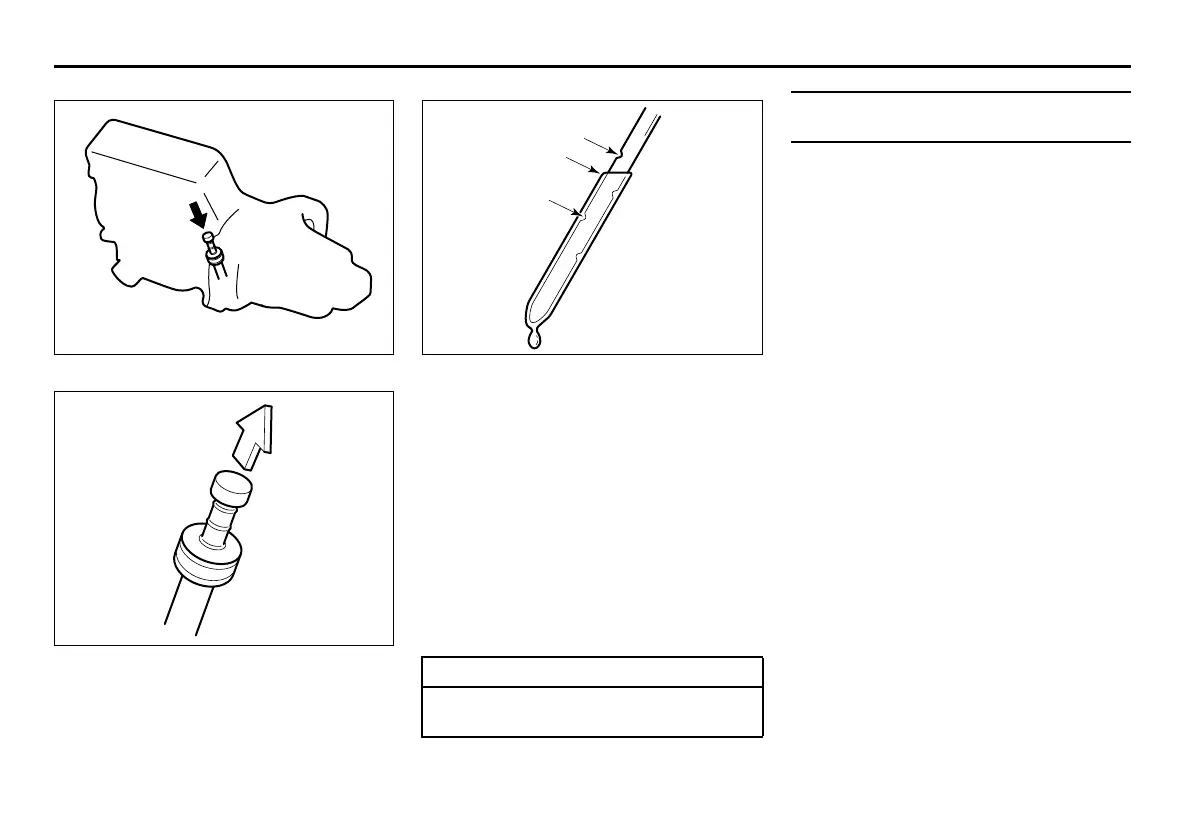

(1) FULL HOT
(2) LOW HOT
(3) The lowest point = Fluid level
6) The handle of the CVT fluid dipstick is
colored orange for easy identification.
Remove the dipstick, wipe the oil off
with a clean cloth and push it back in
until the cap seats. Then pull out the
dipstick.
7) Check both sides of the dipstick, and
read the lowest level. The fluid level
should be between the two marks in “H”
(hot) range on the dipstick.
Deterioration checking or changing
oil
Since special procedures, materials and
tools are required to check the deteriora-
tion of CVT oil or change, ask an autho-
rized SUZUKI dealer for this job.
NOTICE
After checking or adding oil, be sure
to insert the dipstick securely.
(1)
(3)
(2)
