7-38

INSPECTION AND MAINTENANCE

57RK0-14E

52RS70030

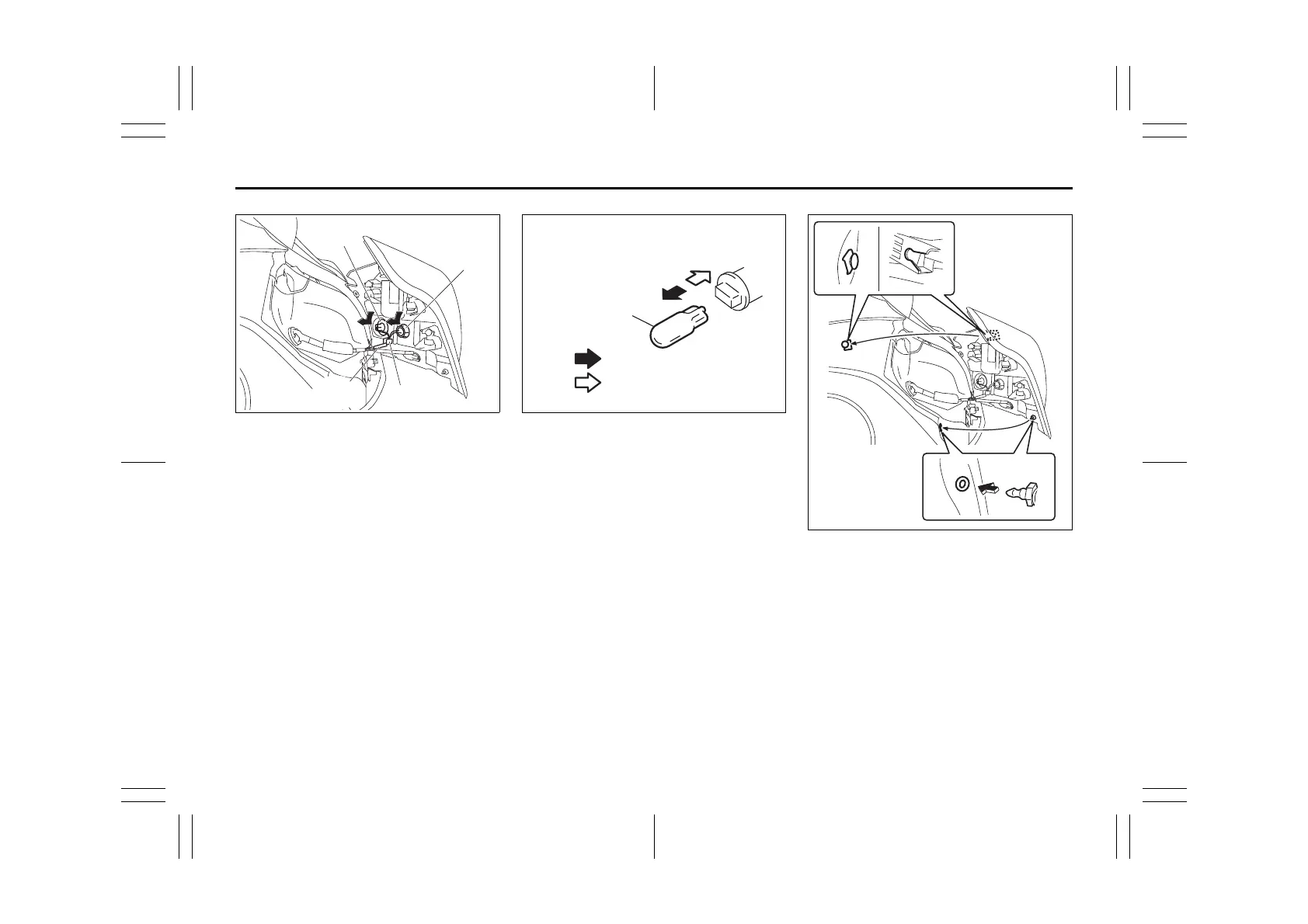

2) Remove the wire (3) from a clamp (4).

3) To remove the bulb holder of the rear

turn signal light (5) or the reversing light

(6) from the light housing, turn the

holder counterclockwise and pull it out.

52RS70050

(7) Removal

(8) Installation

4) To remove and install the bulb of the

rear turn signal light (5) or the reversing

light (6), simply pull out or push in the

bulb.

52RM70190

NOTE:

When reinstalling the light housing, check

that the clips are properly attached.

(4)

(6)

(5)

(3)

(5) / (6)

(7)

(8)

EXAMPLE
