7-42
INSPECTION AND MAINTENANCE
57RK0-14E
61MM0A213

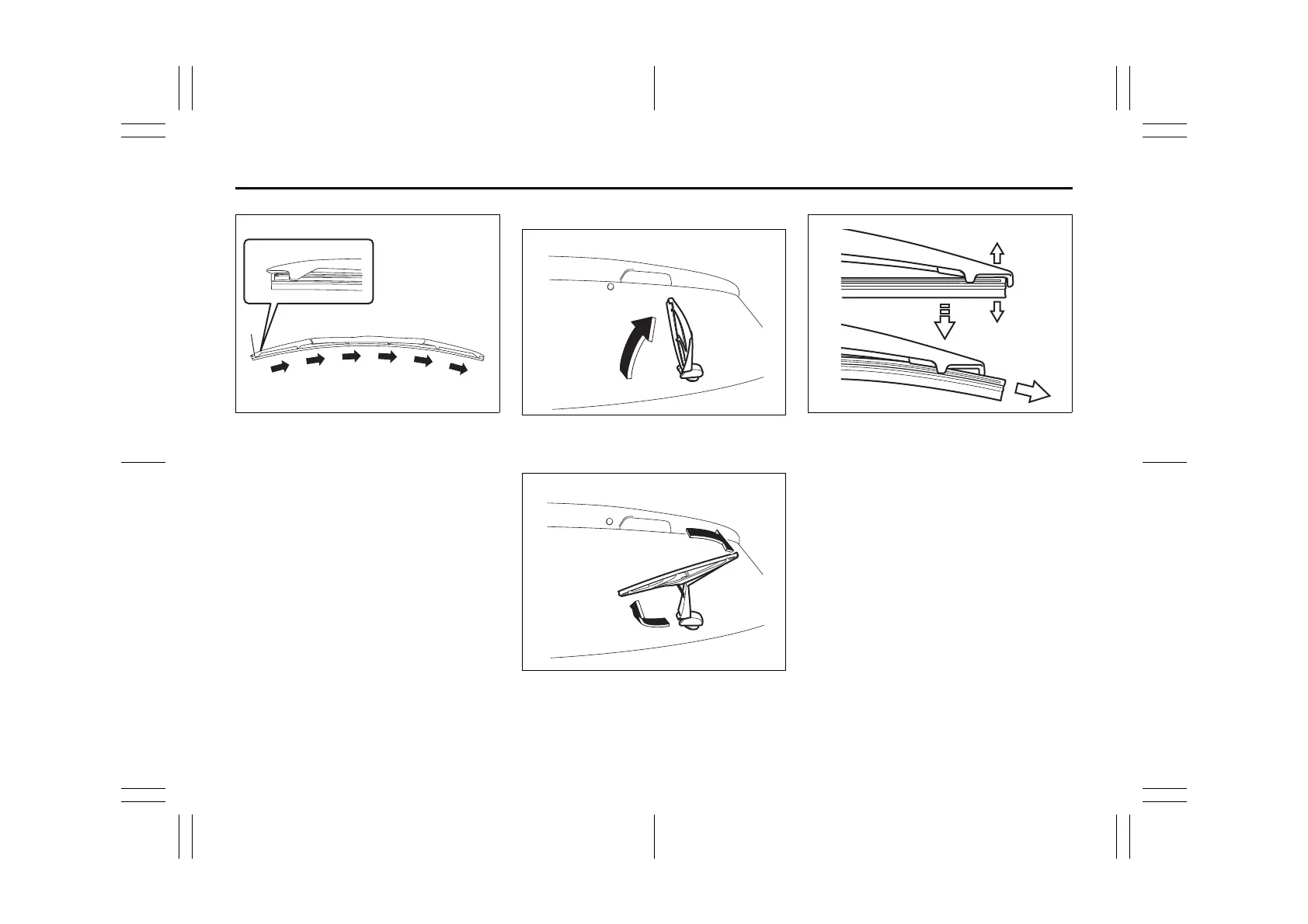

(4) Locked end
5) Install the new blade in the reverse
order of removal, with the locked end
(4) positioned toward the wiper arm.
Make sure the blade is properly
retained by all the hooks. Lock the
blade end into place.
6) Reinstall wiper frame to arm, making
sure that the lock lever is snapped
securely into the arm.
For rear wiper:
52RM70460
1) Hold the wiper arm away from the win-
dow.
52RM70490
2) Remove the wiper frame from the wiper
arm after rotating the wiper frame clock-
wise.
52RM70470
3) Slide the blade out as shown.
NOTE:
Do not flex the wiper blade frame end more
than necessary. If you do, it can break off.
To Next Page
