Suzuki VZ1500 User Manual

7-36
ENGINE COOLANT

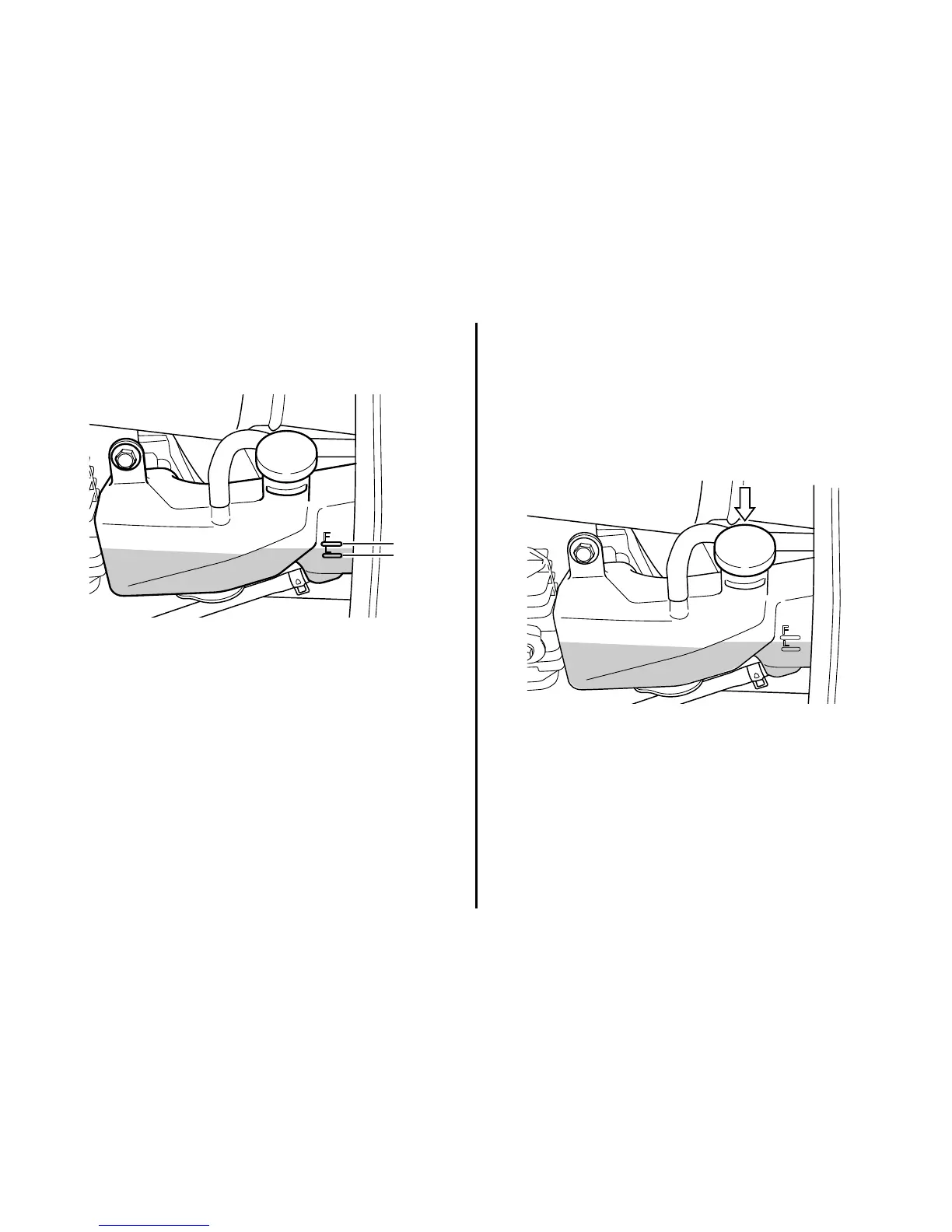

Coolant level
The engine coolant solution should be
between the “F” (full) and “L” (low) level
lines on the engine coolant reservoir. If
the level is lower than “L” (low) level line,
bring it up to “F” (full) level by adding a
50:50 mixture of distilled water and
engine coolant.
To add mixed coolant:
1. Place the motorcycle on the side
stand.
2. Remove the cover by referring to the
SUSPENSION ADJUSTMENT sec-
tion.
3. Remove the filler cap and add prop-
erly mixed coolant through the filler
hole.
F
L

Suzuki VZ1500 Specifications

General

Manufacturer	Suzuki
Model	VZ1500
Displacement	1462cc
Compression Ratio	9.5:1
Fuel System	Fuel injection
Starter	Electric
Final Drive	Shaft Drive
Front Suspension	Telescopic, coil spring, oil damped
Ignition	Electronic ignition (Transistorized)
Transmission	5-speed
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Disc
Rear Brakes	Disc
Ground Clearance	140 mm
