DRIVELINE/AXLE 4-27

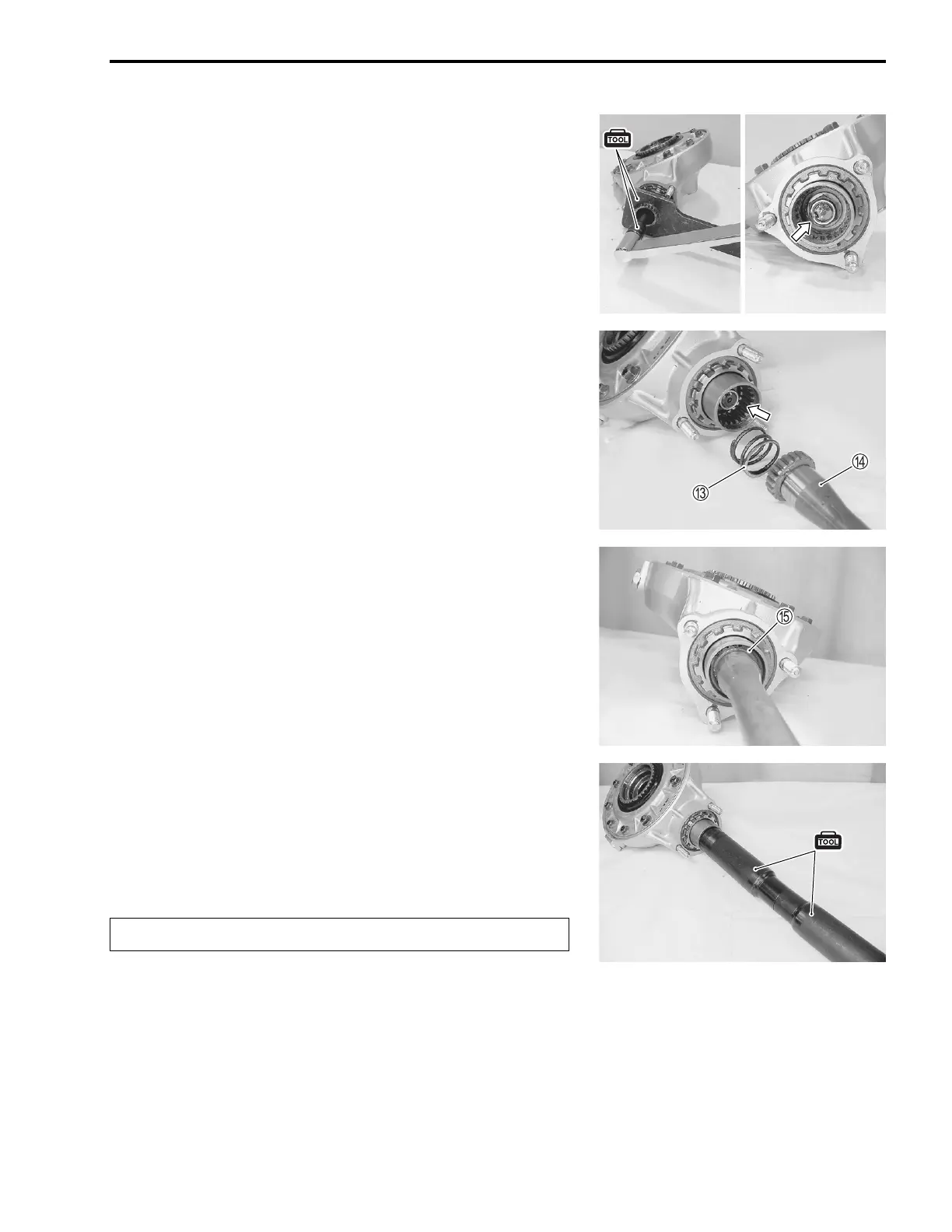

• Tighten the nut to the specified torque with the special tool.
! Final drive gear coupling nut:
100 N·m (10.0 kgf-m, 72.5 lb-ft)
# 09924-62430: 22 mm Long socket
09924-64510: Final drive gear coupling holder
• Lock the final drive bevel gear coupling nut with a center
punch.
• Apply 5 – 7 cm
3
Lithium Base Molybdenum grease (NLGI#2)
to the propeller shaft splines and final drive bevel gear cou-
pling.
• Install the spring C and propeller shaft D.
• Install the snap ring E.
• After installing the propeller shaft with a new snap ring, make
sure that the propeller shaft turns smoothly without any hitch
or bearing noise.
# 09900-06108: Snap ring pliers
• Install the dust seal with the special tool.
# 09940-51410: Steering bearing installer
09925-18011: Bearing installer
• Apply SUZUKI SUPER GREASE “A” to the lip of the dust
seal.
$
' 99000-25010: SUZUKI SUPER GREASE “A”
or equivalent
Use a new dust seal to prevent oil leakage.
