SERVICING INFORMATION 11-35
WIRING HARNESS, CABLE AND HOSE ROUTING

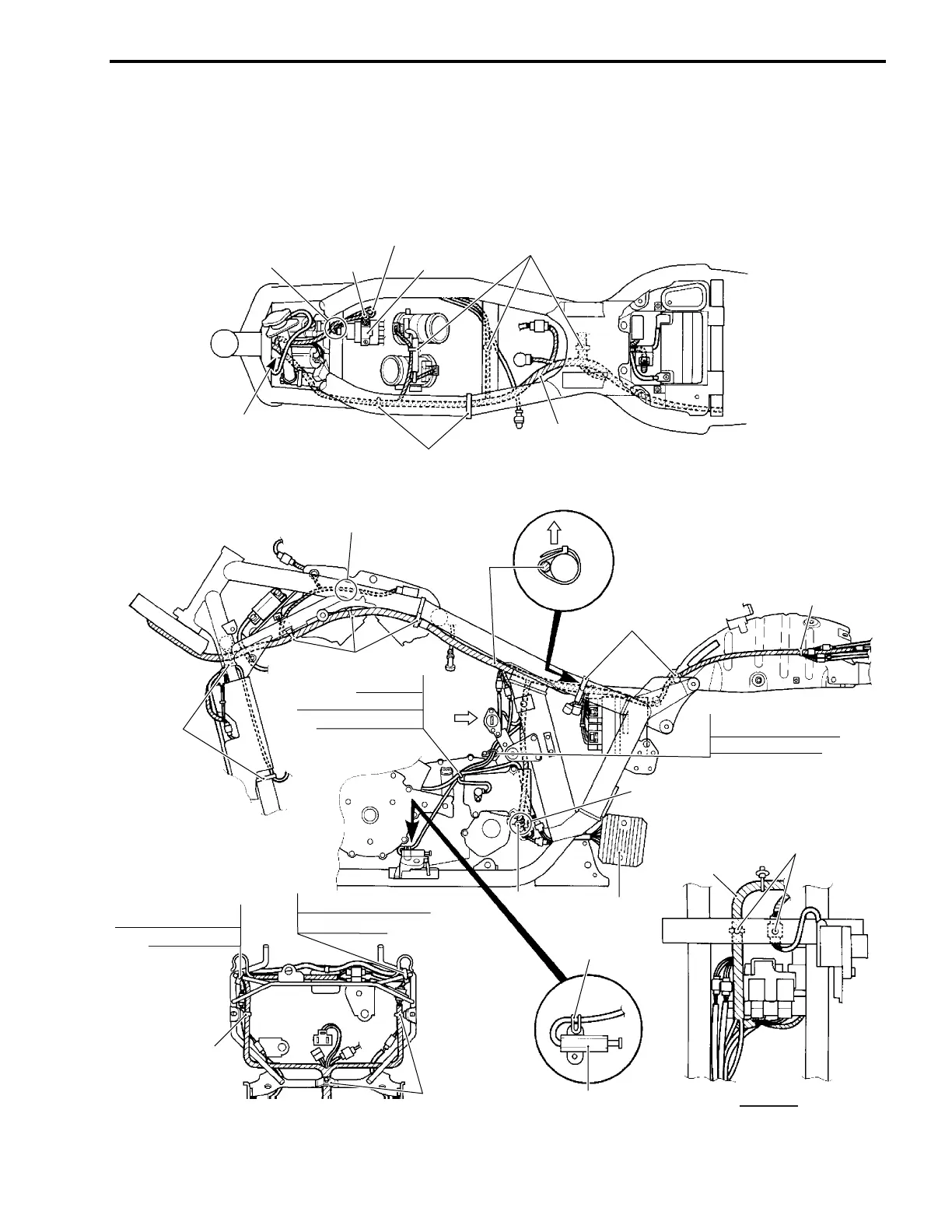

WIRING HARNESS ROUTING
Clamp
Clamp
Wiring harness
Clamp
ISC valve
Wiring harness
Face the lead wire
to the lower.
Set the speedometer
harness to the right side.
Keep the clearance between wiring
harness and fuel tank and frame.
Clamp
Wiring harness
Clamp
To the HO2
sensor
Clamp
Clamp
Upper
Regulator/rectifier
Clamp
Do not touch the regulator/rectifier
lead wire to the other part.
Clamp
Side-stand switch
Clamp
Clamp
Clamp
Wiring harness
Handlebar switch (R)
Clamp
Speedometer
Handlebar switch (L)
Clamp
Speedometer sensor
Side-stand switch
Generator
VIEW A
A
Speedometer sensor
Side-stand switch
Clamp
Fix the coupler to the frame
Wiring harness
