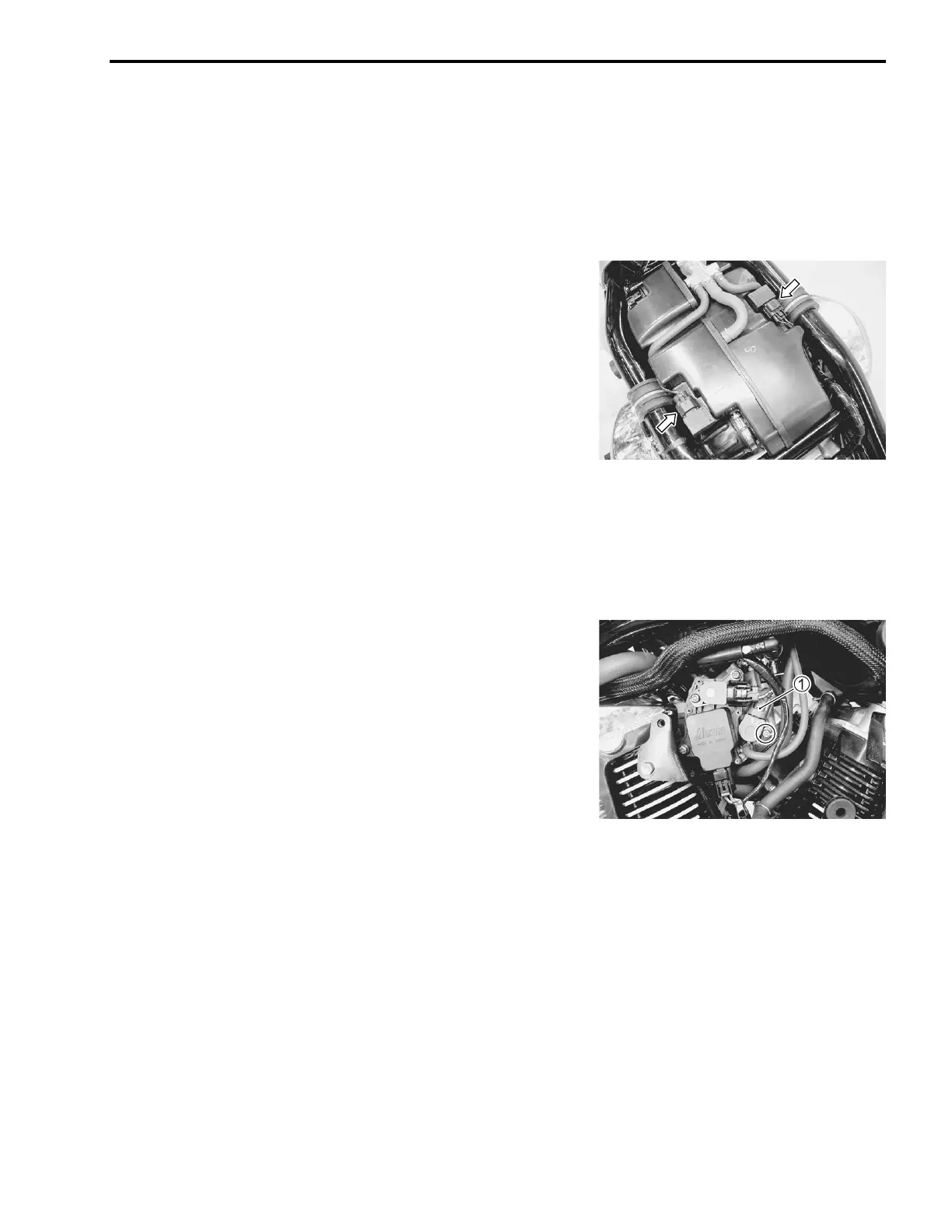

FI SYSTEM DIAGNOSIS 5-97
SENSORS
IAP SENSOR INSPECTION
The intake air pressure sensor is located at the right and left
side of the air cleaner box. (#6-13)
IAP SENSOR REMOVAL AND
INSTALLATION
• Remove the fuel tank. (#6-3)
• Remove the IAP sensors from the air cleaner chamber.
• Install the IAP sensors in the reverse order of removal.
TP SENSOR INSPECTION
The throttle position sensor is installed on the No. 2 throttle
body. (#5-41)
TP SENSOR REMOVAL AND INSTALLATION
• Remove the fuel tank. (#6-3)
• Remove the right air cleaner box. (# 6-13)
• Remove the TP sensor and disconnect the coupler 1.
! 09930-11950: Torx wrench
• Install the TP sensor to the No. 2 throttle body. (#6-19)
TPS ADJUSTMENT
• Adjust the TP sensor. (#5-20)

Suzuki VZR1800 2008 Specifications

General

Displacement	1783 cc
Bore x Stroke	112.0 mm x 90.5 mm
Compression Ratio	10.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Transmission	5-speed constant mesh
Final Drive	Shaft drive
Front Suspension	Inverted telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Dual hydraulic disc
Rear Brakes	Single hydraulic disc
Engine Type	4-stroke, liquid-cooled, DOHC, V-twin
Front Tire	130/70R18M/C 63H
Overall Length	2485mm (97.8 inches)
Overall Height	1185 mm
Ground Clearance	140 mm (5.5 in)
Seat Height	705 mm
Curb Weight	347 kg
