5-8 FI SYSTEM DIAGNOSIS

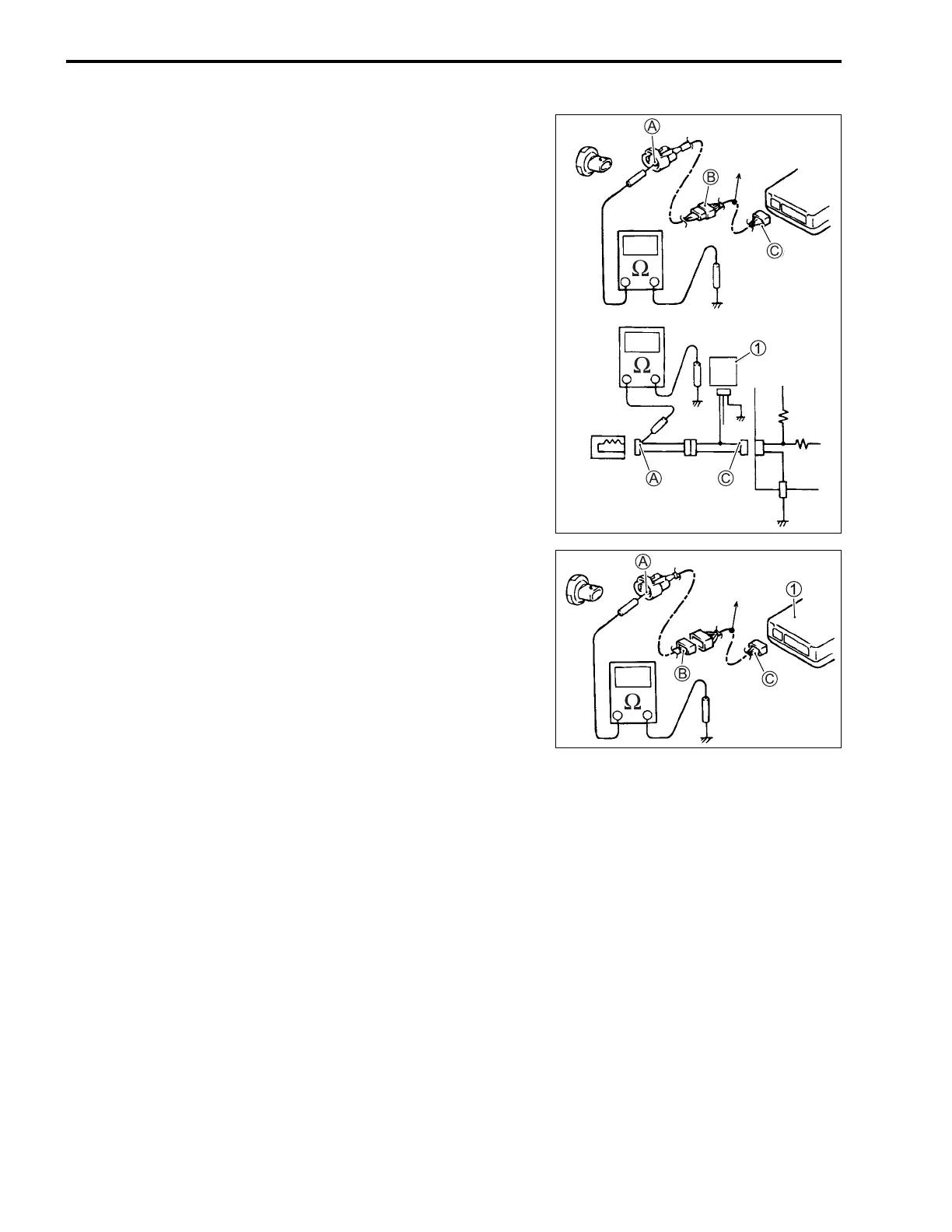

SHORT CIRCUIT CHECK (WIRE HARNESS TO GROUND)
• Disconnect the negative cable from the battery.
• Disconnect the connectors/couplers at both ends of the circuit
to be checked.
NOTE:
If the circuit to be checked branches to other parts as shown,
disconnect all connectors/couplers of those parts. Otherwise,
diagnosis will be misled.
• Measure resistance between terminal at one end of circuit (A
terminal in figure) and body ground. If continuity is indicated,
there is a short circuit to ground between terminals A and C.
1 Other parts
*1 To other parts
• Disconnect the connector/coupler included in circuit (coupler
B) and measure resistance between terminal A and body
ground.
If continuity is indicated, the circuit is shorted to the ground
between terminals A and B.
1 ECM
*1 To other parts
*1
5 V
*1

Suzuki VZR1800 2008 Specifications

General

Displacement	1783 cc
Bore x Stroke	112.0 mm x 90.5 mm
Compression Ratio	10.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Transmission	5-speed constant mesh
Final Drive	Shaft drive
Front Suspension	Inverted telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Dual hydraulic disc
Rear Brakes	Single hydraulic disc
Engine Type	4-stroke, liquid-cooled, DOHC, V-twin
Front Tire	130/70R18M/C 63H
Overall Length	2485mm (97.8 inches)
Overall Height	1185 mm
Ground Clearance	140 mm (5.5 in)
Seat Height	705 mm
Curb Weight	347 kg
