FI SYSTEM DIAGNOSIS 5-47

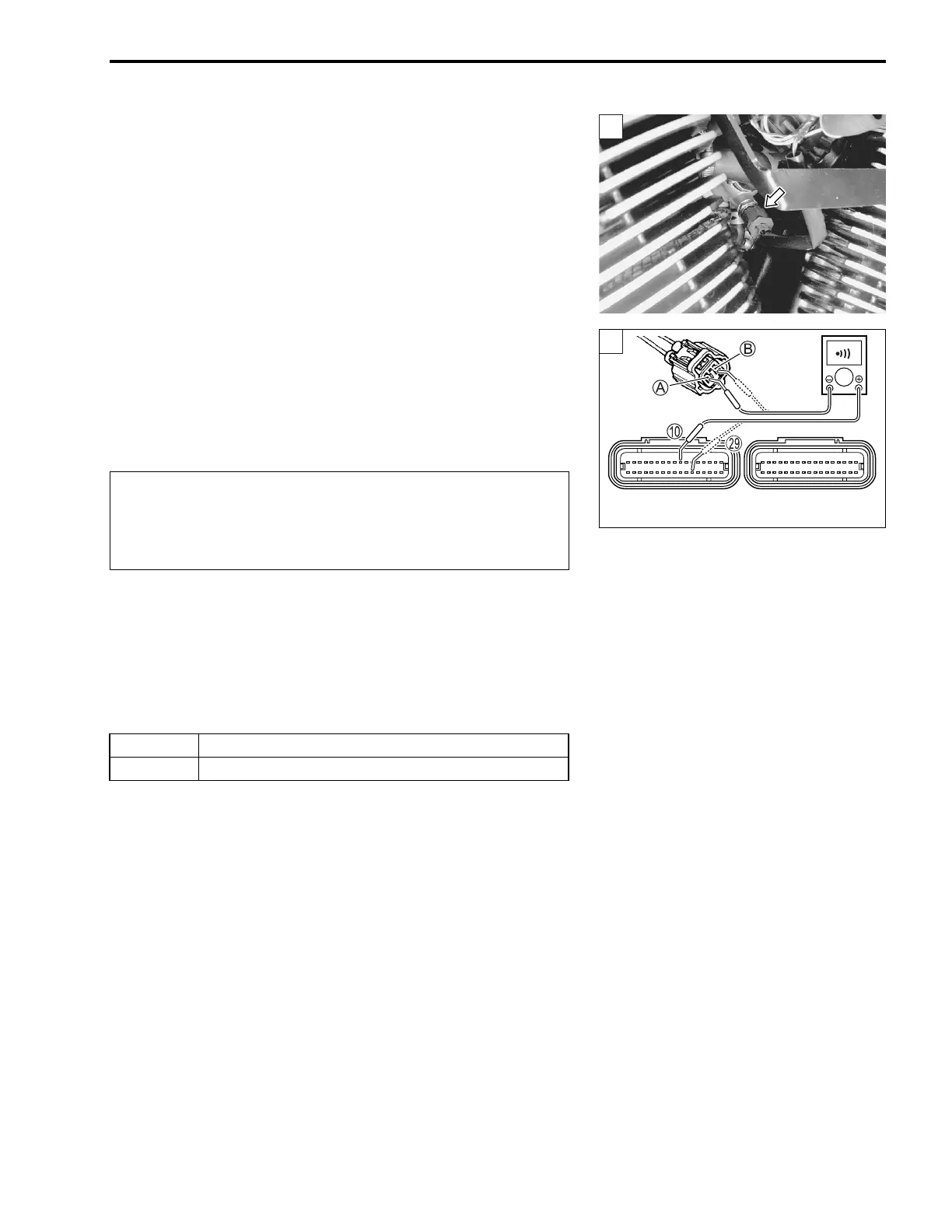

Step 1 (When indicating P0115-H:)
1) Turn the ignition switch OFF.
2) Remove the right air cleaner box. (#6-13)
3) Check the ECT sensor coupler for loose or poor contacts.
If OK, then check the ECT sensor lead wire continuity.
4) Disconnect the ECT sensor coupler and ECM coupler.
(#5-37)
5) Check the continuity between B/Bl wire A and terminal 0.
6) Also, check the continuity between B/Br wire B and terminal
S.
"
$ ECTS lead wire continuity: Continuity (()
! 09900-25008: Multi-circuit tester set
09900-25009: Needle pointed probe set
) Tester knob indication: Continuity test (()
Is the continuity OK?
7) After repairing the trouble, clear the DTC using SDS tool.
(#5-26)
1
When using the multi-circuit tester, do not strongly
touch the terminal of the ECM coupler with a needle
pointed tester probe to prevent the terminal damage
or terminal bend.
YES Go to Step 2.
NO B/Bl or B/Br wire open
1
ECM coupler (Harness side)
(Black)
(Gray)
]

Suzuki VZR1800 2008 Specifications

General

Displacement	1783 cc
Bore x Stroke	112.0 mm x 90.5 mm
Compression Ratio	10.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Transmission	5-speed constant mesh
Final Drive	Shaft drive
Front Suspension	Inverted telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Dual hydraulic disc
Rear Brakes	Single hydraulic disc
Engine Type	4-stroke, liquid-cooled, DOHC, V-twin
Front Tire	130/70R18M/C 63H
Overall Length	2485mm (97.8 inches)
Overall Height	1185 mm
Ground Clearance	140 mm (5.5 in)
Seat Height	705 mm
Curb Weight	347 kg
