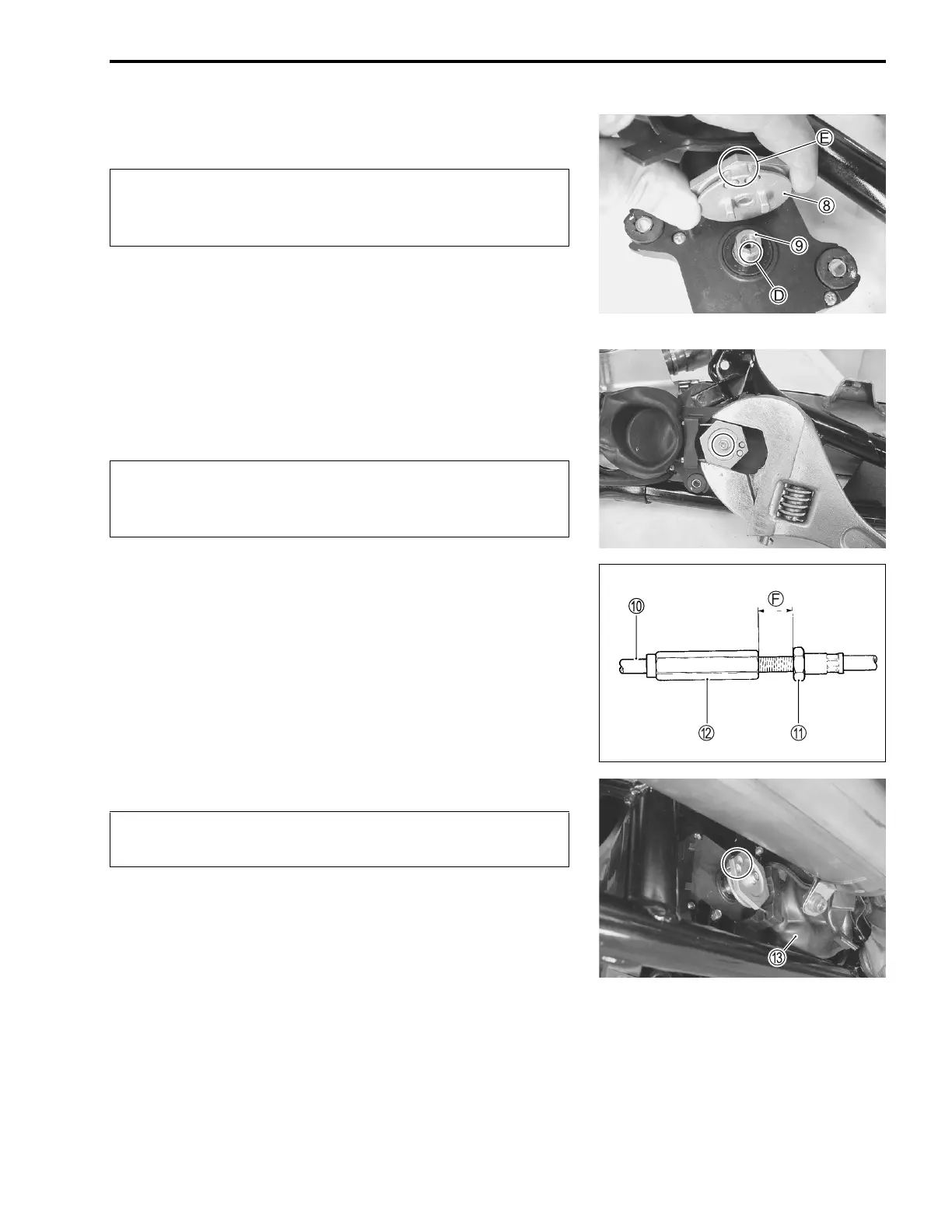

EXHAUST SYSTEM 7-5
• Check the EXCVA to adjustment position. (!7-2)
#
• Install the pulley 8 to the shaft 9.
NOTE:
Make sure that the shaft’s line D and cable slots E facing
upward as shown.
• Hold the EXCVA pulley with an adjustable wrench, and then
tighten the pulley mounting bolt to the specified torque.
$ EXCVA pulley mounting bolt: 5 N·m (0.5 kgf-m, 3.5 lb-ft)
#
• After connecting the No. 2 cable 0, loosen the lock nut A
and turn the adjuster B in or out until 8.5 – 9.5 mm (0.33 –
0.37 in) of the thread length F on the cable adjuster cam be
provided and tighten the lock nut A.
#
NOTE:
Install the rubber cover C correctly after inspecting it.
Do not use the adjustable wrench to turn EXCVA pul-
ley so as not to cause damage to the internal gear of
EXCVA.
When loosening or tightening the pulley bolt, be sure
to fix the pulley with an adjustable wrench, or EXCVA
may get damaged.
The cable slots of the EXCVA pulley must be located
backward (adjustment position). (!7-2)

Suzuki VZR1800 2008 Specifications

General

Displacement	1783 cc
Bore x Stroke	112.0 mm x 90.5 mm
Compression Ratio	10.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Transmission	5-speed constant mesh
Final Drive	Shaft drive
Front Suspension	Inverted telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Dual hydraulic disc
Rear Brakes	Single hydraulic disc
Engine Type	4-stroke, liquid-cooled, DOHC, V-twin
Front Tire	130/70R18M/C 63H
Overall Length	2485mm (97.8 inches)
Overall Height	1185 mm
Ground Clearance	140 mm (5.5 in)
Seat Height	705 mm
Curb Weight	347 kg
