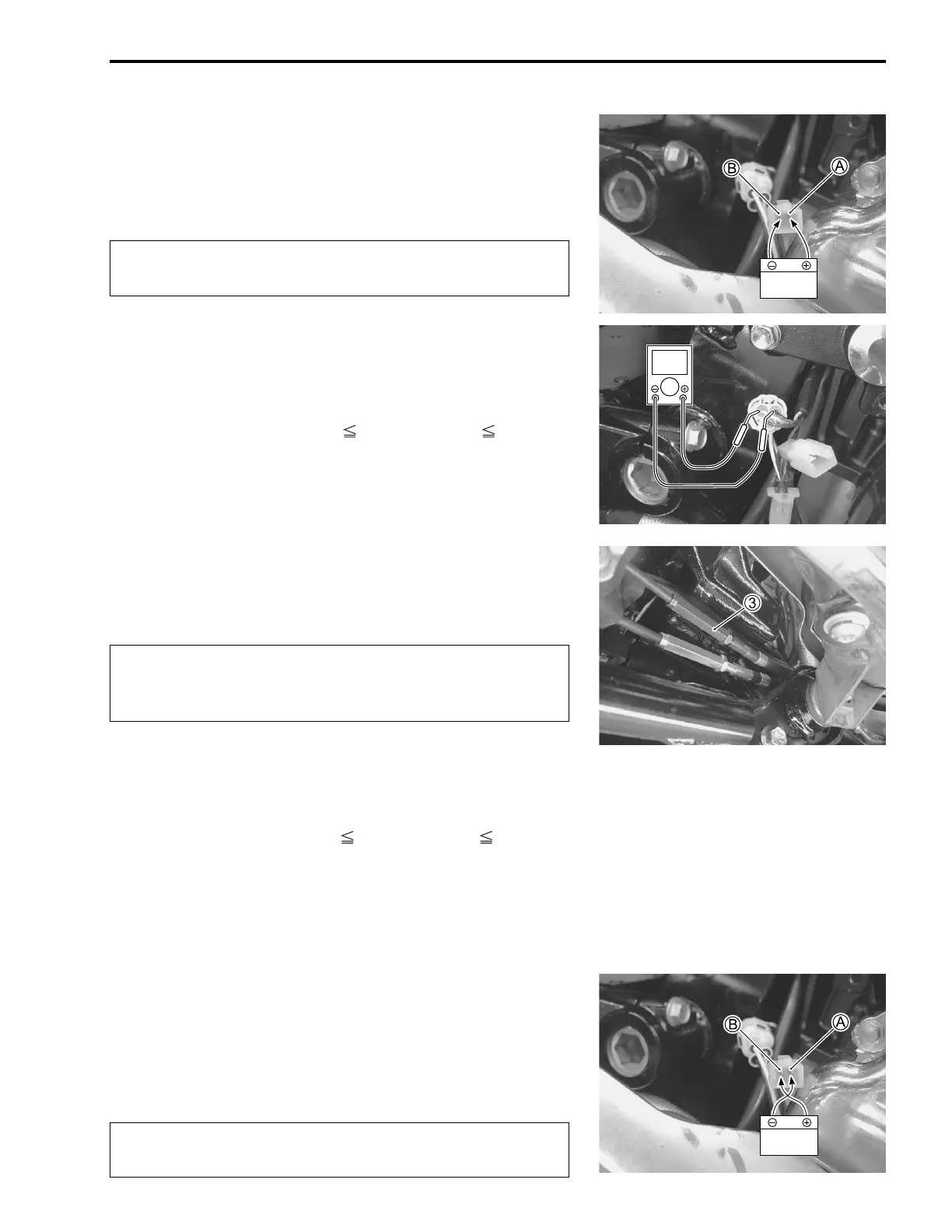

EXHAUST SYSTEM 7-7
• To set the EXCV to fully close position, apply 12 volts to A
and B terminals.
Positive wire –– A (Pink wire) terminal
Negative wire –– B (Gray wire) terminal
#
• Turn the ignition switch ON.
• Measure the position sensor output voltage at fully close posi-
tion.
% Position sensor output voltage
EXCV is fully close: 0.5 output voltage 1.5 V
(+ Yellow – - B/Br)
" 09900-25008: Multi circuit tester set
09900-25009: Needle pointed probe set
& Tester knob indication: Voltage (')
If the measured voltage is less than specification, adjust the
No.1 cable adjuster as follows:
• Set the EXCVA to adjustment position. (!7-2)
#
• Turn out the No. 1 cable adjuster 3.
• Repeat the above procedure until the output voltage becomes
specified value.
% Position sensor output voltage
EXCV is fully close: 0.5 output voltage 1.5 V
• To next step.
NOTE:
If C46 code is indicated after adjusting the voltage, increase the
voltage to 0.9 V.
4th step:
To set the EXCV to fully open position, apply 12 volts to A and
B terminals.
Positive wire –– B (Gray wire) terminal
Negative wire –– A (Pink wire) terminal
#
To prevent the motor damage, stop applying 12 V as
soon as the EXCV reaches fully close position.
12 V
Adjusting the No. 1 cable with the EXCV fully closed
can damage the EXCVA. Be sure to adjust the No.1
cable with the EXCV set in adjustment position.
To prevent the motor damage, stop applying 12 V as
soon as the EXCV reaches fully open position.
V
12 V

Suzuki VZR1800 2008 Specifications

General

Displacement	1783 cc
Bore x Stroke	112.0 mm x 90.5 mm
Compression Ratio	10.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Transmission	5-speed constant mesh
Final Drive	Shaft drive
Front Suspension	Inverted telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Dual hydraulic disc
Rear Brakes	Single hydraulic disc
Engine Type	4-stroke, liquid-cooled, DOHC, V-twin
Front Tire	130/70R18M/C 63H
Overall Length	2485mm (97.8 inches)
Overall Height	1185 mm
Ground Clearance	140 mm (5.5 in)
Seat Height	705 mm
Curb Weight	347 kg
