Suzuki VZR1800 Service Manual

46 VZR1800/ZL0 (’10-MODEL)

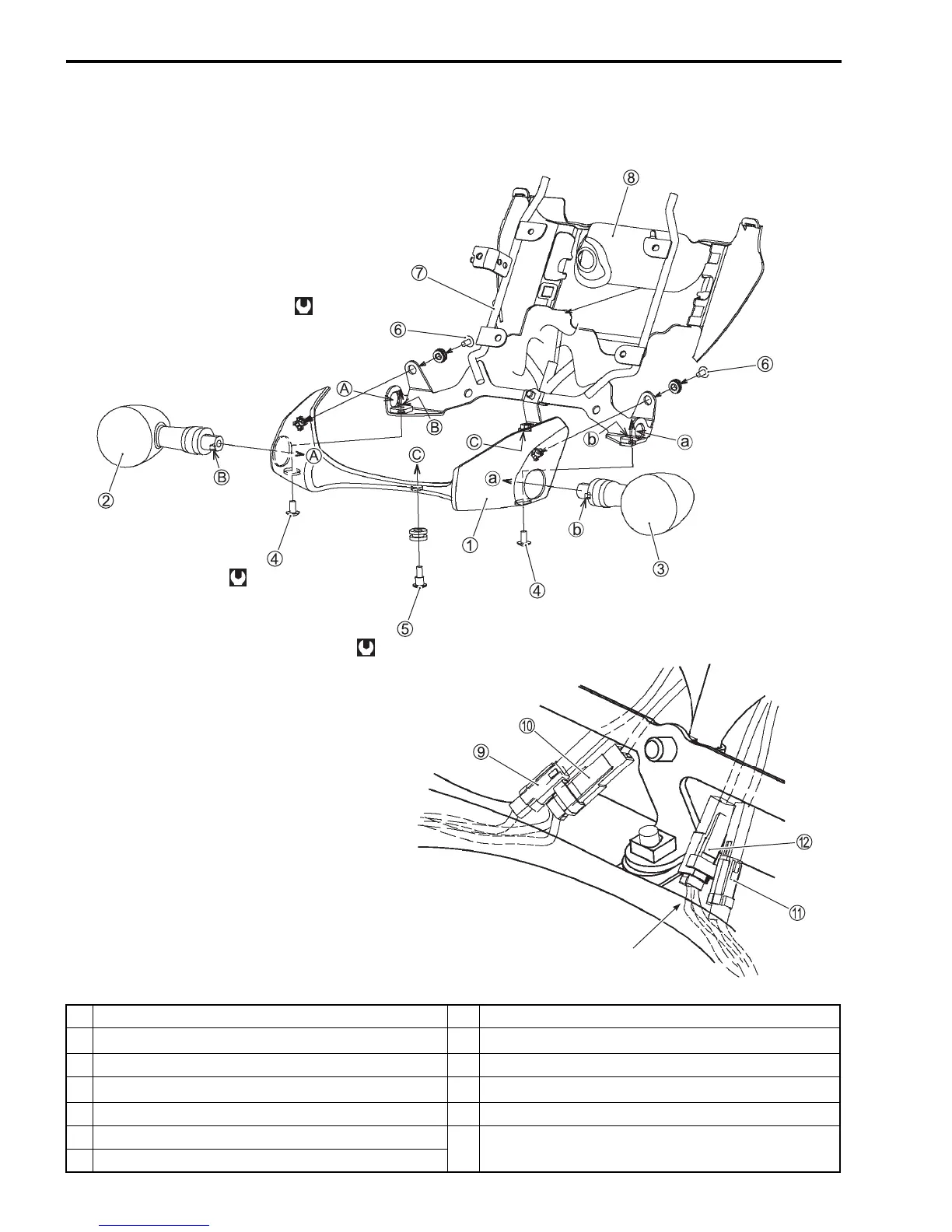

FRONT TURN SIGNAL LIGHT INSTALLATION
1 Front turn signal cover 8 Headlight housing bracket cover
2
Front turn signal light (R)
9
Position light coupler (R) [For E-03, 28, 33]
3 Front turn signal light (L) 0 Front turn signal coupler (R)
4
Front turn signal light mounting screw
A
Position light coupler (L) [For E-03, 28, 33]
5 Front turn signal cover bolt B Front turn signal coupler (L)
6 Front turn signal cover screw
* 1
Pass the turn signal lead wire in the groove of
front turn signal cover.
7 Headlight cover brace
* 1
5.5 N
.
m
0.55 kgf-m
4.0 lbf-ft
( )
5.5 N
.
m
0.55 kgf-m
4.0 lbf-ft
( )
1.5 N
.
m
0.15 kgf-m
1.0 lbf-ft
( )

Suzuki VZR1800 Specifications

General

Engine Type	4-stroke, 2-cylinder, liquid-cooled, DOHC, 54-degree V-twin
Displacement	1783 cc
Bore x Stroke	112.0 mm x 90.5 mm
Compression Ratio	10.5:1
Fuel System	Fuel injection
Transmission	5-speed constant mesh
Final Drive	Shaft drive
Front Suspension	Inverted telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Disc, twin
Rear Brakes	Disc
Front Tire	130/70R18M/C 63H, tubeless
Ground Clearance	140mm (5.5 inches)
Seat Height	705 mm
Curb Weight	347 kg
Overall Height	1185 mm
