SV2000 WV205 - Waveforms

WAVEFORMS
E6NWF
1-10-1
WF6
WF1
WF3
WF4
WF5
WF2

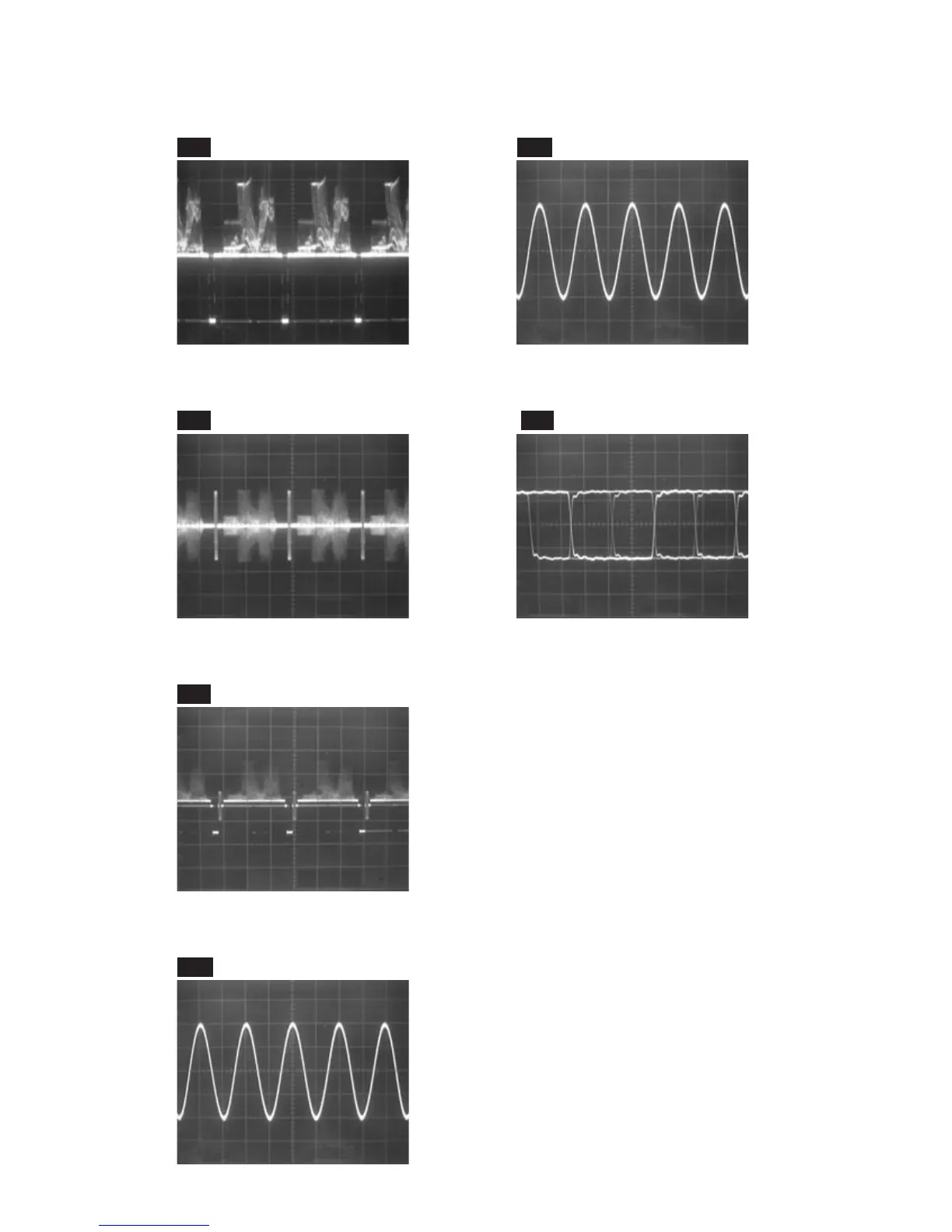

NOTE:
Input
CD: 1kHz PLAY
(WF4~WF6)
DVD: POWER ON (STOP) MODE
(WF1~WF3)
Pin 17 of CN1601
Pin 7 of CN1601
C1402 PLUS LEAD
Pin 12 of CN1601
Pin 14 of CN1601
Pin 9 of CN1601
20
20
µ s0.1V
0.1V
VIDEO-Y
VIDEO-Y
VIDEO-C
VIDEO-C
0.1V
0.1V
20
20
µ s
VIDEO-CVBS
VIDEO-CVBS
0.5V
0.5V
20
20
µ s
AUDIO(L)
AUDIO(L)
1V
1V
0.5ms
0.5ms
AUDIO(R)
AUDIO(R)
1V
1V
0.5ms
0.5ms
SPDIF
SPDIF
1V
1V
0.1
0.1
µ s
