SVAB Quantum - Technical Description; System Overview

Quantum - Tool Recognition
Technical Description
Doc-0001374, Rev B
Sida 7
Technical Description

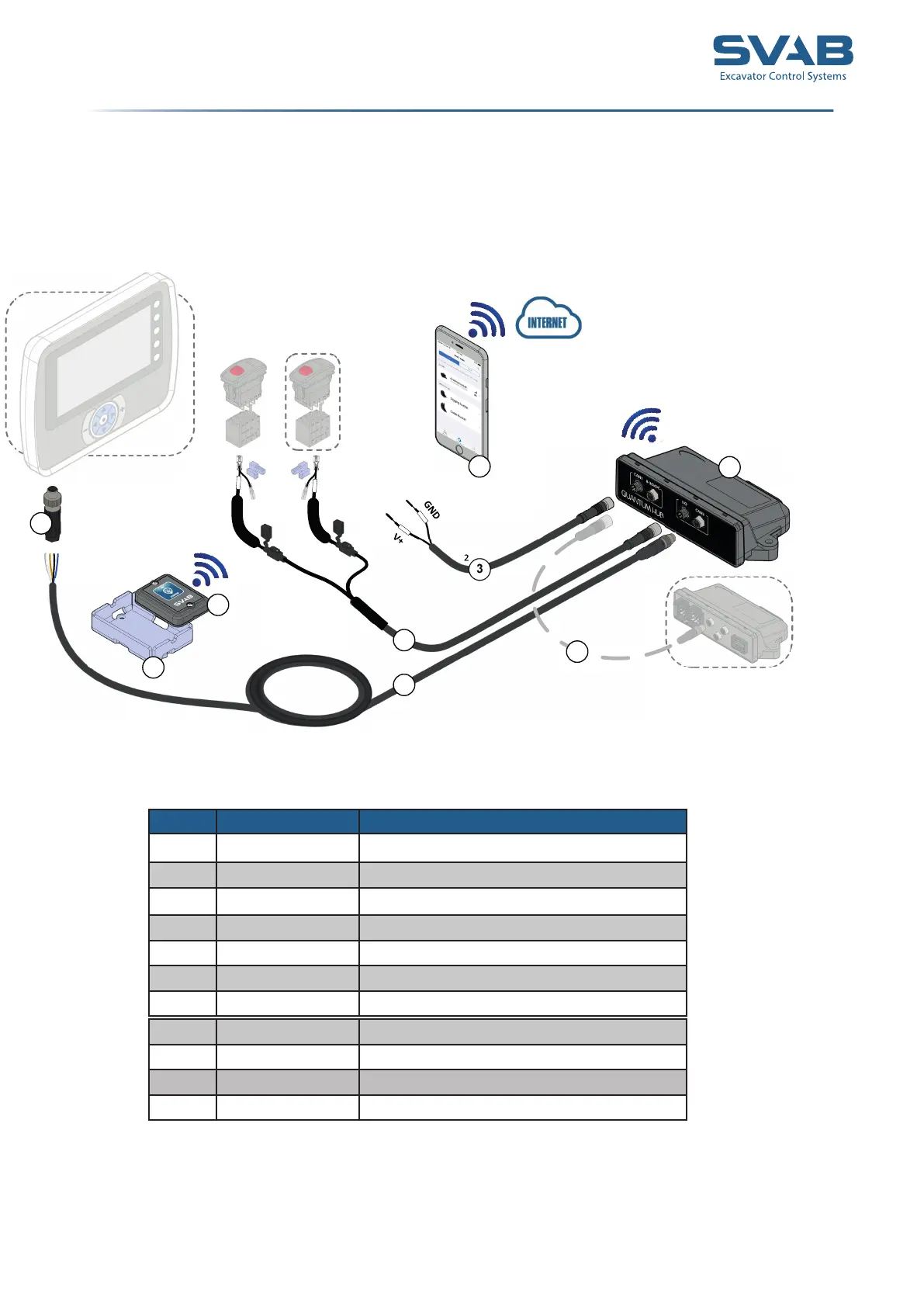

System overview
6
7
1
²
3
2
9
5
4
8
000502
Pos Artikel Benämning
1 P-0000963 Quantum hub
2 P-0000966 TRM
3 P-0001345 Cable supply Quantum Hub
4 P-0001346 Cable Quick coupler signal Quantum Hub
5 P-0000585 Connecting cable Digging system
6 P-0000723 M12 Connector male, straight 5 - pole
7 n/a Quantum App (Google Play/App store)
8a 200586 Jumper cable M8, 0,3 m
8b 149209 Jumper cable M8, 1 m
8c 149207 Jumper cable M8, 2 m
9 P-0001304 Cover TRM
