Fig. 2. Subwoofer rear panel
g
h
i
j

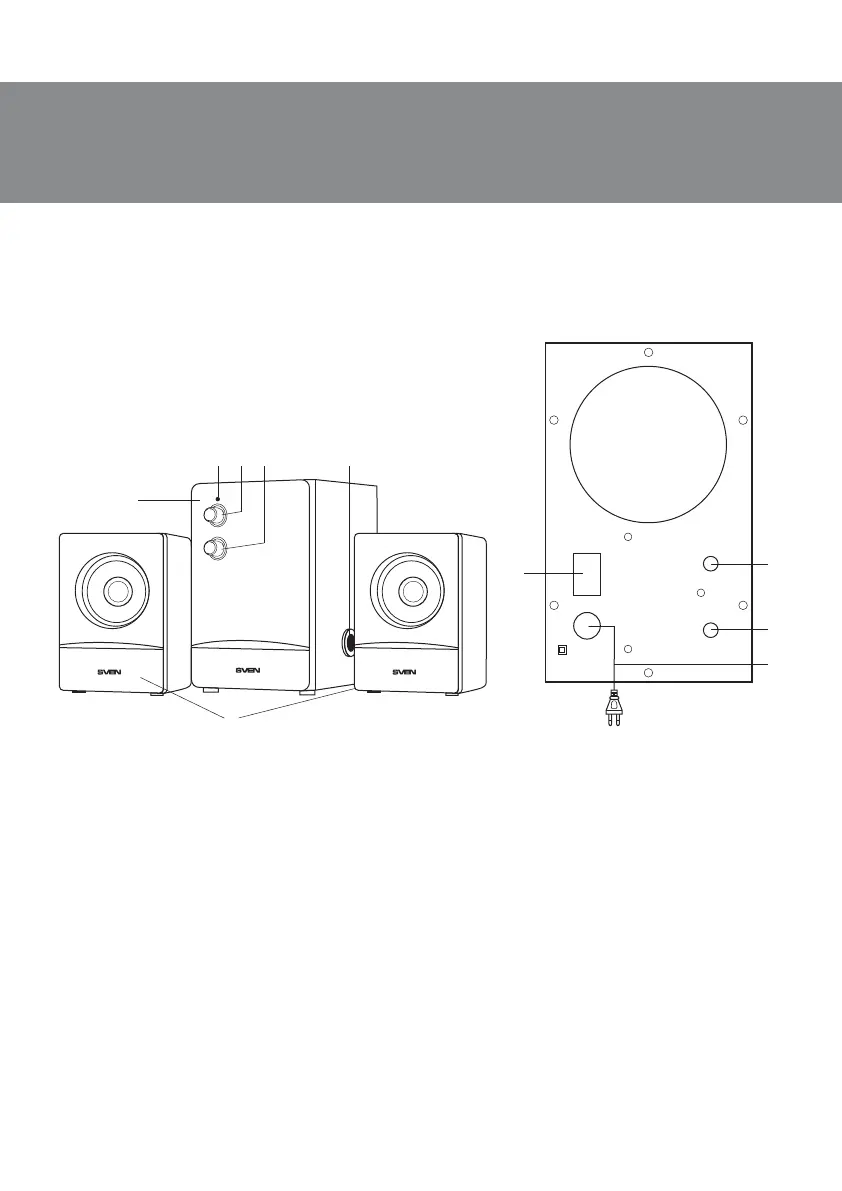

Subwoofer front and rear panels
a Subwoofer
b Power LED
c VOLUME: volume control knob
d BASS: bass control knob
e Bass reflex port
f Speakers
g POWER ON/OFF: power switch
h OUTPUT: Ø 3.5 mm speaker output
i INPUT: Ø 3.5 mm subwoofer output
j Power cord
Fig. 1. Front view
a
b
f
VOLUME
BASS
c d e
POWER
OUTPUT
INPUT
AC POWER
220V/50HZ
OFF
ON
5. PREPARATION AND OPERATION
Speaker placement
• Place the speakers symmetrically to the listener at least one meter away. The subwoofer emits
non-directional sound, therefore it can be located in any convenient place where it sounds the best.
• Since the speaker system has side-mounted bass reflex port e, place the speaker system 20-30
cm away from a wall or any other obstacle.
• Place MSS far away from monitors and TV sets, as insignificant image distortion in these super-
sensitive devices is possible.
MSS сonnecting and control
MS-90 Multimedia Speaker System can be connected to virtually any audio source: DVD / CD, PC
sound card, etc. (see connection diagram in Fig. 3).
• Before making any connections, make sure that the MSS is switched off. Connect the audio cable
built into the speakers into OUTPUT h on the subwoofer (see Fig. 3)
• Connect one mini-jack of the stereo signal cable to INPUT i jack on the subwoofer and the other
mini-jack to your PC or МР3/CD player.
