Setting Up Your Ultra Evolution Speakers
POWER AMPLIFIER
TO
RIGHT
SPEAKER
SPEAKER LEVEL
OUTPUTS
POWER AMPLIFIERS
SPEAKER LEVEL
OUTPUTS
SPEAKER LEVEL
OUTPUTS
POWER AMPLIFIER
SPEAKER LEVEL
OUTPUTS
TO
RIGHT
SPEAKER
SPEAKER CONNECTION
The Ultra Evolution Pinnacle, Titan, Tower, Bookshelf, and Center include dual input speaker
terminals with convenient gold-plated 5-way binding posts that accept wires and cables terminated
with banana plugs, speaker pins, spade connectors and bare wire. As with any speaker wire run, it’s
a smart idea to measure twice, cut once and allow an extra foot or two, just to be safe.
Once you have the proper length, simply connect each speaker to the appropriate channel of your
receiver or power amplifier. Always be sure to maintain
proper +/- polarity between the speaker
and the amplifier.

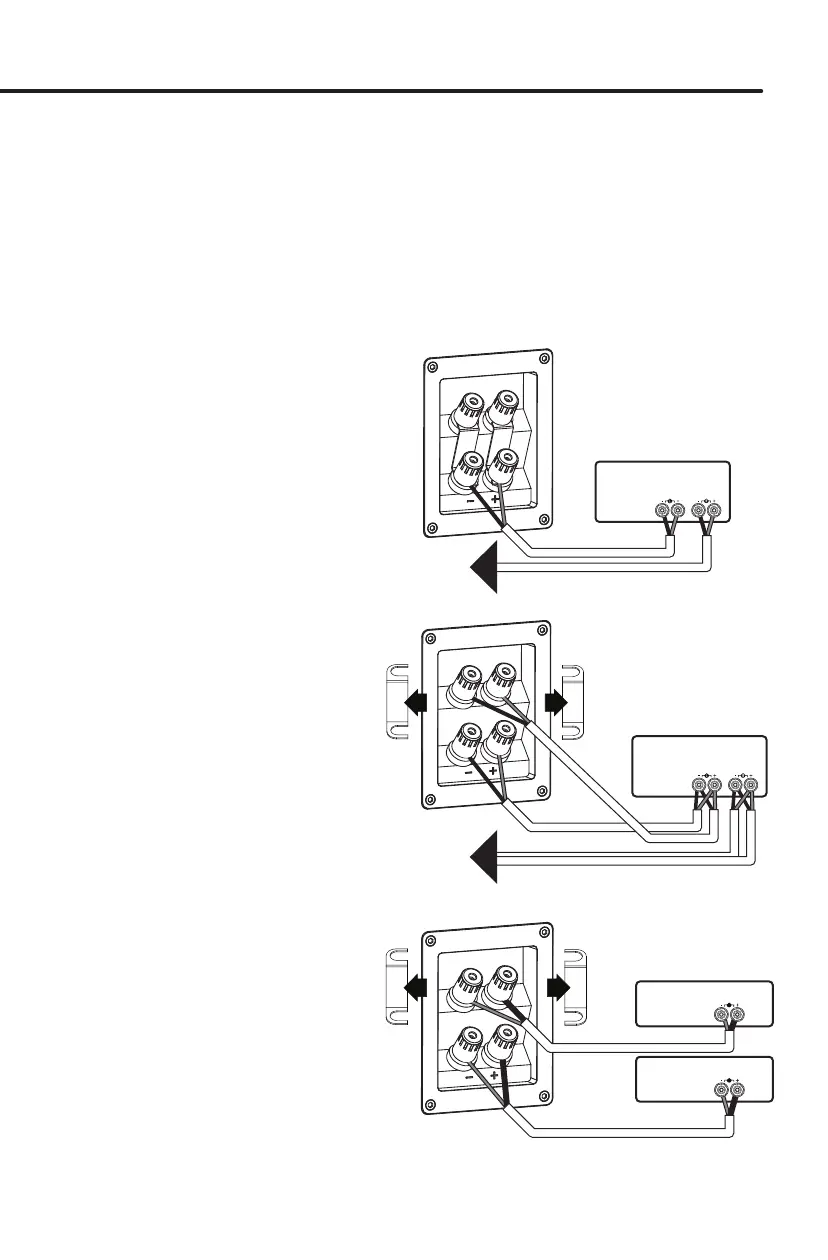

Conventional Wiring
All Ultra Evolution Towers, Bookshelf, and
Center speaker ship ready for convention-
al wiring. With the jumper straps in place,
attach each Ultra Speaker to a separate
amp channel from your receiver/power
amplifier.
Bi-wiring
To Bi-wire first remove the jumper straps
that come pre-installed on the terminals.
With straps removed each pair of binding
posts can be attached to THE SAME amp
channel of your receiver/power amplifier.
Bi-amping
To Bi-amp any of the Ultra Evolution
Speakers, first remove the jumper straps
that come pre-installed on the terminals.
With straps removed each pair of binding
posts can be attached to SEPARATE amp
channels of your receiver/power amplifier.
