©2016 SwellPro All Rights Reserved
20
1. Turn on the radio controller, then power on the drone. Wait util
the self-checking is completed, then ip SWB to Return-Home
position.
2. Pull Left joystick to left-lowest 45°, push Right Joystick to
left-upper 45°as pictured bellow:
3. Wait 2s until the LED is SOLID RED , the drone is now ready for
compass calibration.
4. As pictured bellow in images 1-6 start start with the
horizontally position, pick up the drone to execute a full
counter-clockwise rotation in 6 cubic planes respectively as
pictured, 1 CCW revolution is enough for each plane, and make
sure all the rotations should be based on the same vertical axis.
After completing above process, put the drone on the at
horizontal surface, remain still and wait 2minutes to allow
compass data collection. When the LED changes from solid red
indicator into blinking slowly, the compass calibration is
nished.
(Note: 1. Place Switch SWC3 As pictured in section 4.2.1.2 in ATTI
position and attempt to arm the motors, if they arm it means the
calibration was successful; 2. If the motors fail to arm this means
the calibration is failed, try the above process again.)

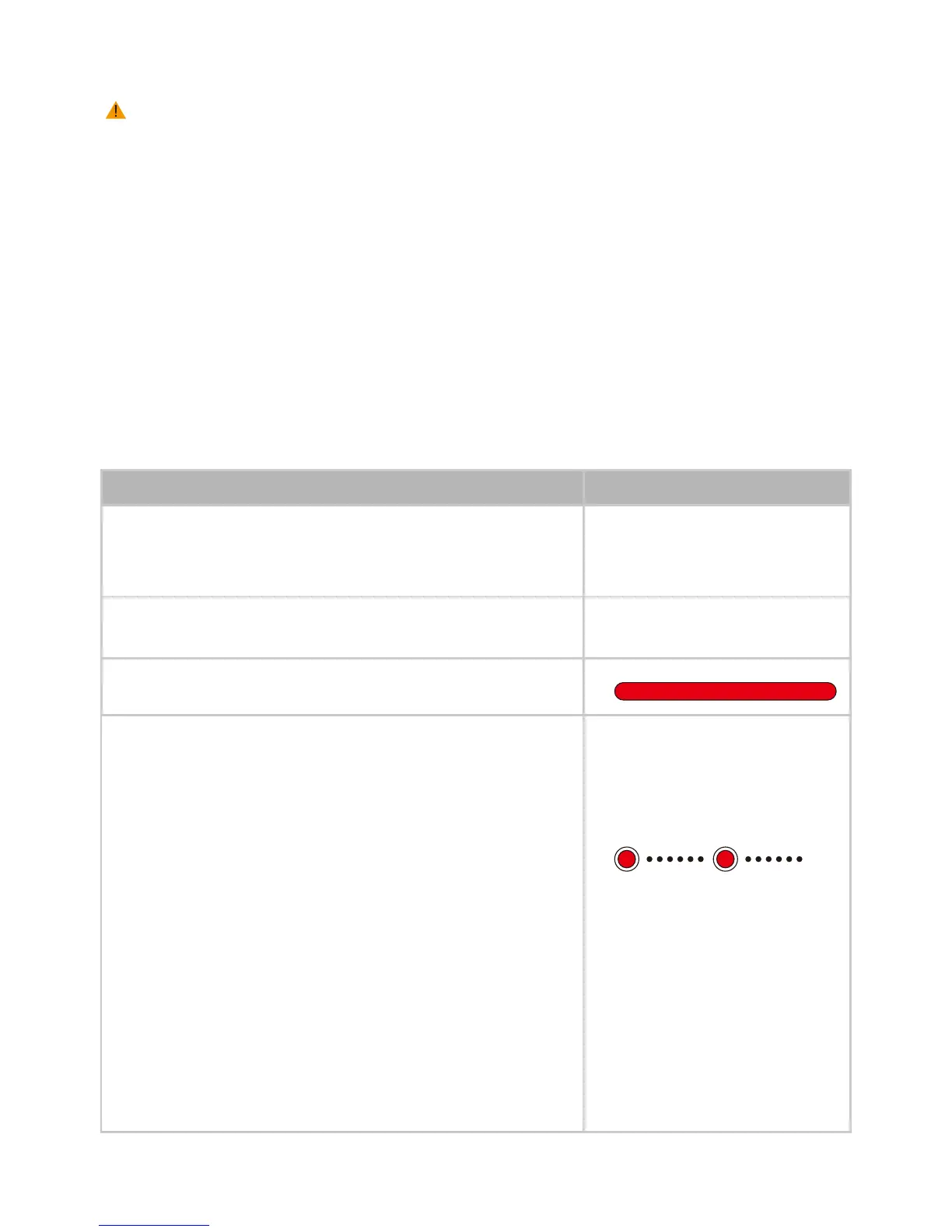

Compass Calibration Process LED indication and chart
Calibration is necessary in below cases:
a. Flying drone for the rst time.
b. 100KM / 60 Miles away from last compass calibration location.
c. The drone has been crashed/dropped by accident.
d. The drone keeps swaying / drifting during ight.
e. Heavy shaking occurred during transportation.
f . RED Light stays on, and motors can’t be armed .
4.3.3 COMPASS CALIBRATION
Note: It is recommend to do a compass calibration in the ying area before you y. Flying within
any magnetic interference is HIGHLY DISCOURAGED and may result in stability issues. (Please
keep far away from High-voltage transmission power lines,Microwave stations Emitting base
stations, metal object, etc.)
