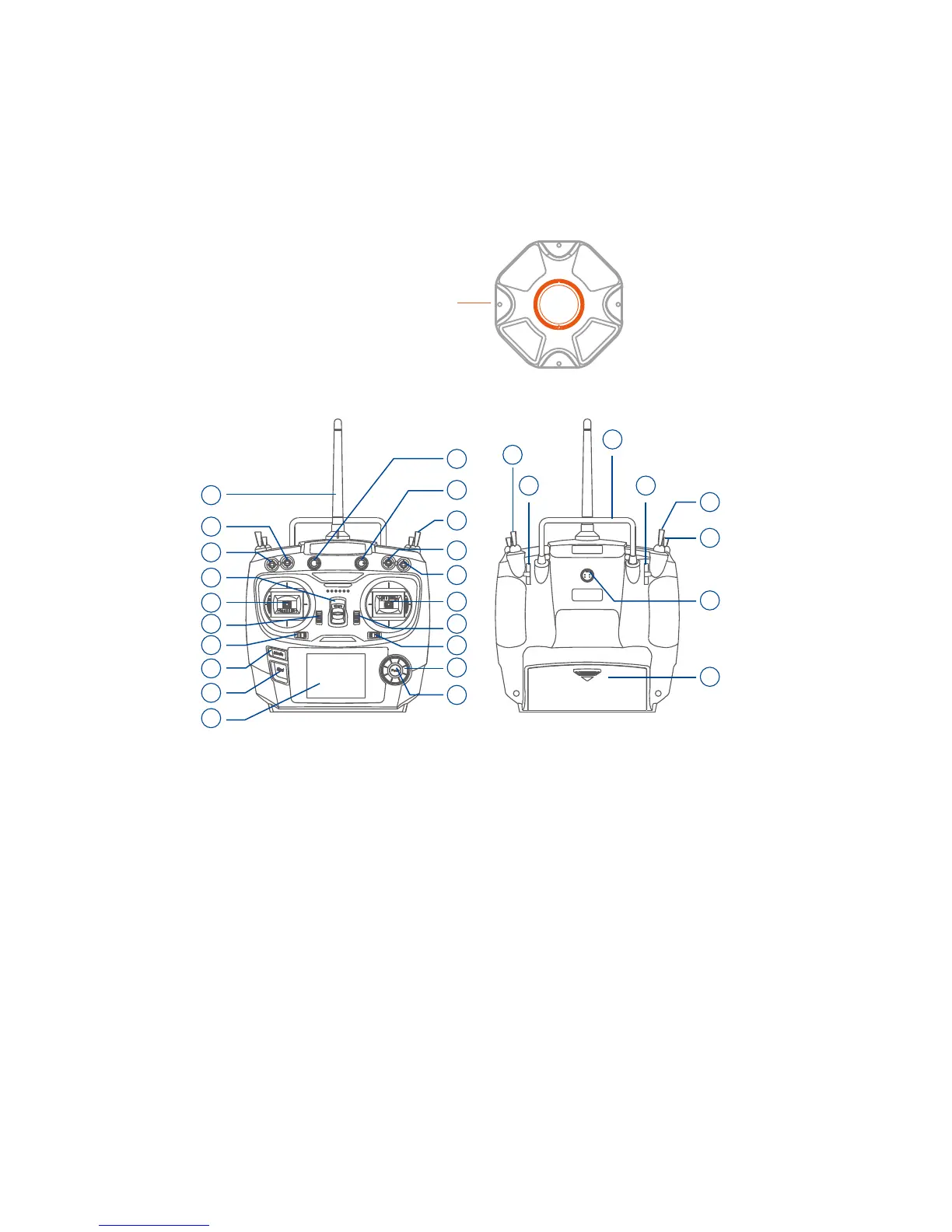

4.1.2 RADIO CONTROLLER CONFIGURATION
1. Hatch Screws
3. Drone Nose (forward facing )
5. Vibration -proof damper ball
7. Removable Landing Gear
9. Rubber cushion foot
11. Nut of Propeller
2. Propeller
4. Navigation Indicator
6. 2-Axis Waterproof Gimbal
8. Watertight plug & play connector
10. Watertight brushless Motor
12. NANO membrane vent cover
01
02
03
05
04
06
07
08
09
10
11
12
13
14
15
17
18
20
21
25
26
19
16
22 24
27
28
23
NANO membrane vent cover
1. Antenna
2. SWB-Return Home
3. SWA-Airdrop
4. Power switch
5. Left Joystick
6. Throttle Sub-trim
7. Yaw Sub-trim
8. Mode/Menu
9. End/Back
10. Display
11. Enter
12. Scooter
13. Left/Right Sub-trim
14. Front/Rear Sub-trim
15. Right Joystick
16. SWD-Camera Control
17. SWC-Flight Mode
18. SWG (NO Function)
19. VRB (NO Function)
20. VRA (NO Function)
21. SWH (NO Function)
22. VRD-Pitch control on Gimbal
23. Handle Shaft
24. VRC-Roll control on Gimbal
25. SWF (NO Function)
26. SWE (NO Function)
27. Trainer
28. Battery cover
Attention: Please take care to not stress the
wire connected to the GPS when opening
the cover and the arrow pointed to the front
when closing the cover!
