58
10.8) ADJUSTING TENSION OF EACH DRIVE BELT
10.8.1) Specification of drive belt tension adjusters (sound wave belt tension)
1) Model : U-305 Series Sound Wave Belt Tension Gauge – Standard
2) Manufacturer : UNITTA

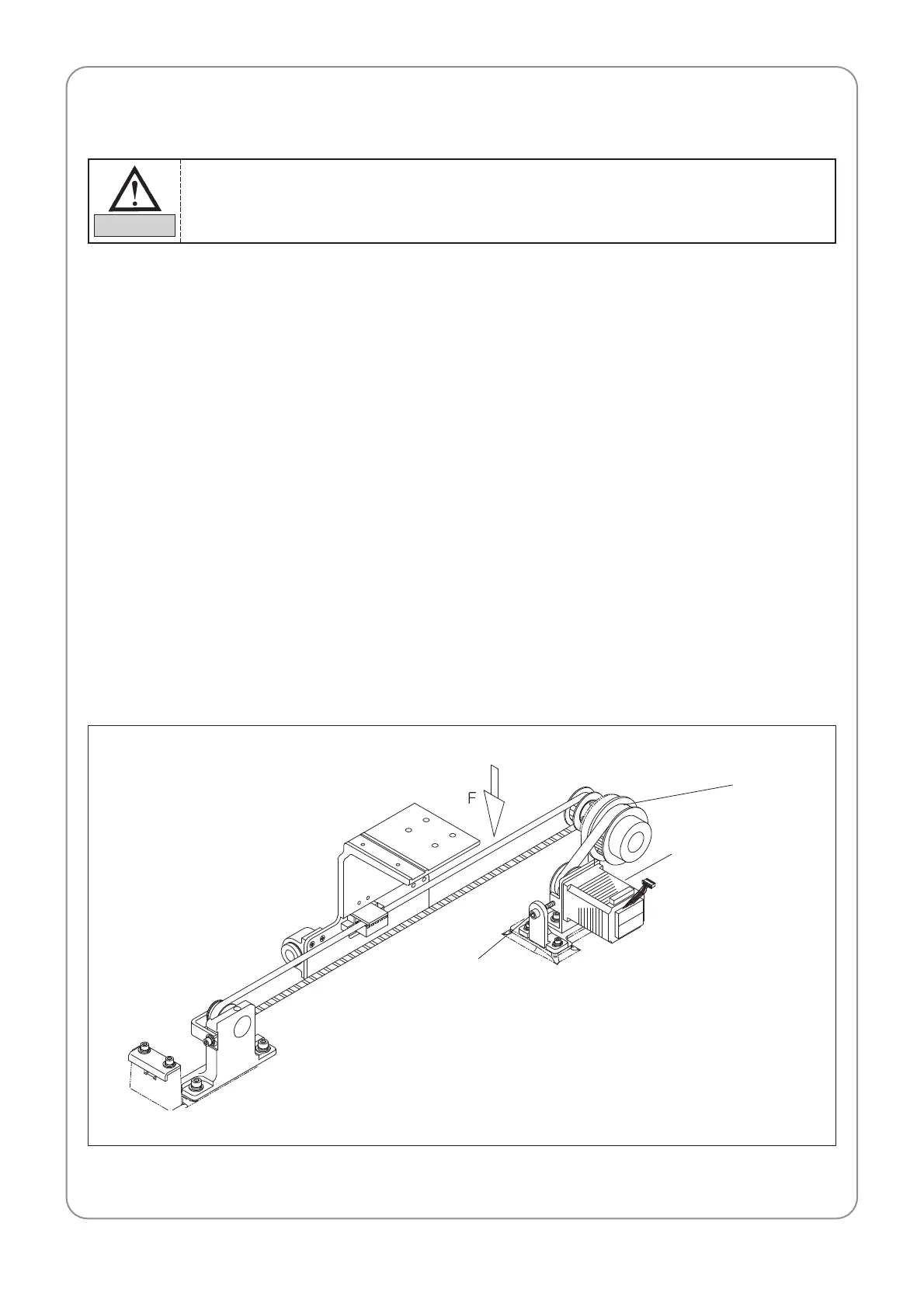

10.8.2) Y-axis timing belt
– Push the X driver to the driven pulley and check the timing belt on the Y-axis. Use the sound wave tension
gauge.
– Tension on the Y-axis timing belt should measure 14-15kgf on the sound wave gauge when you pluck the
middle of the belt between the end of the X driver and the drive pulley with your finger or with a similar
tool.
– Input data for the sound wave tension measurer:
• Weight : 003.8gf/m
• Width : 015.0mm/#R
• Span: 0408mm
– To adjust the Y-axis timing belt tension, unfasten the tension base screw and turn the bolt. Turn clockwise to
increase and counterclockwise to decrease the tension.
Tension
adjusting bolt
1) Drive belt tension, as it affects the embroidery quality and machine operation, should be
adjusted only by trained SWF engineers or skilled experts.
2) Make sure to turn OFF the machine during the adjustment.
CAUTION
Driven pulley
Driving Part
To Next Page
