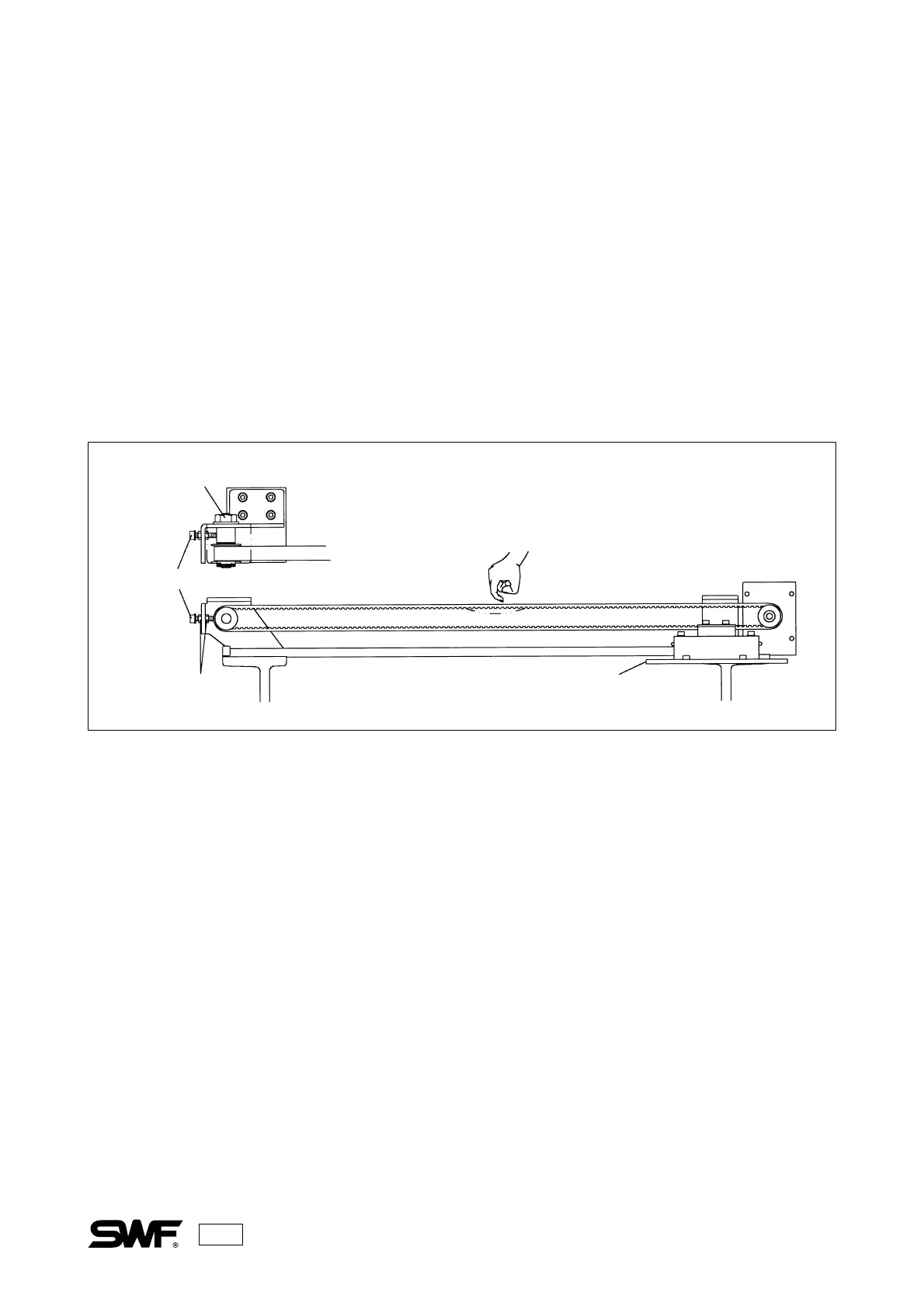

TIMING BELT OF X-AXIS
Move the frame fixing plate on the right side to the end, then use the phonometry belt tension tester. Pluck
the center of the X drive belt with a finger or tool and then adjust the X-axis belt to 10~11kgf. The input data
should be :
Weight : 003.8gf/m
Width : 015.0mm/#R
Span : 0577mm
Release the tension base fixing bolts and turn the tension adjusting bolt to achieve the proper tension.
Turning the bolt clockwise increases the belt tension. Turning it countercolckwise decreases the tension.
X-Frame Fixing Plate
Tension Adjusting Nut
Tension Adjusting Bolt
Adjusting Nut
