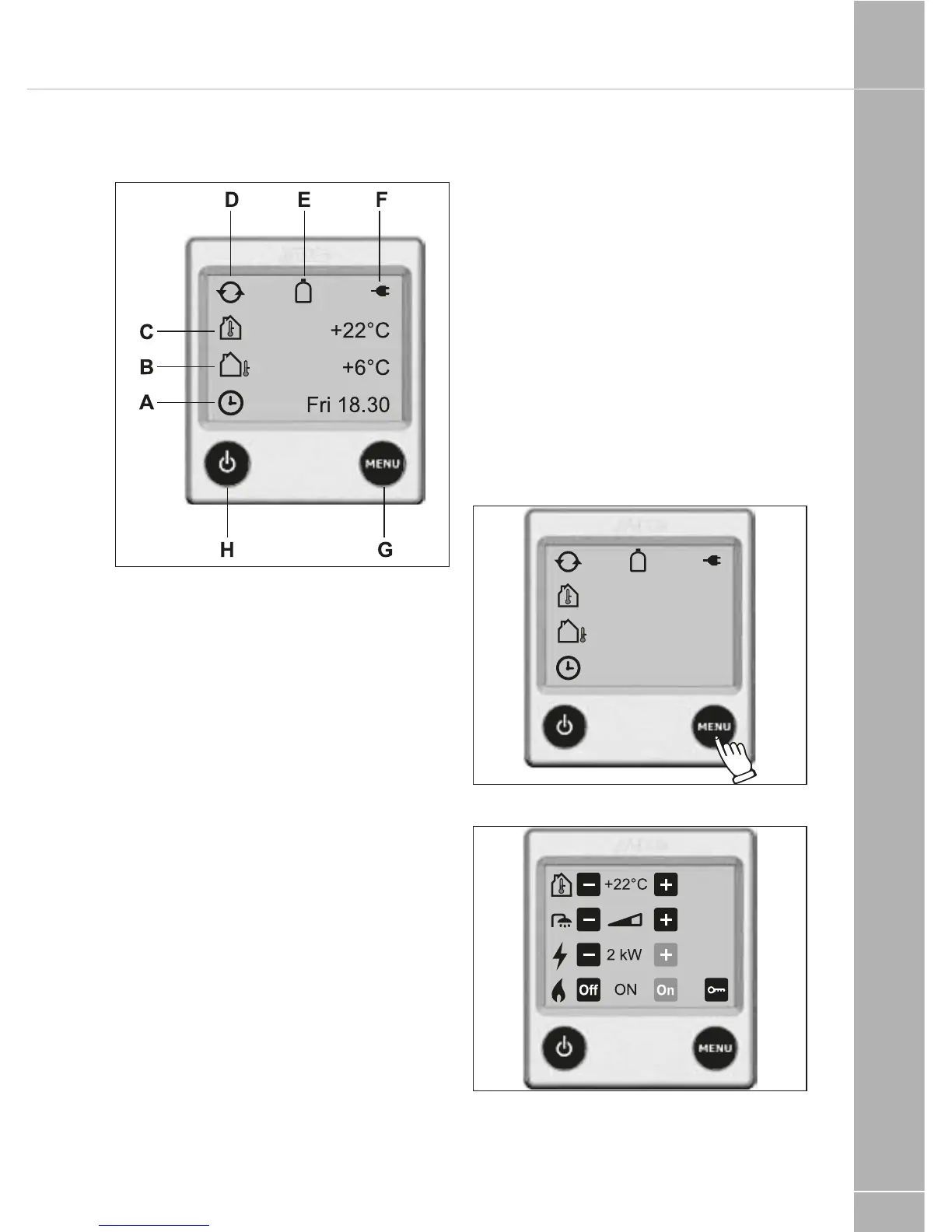

2. The control panel in standby mode
A. Clock
The clock shows day and time. The clock is
set under section 9 point 2.
B. Outdoor temperature
The outdoor temperature is displayed if a
sensor probe is mounted.
C. Indoor temperature
The indoor temperature is displayed
automatically.
D. Circulation pump
This symbol is displayed when the heating
pump is requested.
E. LPG bottle full / empty
This symbol is displayed when the sensor on
the cylinder changeover is connected and
activated in accordance with section 9 point 8.
F. 230 volts
This symbol is displayed when 230V is
connected to the boiler.
G. MENU button
Button for setting menu.
H. On / Off button
Shut down / turn on the boiler.
3. From standby mode to setting menu
When on standby, the indoor temperature is
displayed, and the outdoor temperature is
displayed if an outdoor temperature sensor
has been connected. The background lights
up when you press the screen or the MENU
button. Start the setting menu by pressing
the MENU button. The background lights up
and those functions which can be set are
displayed. The settings are automatically saved
after 10 seconds. The control panel reverts to
standby automatically after 30 seconds if no
buttons are pressed (or if the MENU button in
the setting menu is pressed).
1. The control panel in standby.
+22°C
+6°C
Fri 18.30
2. The control panel in setting menu.
