When ordering replacement parts
* = USE PAINT CODE: TC=TEX.RED,S=SILVER,TK=TEX.BLACK

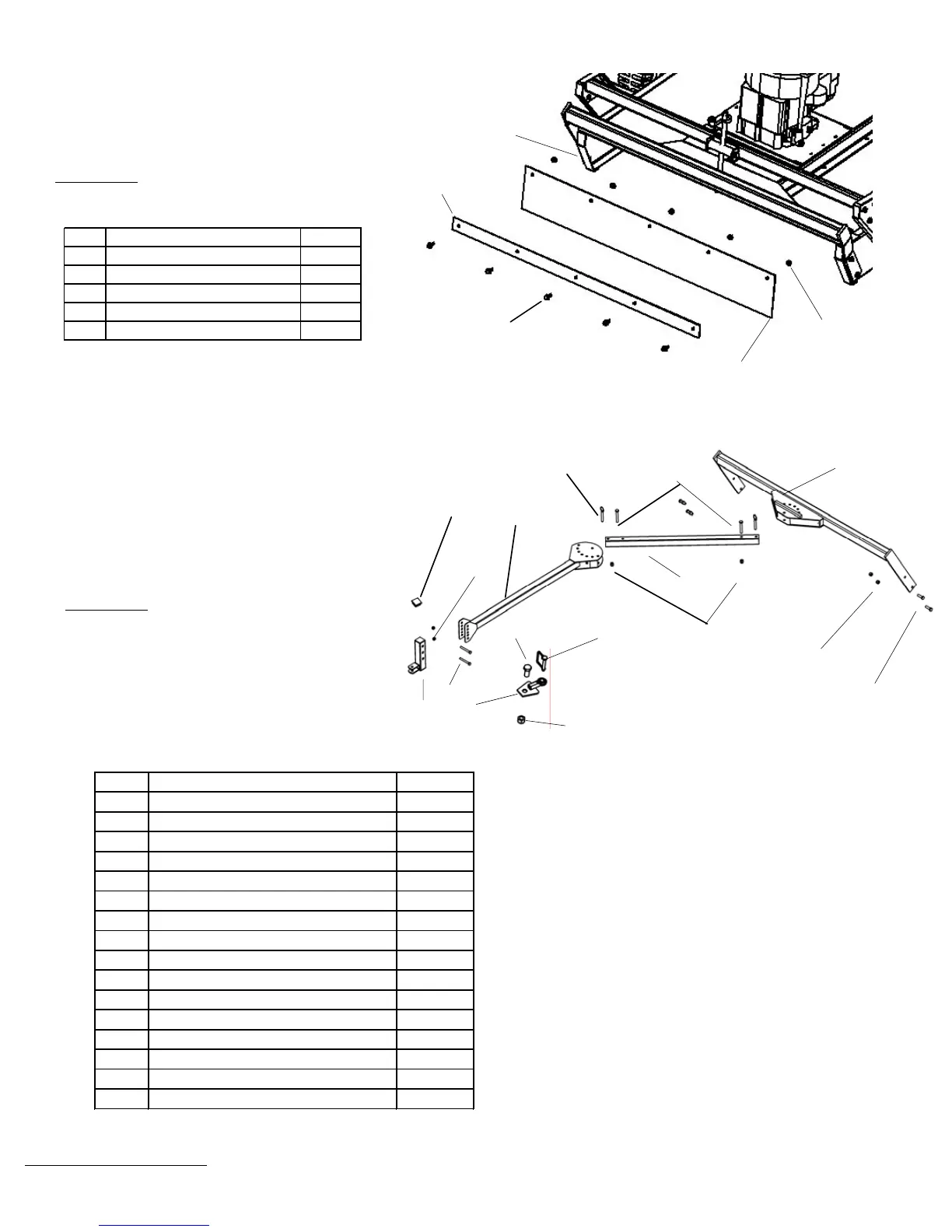

HITCH BAR ASSEMBLY
FIGURE 2
Item # Description Part #
1 5/16-18 X 1 HCC GR5 ZP NB501
2 Metal Strap For Rubber Flap 4853TC
3 Rubber Flapper 10384
4 5/16-18 Nylock Nut NB181
5 Deck Weldment 10357TC
FRONT SKIRT ASSEMBLY
FIGURE 1
1
2
3
4
5
11
12
1
2
3
4
5
6
7
8
9
10
13
Item # Description Part #
1 Hitch Tube 4583TC
2 3/8'' -16 x 3'' GR.5 BOLT NB221
3L-HitchH1TK
4 5/8''-11 X 1-1/2'' Bolt NB145Z
5 5/8''-11 Nylock Nut NB561
6 3/8''-16 Nylock Nut NB182
7 5/16-18 X 2 1/2 HCC GR5 ZP NB138
8 5/16-18 Nyloc Nut NB181
9 Safety Hitch Pin H11
10 Swivel Hitch H10TK
11 Lift Bar Weldment 10369TK
12
3/8-16 X 1 1/4 Grade 5 Hex Bolt
NB618
13
3/8-16 Lock Nut
NB182
14 Cap 10063
15 3/8 Lock Pin NB520
16 Fan Hitch 4582TC
11
14
15
16
To Next Page
