Swisher RTB115441 - Page 12

12

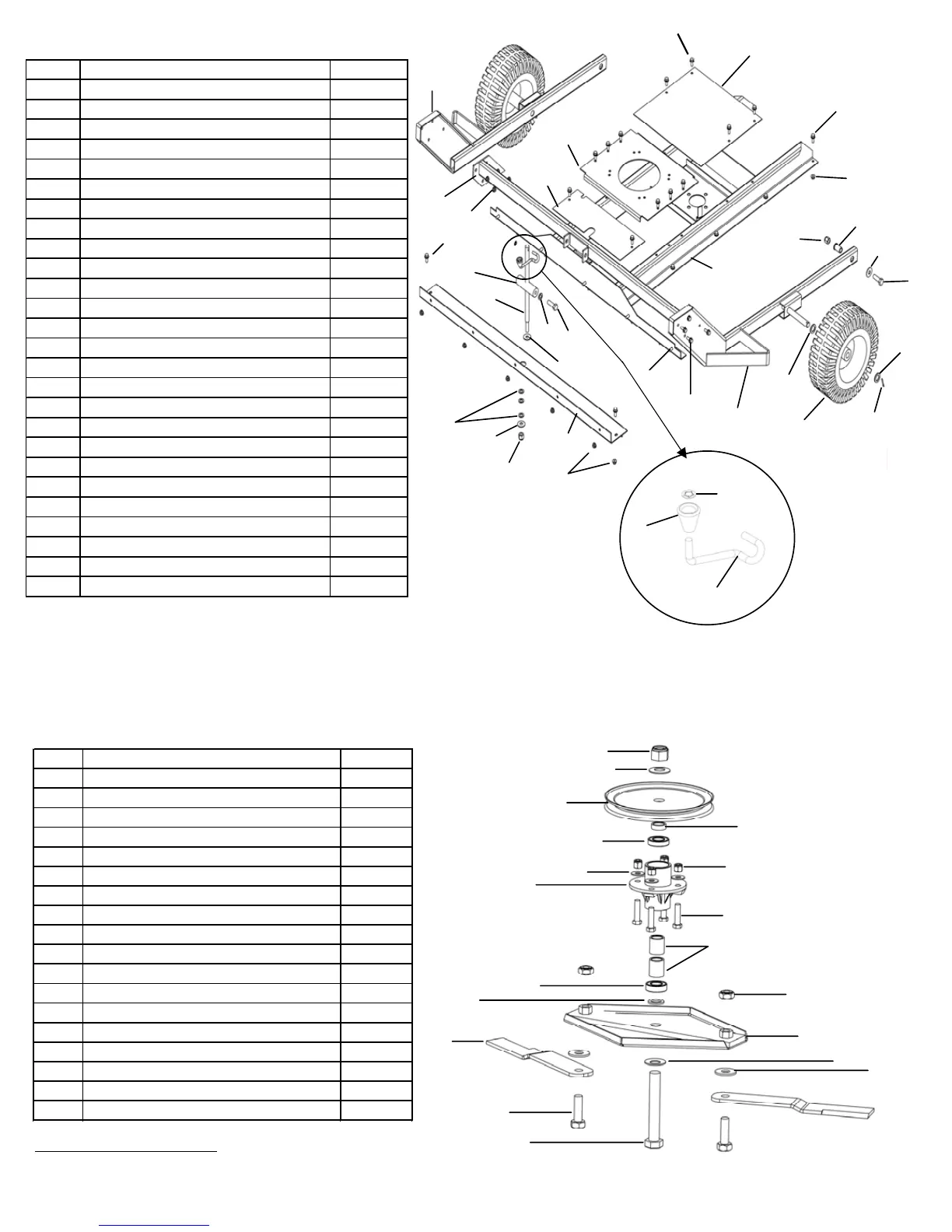

FIGURE 4
BLADE DRIVER ASSEMBLY
FIGURE 5
Item # Description Part #
1 Stump Jumper Weldment 4859TK
2 3/4 '' Washer ZP NB179
3 Blade 10358
4 3/4''-10 X 2 1/2 ''GR8 Bolt NB611
5 3/4-10 Nyloc Nut NB609
6 1"ID X 2"OD X 14GA Bellville Washer NB738
7
1'' X 1 1/2'' 10GA Washer Hardened PLN
NB614HT
8 Blade Bearing 4845
9 Tube Spacer 4049
10 Blade Driver 4858TK
11 1/2''-13 X 2'' HCC GR5 ZP NB509
12 1/2''-13 Nylock Nut NB281
13 Spacer BB105SL
14 Blade Pulley- 10.3125" 4846
15 1''-8 X 7 1/2" GR8 ZP NB601
16 1''-8 Nylock Nut ZP NB612
17 Blade Driver Complete 4872
18 1/2 Flat washer NB555
Item # Description Part #
1 5/16-18 x 3/4 Serr Flg. Bolt NB596
2 5/16-18 x Nylock Nut NB181
3 Wheel, Tire, Bearing 4834
4 Back Cover 10366TK
5 Front Cover 10367TK
6 Motor Base 10343TK
7 Axle Bar Weldment Right 10356TK
8 Axle Bar Weldment Left 10355TK
9 Front Tube Weldment 10342TK
10 Deck Front 10368TC
11 Deck Top Weldment 10353TC
12 Height Adjust Rod 4006
13 Pivot Block 4007TK
14 1/2''-13 X 1 1/2'' HTC GR2 ZP NB588
15 3/4'' ID X 1 1/4'' OD 18 GA Washer NB179
17 1/2''-13 Nylock Nut NB281
18 1/2'' NR Mach Bushing 14 GA NB177
19 SPACER 10290
20 Washer NB149
21 1/8'' x 1'' Cotter Pin NB126
22 Plastic Knob H7K
23 Crank Rod ES214
24 Pal Nut NB276
25 13/16'' X 1 1/4'' X 1/8'' Washer NB195
26 5/16-18 x 1'' Serr. Flng.Bolt 10548
27 3/4'' ID x 1-1/4'' OD Washer NB179
When ordering replacement parts
* = USE PAINT CODE:
TC=TEX.RED,S=SILVER,TK=TEX.BLACK
1
16
6
14
13
8
12
10
11
9
8
5
6
15
4
3
7
18
2
1
2
1
3
4
5
6
8
9
7
10
11
12
13
2
1
1
20
20
18
17
17
20
14
14
19
2
1
15
21
18
22
23
24
25
