Swisher RTB115441 - Page 13

13

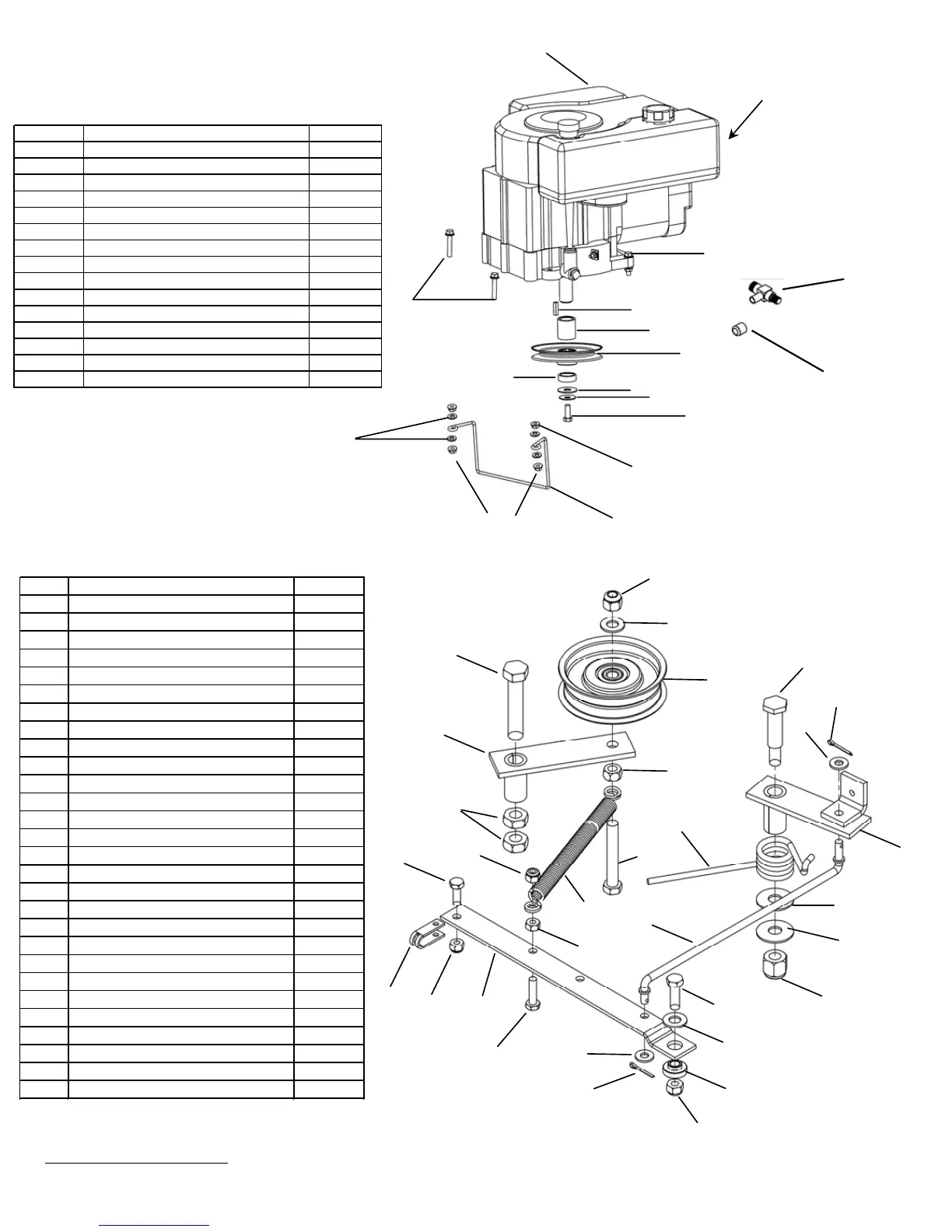

FIGURE 6
ENGINE PULLEY ASSEMBLY
NOT ACTUAL
ENGINE USED
(REF. ONLY)
Item # Description Part #
1 1/2''-13 X 2 1/2'' HCC GR5 ZP NB510
2 Idler Arm 6681TK
3 1/2''-13 2-Way Jam Lock Nut NB121
4 1/4''-20 Nylok Nut NB180
5 1/4''-20 X 3/4'' GR5 ZP NB250
6 Clutch Cable Clevis 9023mod
7 Belt Engage Arm 4898TK
8 1/4''-20 X 1'' HCC GR5 ZP NB102
9 1/4'' SAE Washer NB274
10 5/64'' X 3/4''Cotter Pin NB519
11 5/16''-18 Nyloc Nut NB181
12 Spacer B99S
13 3/8'' Hardened Washer NB196
14 5/16''-18 X 1'' HCC GR5 ZP NB501
15 3/8-16 Nyloc Nut NB182
16 Washer Belleville 699
17 Brake Arm Assembly 4893
20 1/2'' X 1-9/16'' Shoulder Bolt NB220
21 Torsion Brake Spring 9040
22 Brake Rod 4891TK
23 1/4''-20 HX Nut ZP NB139
24 Clutch Rod Spring 682S
25 3/8''-16 X 2 1/2'' HTC GR5 ZP NB619
26 3/8''-16 HNC GR2 ZP NB212
27 Idler Pulley OD-3.25", ID-3/8" B527
28 3/8'' SAE Washer NB272
29 3/8''-16 Nyloc Nut NB182
FIGURE 7
BELT ENGAGE CONFIGURATION
1 Engine B&S N/A
2 5/16-18 Serrated Flange Nut NB170
3
5/16''-18 X 1 1/4'' Serrated Flange Bolt NB253
4 5/16'' USS Flat Washer ZP NB556
5 RT44 Belt Guide 4867
6 Spacer For Engine Pulley BB105S
7 5/16''-18 X 2 1/4 ''Flang Serr. GR5 ZP NB622
8 Engine Pulley- 4.25"OD,1 1/4'' ID BB105
9 1/4'' X 1'' Key Stock 9031
10 Spacer Lower For Engine Pulley BB105SL
11 Washer TR150W
12 Washer Belleville Engine Pulley 699
13 7/16''-20 X 1 HCF GR5 ZP NB452N
14 Oil Drain Valve AS122
15 Oil Drain Cap AS123
16 5/16-18 Nyloc Nut NB181
When ordering replacement parts
* = USE PAINT CODE:
TC=TEX.RED,S=SILVER,TK=TEX.BLACK
14
15
2
3
4
5
6
4
7
8
9
10
11
9
17
16
10
15
14
13
12
20
1
21
22
23
24
25
26
27
28
29
1
7
9
6
8
10
11
12
13
4
2
5
3
13
16
