Swisher RTB115441 - Console Assembly

14
FIGURE 9
P/N B527
P/N 4846
P/N BB105

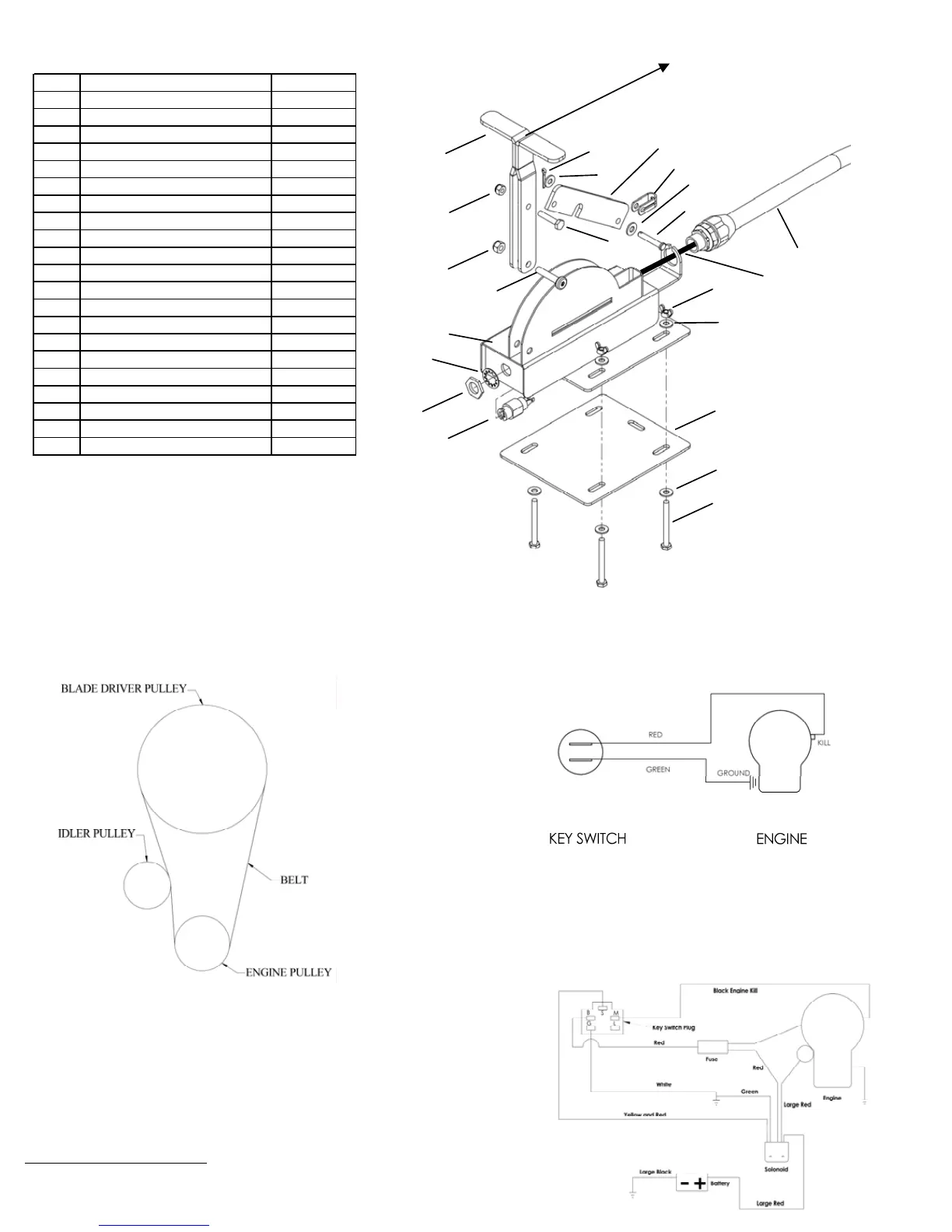

CONSOLE ASSEMBLY
FIGURE 8
1
2
3
4
5
6
7
8
13
12
10
11
10
9
14
15
10
16
10
17
WIRING DIAGRAM ( manual start )
FIGURE 10
P/N BA50
ENGINE TO BLADE PULLEY
CONFIGURATION
18
Item # Description Part #
1 T Handle for Console 4463TK
2 1/4-20 Nylok Nut NB180
3 5/16-18 Nyloc Nut NB181
4 5/16-18 X 1 1/2 Torx Pan ZP NB591
5 Console Weldment 4575TK
6 Key Switch Lock Washer 9088
7 Key Switch Nut 9087
8 Key Switch ON-OFF, 2 Prong KSM
Key Switch ( 12-VOLT ) 3623
9 1/4-20 X 2 1/2 HCC GR2 ZP NB141
10 1/4 SAE Washer NB274
11 Console Mount Plate 4852TK
12 1/4-20 Wing Nut ZP NB608
13 1/4 X 1 1/2 Clevis Pin NB518
14 1/4-20 X 1 1/4 HCC GR5 ZP NB560
15 Clutch Cable Clevis 9023MOD
16 Link for Console 4461TK
17 3/32 X 3/4 Cotter Pin NB597
18
Wiring Harness B&S (RECOIL)
10385
Wiring Harness B&S (12-VOLT)
10299
19 Engage Cable BR20CC
When ordering replacement parts
* = USE PAINT CODE:
TC=TEX.RED,S=SILVER,TK=TEX.BLACK
D
i
s
e
n
g
a
g
e
B
l
a
d
e
s
19
WIRING DIAGRAM ( 12-VOLT )
FIGURE 11
