17 Page
Version 1.3 October 2020
Southern Hemisphere (SOU).
For Southern Hemisphere installations, ignore these (N, S, E, W) and face the solar panel to the North (and in
a sunny position) when it comes to installing the Integrated outdoor transmitter.
Step 1: Install the Integrated outdoor transmitter and face the solar panel North.
In the Southern Hemisphere, there will a permanent wind direction error#180º). Correct this in your
software.

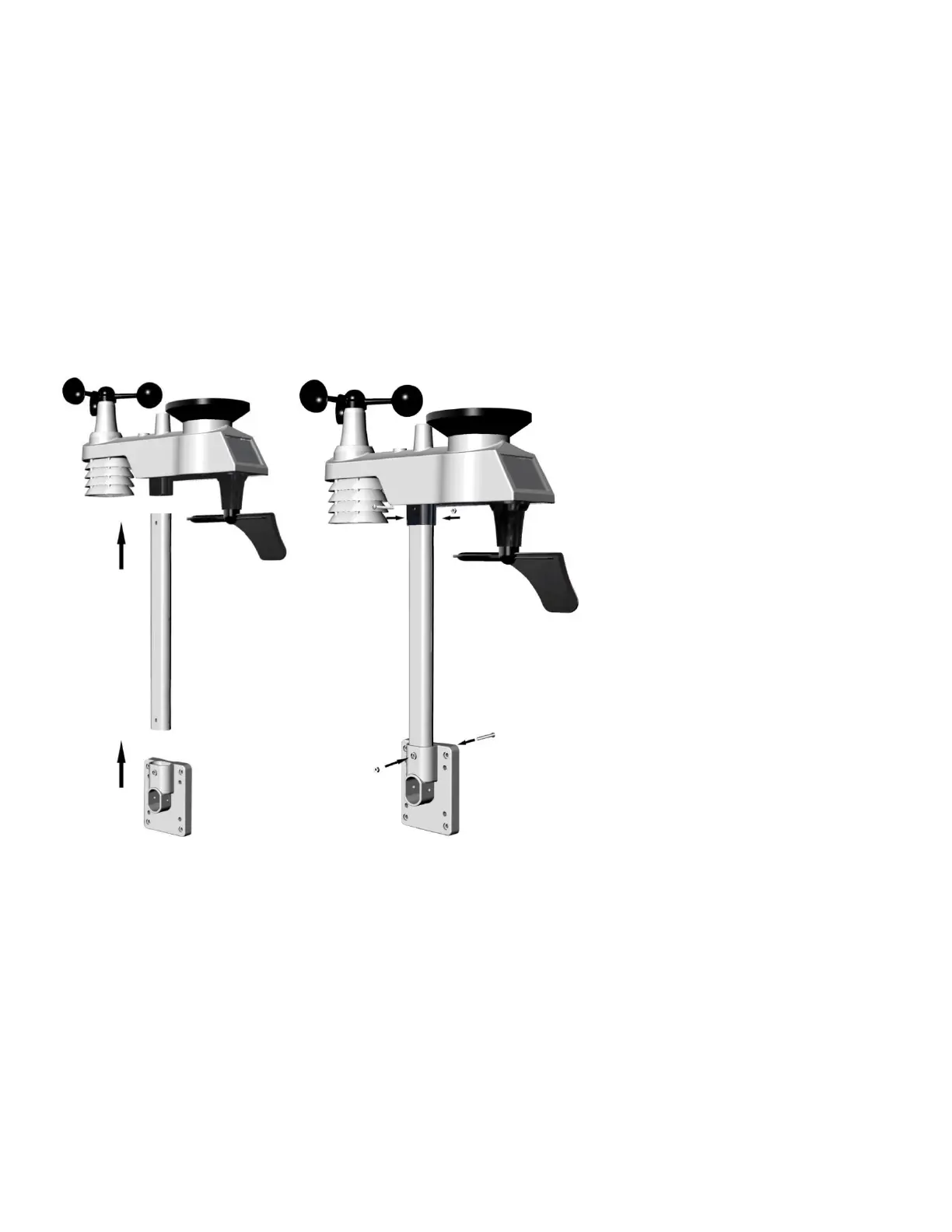

Fasten the integrated transmitter to mounting pole brackets with foot-mounting, two $3 bolts and M3 nuts ,
as shown in Figure 14
Figure 14
Tighten the mounting pole to your existing mounting pole with the four$5 Bolts and M5 Nuts assembly, or fix
on the wall with four tapping screw, as shown in Figure15.
