SwitchDoc Labs WeatherRack2 - Recommended Tools; Sensor Assembly Set up

9 Page
Version 1.3 October 2020
QTY
Item
4
Tapping screws
Figure 1
Recommended Tools
Precision screwdriver (for small Phillips screws)
Compass or GPS (for wind direction calibration)
Adjustable Wrench
Hammer and nail for hanging remote F016TH thermo-hygrometer transmitter.
Sensor Assembly Set Up

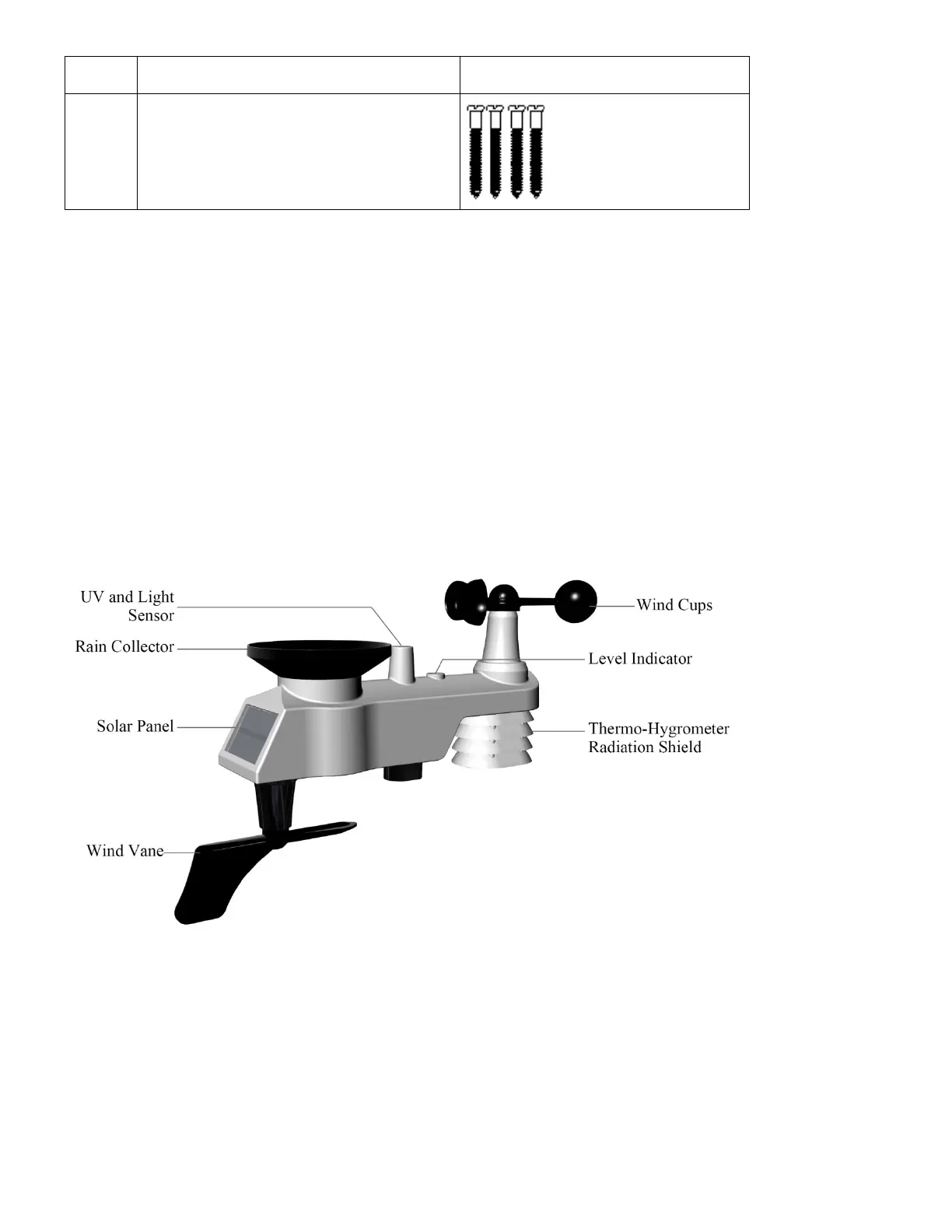

The following illustration shows FT-020T Sensor Array
Figure 2
3.3.1 Insert batteries into the transmitter. Locate the battery door on the transmitter, push and open the
battery compartment, as show in Figure 3.
