ARC Inverter Instruction Manual
Main Parameters
ARC120 ARC140 DV ARC160 ARC200B
Fuse Rating 13 amp
110 volt 15 amps
240 volt 13 amps
16 amps 20 amps
Generator
Friendly
+ / − 15% + / − 15% + / − 10% + / − 10%
Input Power
Voltage
AC 230 volt
(single phase)
110 / 230 volt
(single Phase)
AC 230 volt
(single phase)
AC 230 volt
(single phase)
Rate Input
Power Capacity
3.8 KVA 4.4 KVA 5.3 KVA 7 KVA
Input Voltage
Frequency
50 / 60 Hz 50 / 60 Hz 50 / 60 Hz 50 / 60 Hz
Output Current
Range
10 − 120 amps 10 − 140 amps 20 − 160 amps 20 − 200 amps
Duty Cycle
(25°C)
120 amps @ 60%
110 volt 100 amps @ 100%
240 volt 140 amps @ 60%
155 amps @ 60% 200 amps @ 60%
Weight 5 kg 6.4 kg 8 kg 10 kg
Overall
Dimensions
230 x 120 x 170 mm 290 x 132 x 216 mm 371 x 155 x 295 mm 425 x 205 x 355 mm
Protection
Class
Ip23 Ip23 Ip23 Ip23
Diameter
of Rod
1.6 mm − 3.2 mm 1.6 mm − 3.2 mm 1.6 mm − 4.0 mm 1.6 mm − 5.0 mm

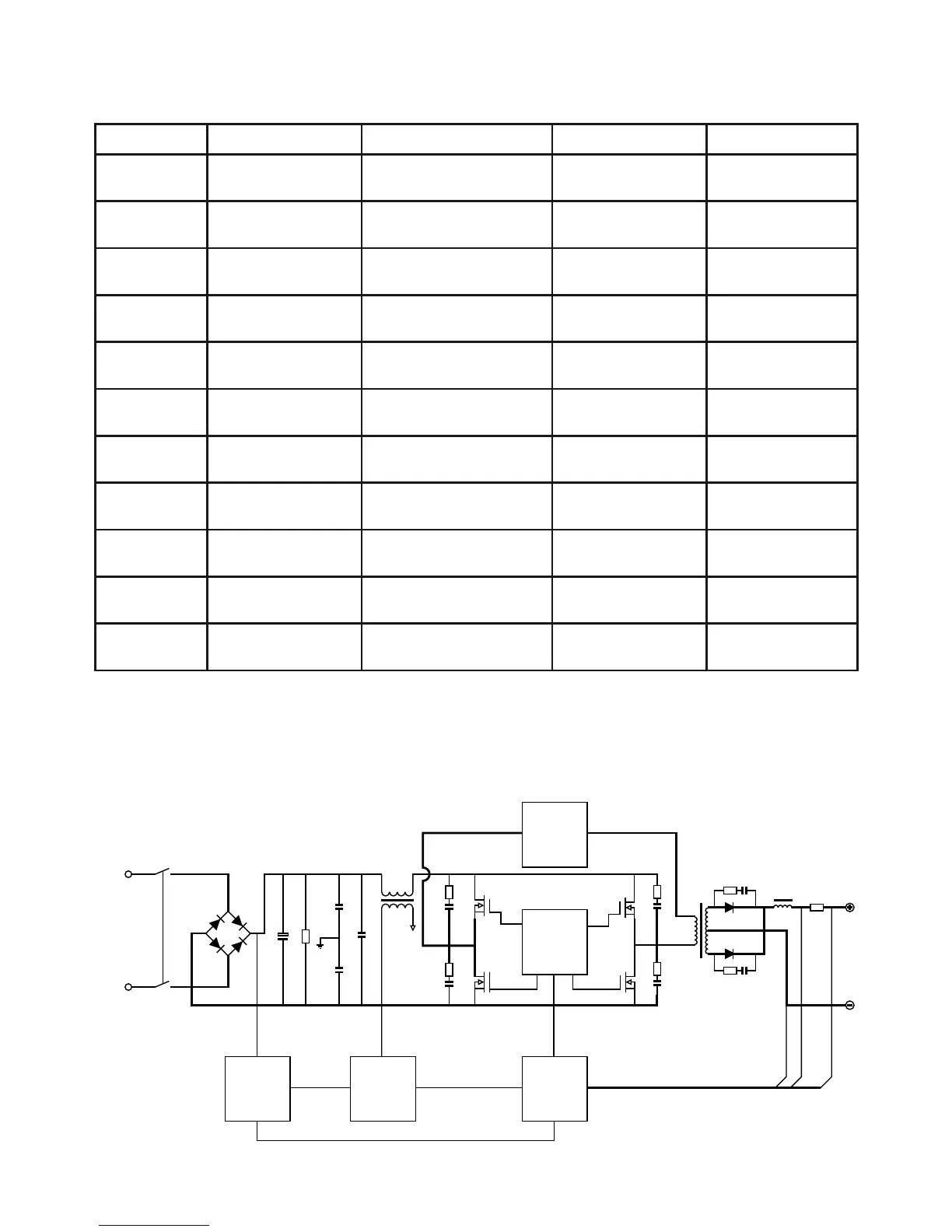

Circuit Diagram (single phase input)
MAIN SWITCH
FEEDBACK
POWER
SUPPLY
PROTECT
CIRCUIT
CONTROL
MODULE
DRIVE
MODULE
SNUBBER
CIRCUIT
AC 220 volt
