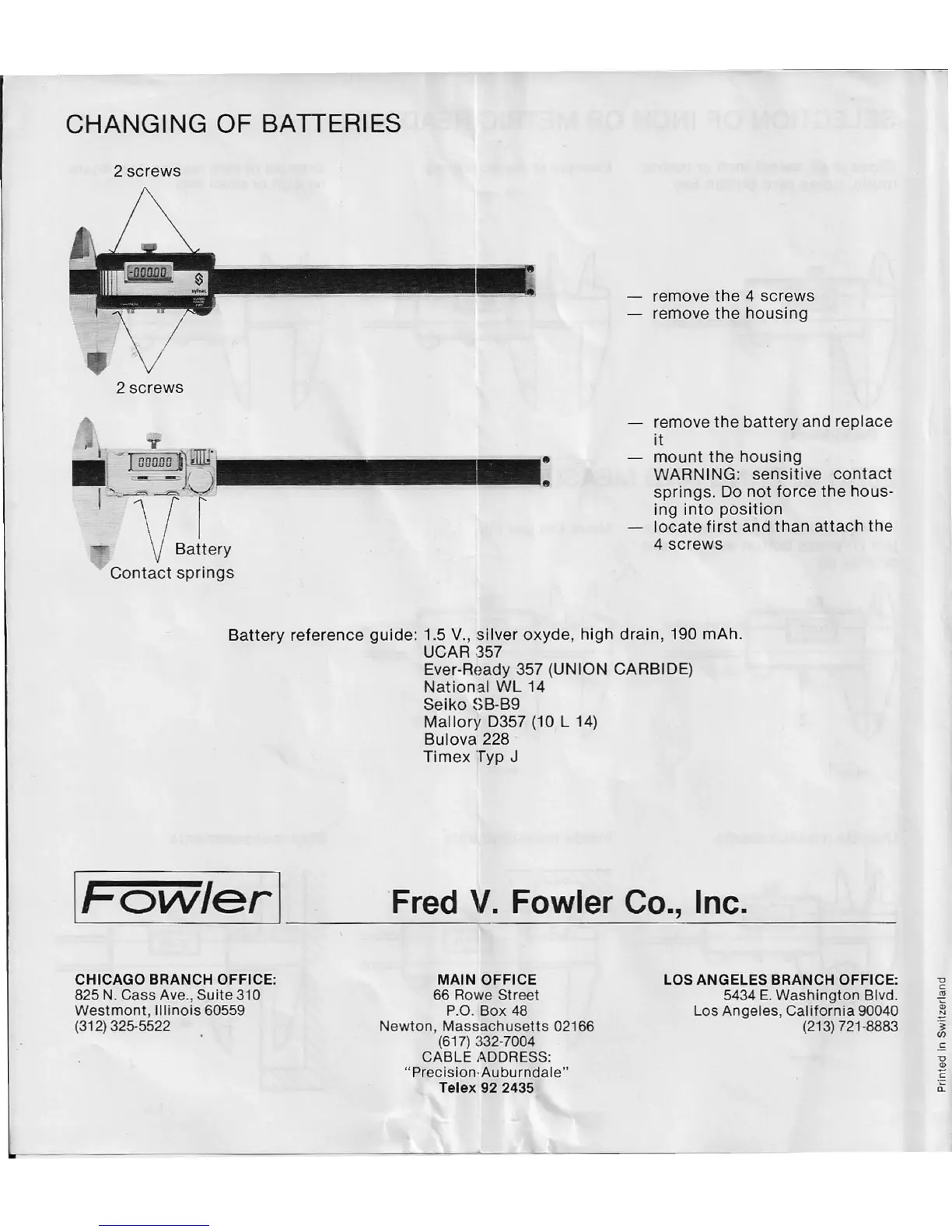

CHANGING OF BATTERIES
2 screws
remove the 4 screws
remove the housing
2 screws
y
-I
:DDO
~-;UU.
l ~(\
I~---da~-~
VJery
Contact springs
•
remove the battery and replace
it
mount the housing
WARNING: sensitive contact
springs. Do not force the hous-
ing into position
locate first and than attach the
4 screws
It
Battery reference guide: 1.5 V., silver oxyde, high drain, 190 mAh.
UCAR 357
Ever-Ready 357 (UNION CARBIDE)
National WL 14
Seiko SB-B9
Mallory 0357 (10 L 14)
Bulova 228
Timex Typ
J
IF
owler
1
F_r_e_d_V_" _F_o_w_le_r_C_o---'",_I_"_c" _
CHICAGO BRANCH OFFICE:
825 N. Cass Ave., Suite 31 0
Westmont, Illinois 60559
(312) 325-5522
MAIN OFFICE
66 Rowe Street
P.O. Box 48
Newton, Massachusetts 02166
(617) 332-7004
CABLE ADDRESS:
" Precision· Auburndale"
Telex 92 2435
LOS ANGELES BRANCH OFFICE:
5434 E. Washington Blvd.
Los Angeles, California 90040
(213) 721-8883
