Sylvania SDVD7002 - Main Unit Controls; System Connection; Powering and Installation

54
OFF/ON
DC IN 9-12V
AV OUT
OFF/ON
DC IN 9-12V
AV OUT

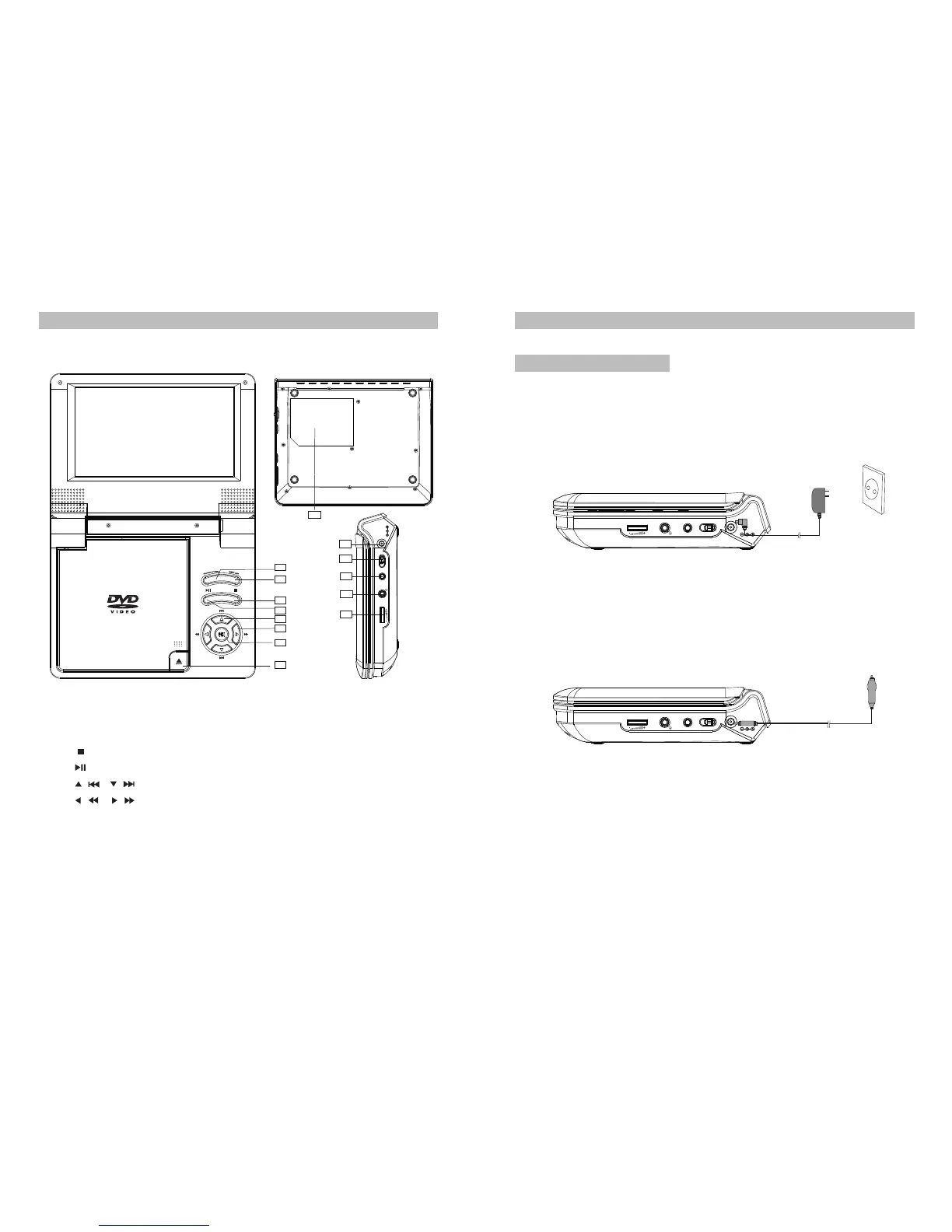

Powering and installation
Plug one end of the AC/DC power adaptor into the DC IN9-12V jack on the right of
the machine, then plug the other end into the AC power receptacle.
Please refer to the following illustration.
If using car cigarette lighter adaptor to connect to the power: Plug one end of the
cigarette lighter adaptor into the DC IN 9-12V jack on the unit, plug the other end
into the car cigarette lighter socket. See illustration below.
Note：
※ Car cigarette lighter adaptor is available to use only when the car cigarette
lighter with DC 12V negative grounding.
※ The mains plug is used as the disconnect device, the disconnect device
should remain readily operable.
System Connection
Main Unit Controls
PUSH
1
2
3
5
4
6
7
8
9
10
11
12
13
1.FUNCTION Button
2.SETUP Button
3. STOP Button
4. PLAY/PAUSE Button
5. ( ), ( ) BUTTON
7.OK BUTTON
8.OPEN
9.DC IN 9-12V
10.POWER ON/OFF SWITCH
11.AV OUT
12.HEADPHONE
13.VOLUME
14.Rating Label Position
OFF/ON
DC IN 9-12V
AV OUT
14
6. ( ), ( ) BUTTON
