3. LUBRICATION SYSTEM SYM
3-6

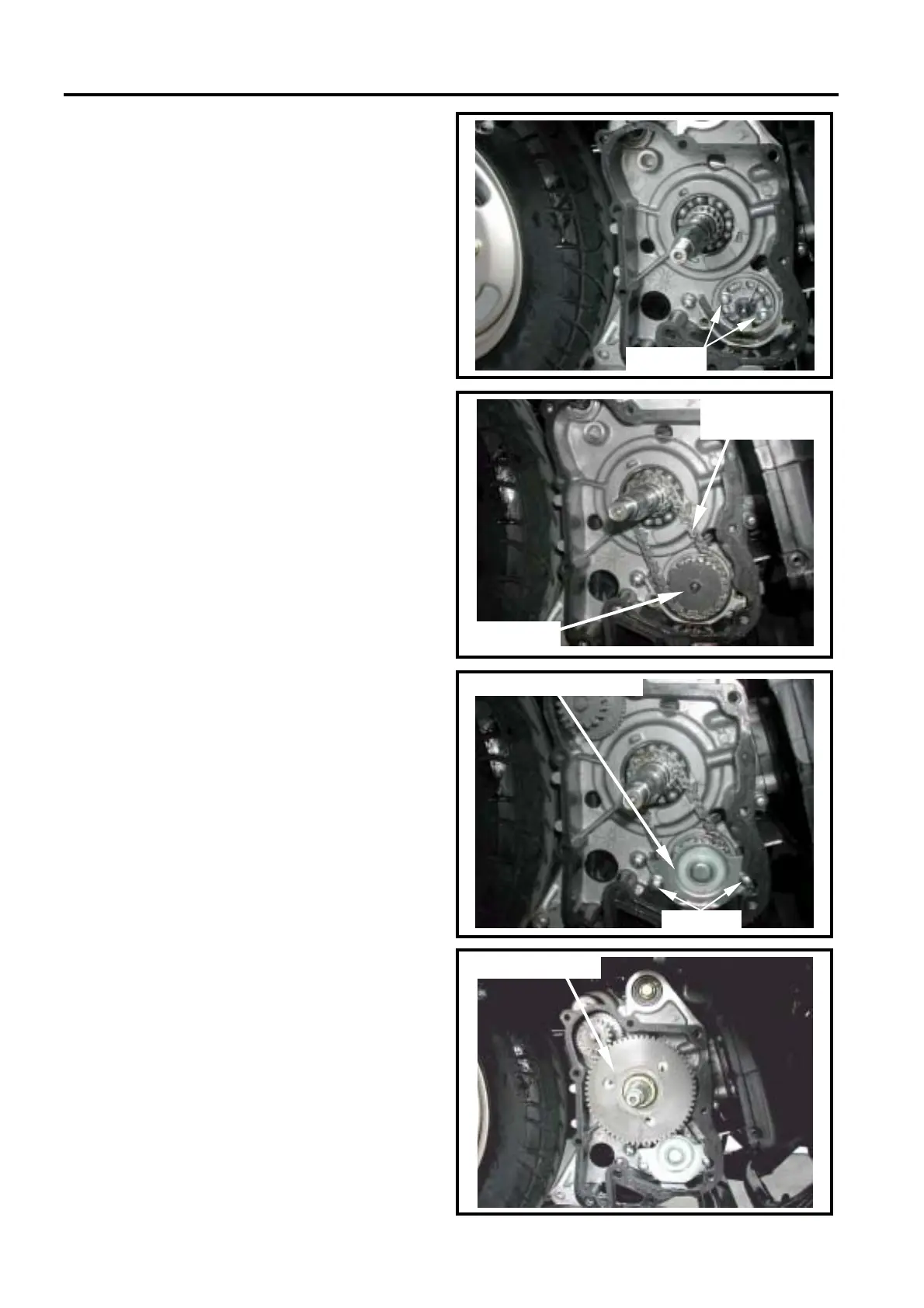

Oil Pump Installation
Install the oil pump (2 bolts).
Install oil pump driver chain and drive gear.
Install oil pump outer cover (2 bolts).
Install the starting gear and the alternator.
(Refer to chapter 10)
2 bolts
2 bolts
oil pump driver
chain
drive gear
oil
p
um
p
outer cover
Start drive gear
