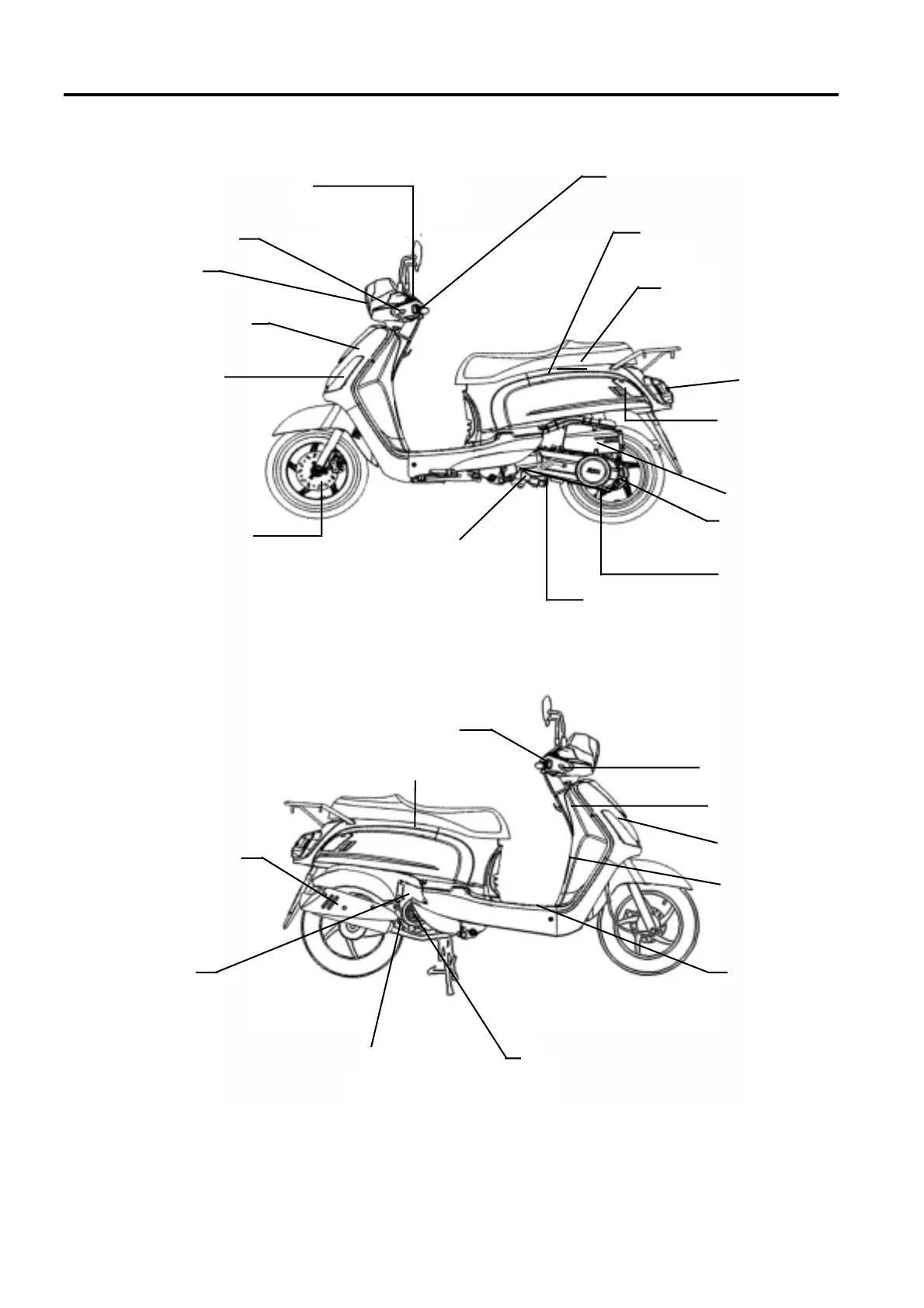

MECHANISM ILLUSTRATIONS SYM
Light/starter switch
Front disk brake
Exhaust muffler
Ignition switch
Gea
r
oil
draining bolt
Battery/Fuse/
CDI
Front brake lever
Rea
r
brake leve
r
Air cleaner
Gea
r
oil filling
bolt
Oil level
Tail light
Front turn
signal light
Fuel tank / Fuel unit
High& Low beam/Seat
open/turn signal/horn
Head light/
Position light
Engine oil
draining bolt
Ignition coil
Frame number
Meter
A.C. Generator
Start magnetic switch
Horn/REG.REC
RR. turning
signal light
Winker relay
Engine control switch
Engine number
