7. USE OF EACH COMPONENT
(The following is SYM 4 stroke liquid cooling scooter’s basic operation, and they could vary from different
individual models. Please consult the end of this manual.)
Gauges
• INFORMATION OF THE GAUGE BOTTON
1. ALARM : Switch “ time mode” or enter / cancel “ alarm mode”.
2. HORN : time( hour) setting.
3. MIN : time( minute) setting.
4. TOTAL/TRIP : switch between total kilometer and trip kilometer.
5. TRIP RESET : clear the trip kilometer.
• High Beam Indicator( blue)：This indicator comes on with high beam headlight is turned on.
• Turn Signal Indicator(green)：The left or right Indicator will be flashing according to the operated
directions of turn signal light switch when it is turned on.
• Fuel Gauge：
The fuel gauge doesn’t come on when the main switch is at “OFF” position.
When key switch is turned to “ON”, and the “pointer” indicates above “E” position, it shows how much
fuel in the tank, and also the fuel indicator light keeps coming on. When the “pointer” is below “E”
position, the fuel indicator flashes, and the fuel warning indicator(orange) will come on. It means there is
only approximately 1.72 liter of fuel left in the tank. Refuel octane 92/95/98 unleaded gasoline
immediately.
CAUTION :
• Before battery installation, please do not use the kick starter to start the engine, in prevention
• Not to have trouble on electrical meter working, or damage the electrical meter.
• Do not wipe plastic components, e.g. instrument panel, headlight, with organic solvents such
• As gasoline…etc. to avoid damaging these components.

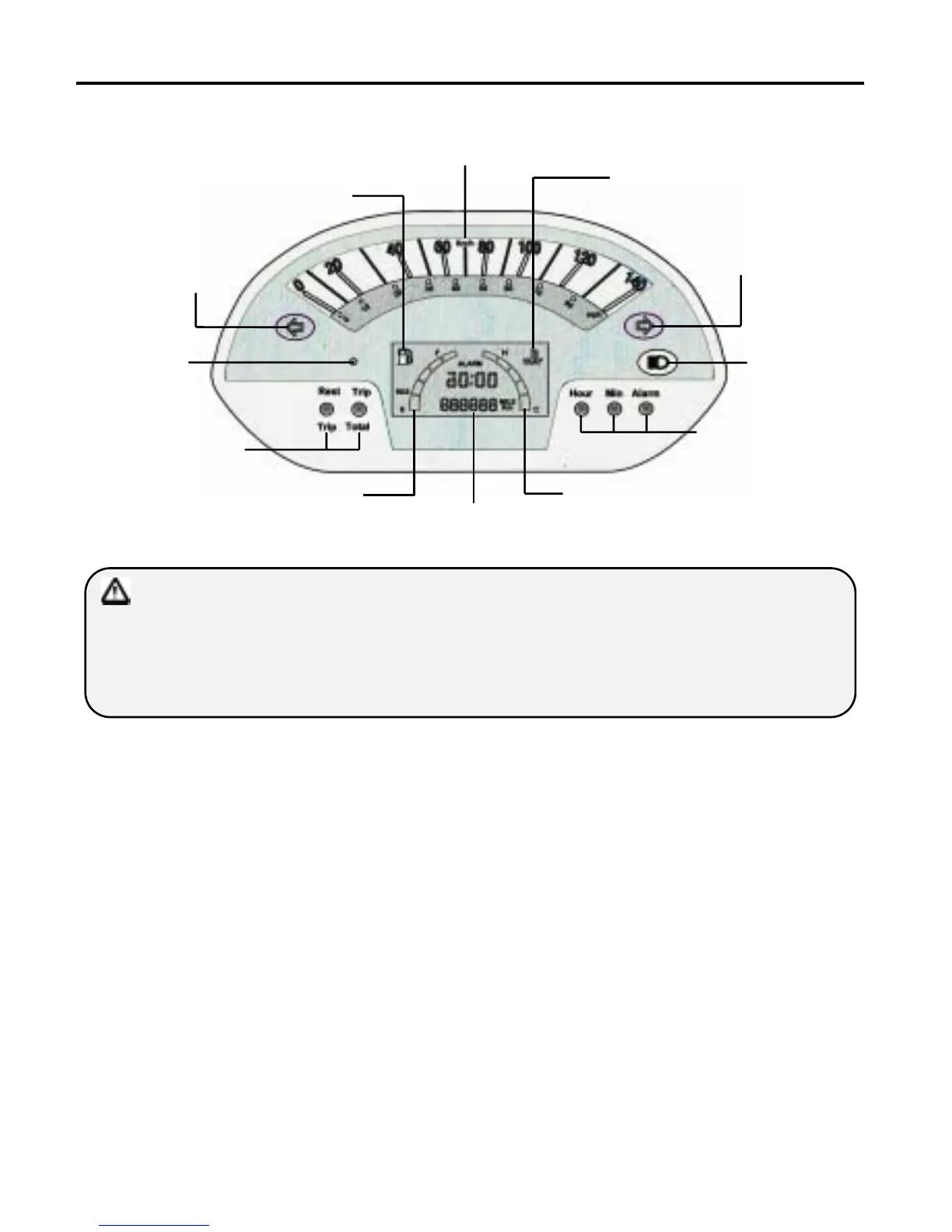

Water temperature gauge
High Beam
Indicator
Fuel Gauge
Turn Signal Indicator
Turn Signal Indicator
Water temperature
Indicator
Odometer
Fuel Warning
Indicator
