7. USE OF EACH COMPONENT
(The following is SYM 4 stroke Air cooled 150c.c. scooter’s basic operation, and they could
vary from different individual models. Please consult the end of this manual.)
§ GAUGES §
The panel figure for speedometer may vary from model to model, but the location usually are the same.
CAUTION:
Do not wipe plastic components, e.g. instrument panel, headlight, with organic solvents such as
gasoline…etc to avoid damaging these components.
 Speedometer：
Indicates driving speed.
 ODO: Shows the total distance by vehicle.
This value cannot delete the zeros.
Display range: 0 ~ 99999 km (Display volume over 99999, return to zero).
 TRIP: Displays the distance on a journey
Display range: 0.0 ~ 999.9 km (Display volume over 999.9, return to zero).
Delete: Under TRIP mode, long press “SET” to clear TRIP mileage value.
 OIL: Displays distance in the measuring mode the engine oil change itinerary.
Display range: 0.0 ~ 9999.9 km (Display volume over 9999.9, return to zero).
Delete: Under OIL mode, to push “SET" two times to let OIL return to zero.
 High Beam Indicator：
This indicator comes on with high beam headlight is turned on.
 Turn (left/ right) Signal Indicator：
The left or right Indicator will be flashing according to the operated directions of turn signal light
switch when it is turned on.

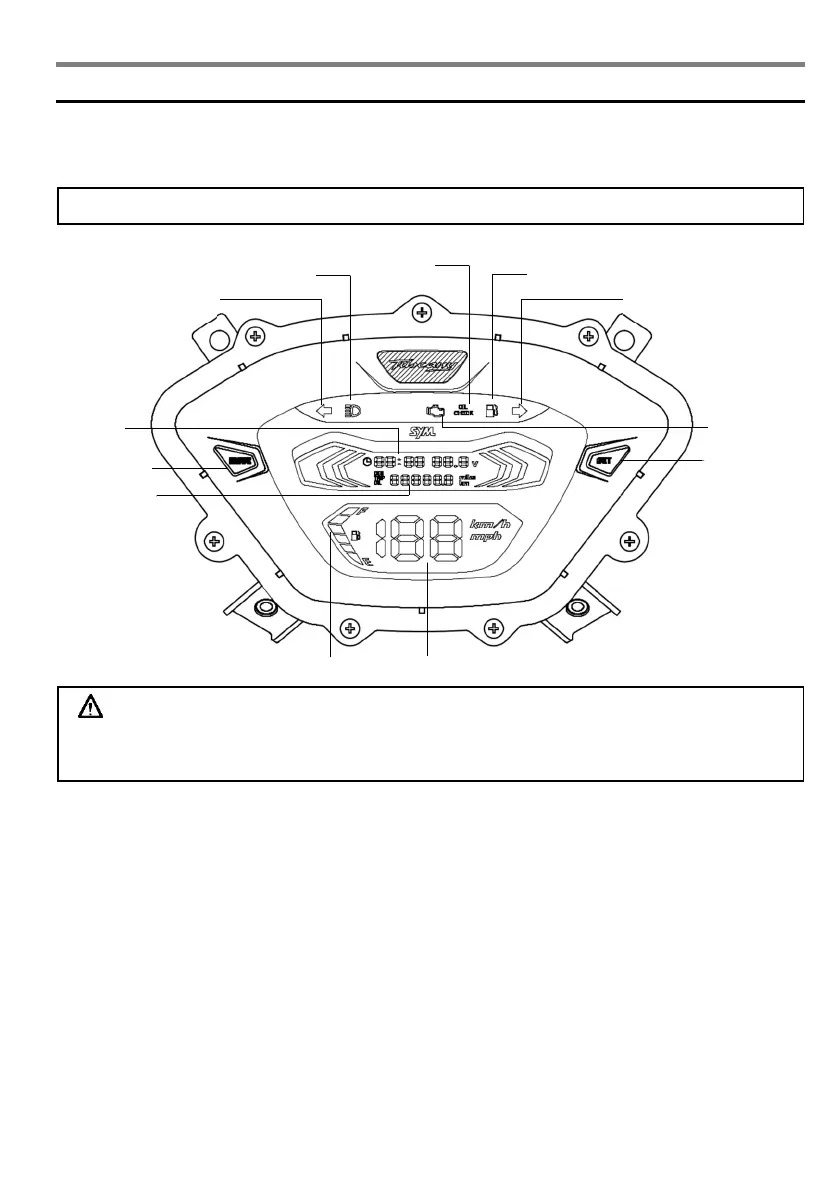

Turn righ
t signal
indicator
Fuel meter
Low fuel load
warning light
Turn left signal
indicator
Engine oil replacement
warning
light
High beam
indicator
Voltmeter/
Time
ODO/TRIP/OIL
“
M
ODE”
button
“
S
ET”
button
EFI indicator
Speedometer
