15254-201.docx
16
Rev. C, 07/12/2011
Options
Introduction
There are two optional configurations for the 8040C/8040CLN, the Twelve Output option
and the Low Phase Noise option. The additional outputs require an additional circuit card
that provides six configurable outputs that are set up the same as in the standard unit.
The Low Phase Noise option can be purchased with either the standard six outputs or
with the optional twelve outputs.
Twelve Output Option
With the Twelve Output option, the six additional outputs on channels 7 through 12 come
pre-configured the same as channels 1 through 6 in the standard configuration. They
can be reprogrammed as described in Configuring Outputs (page 9).

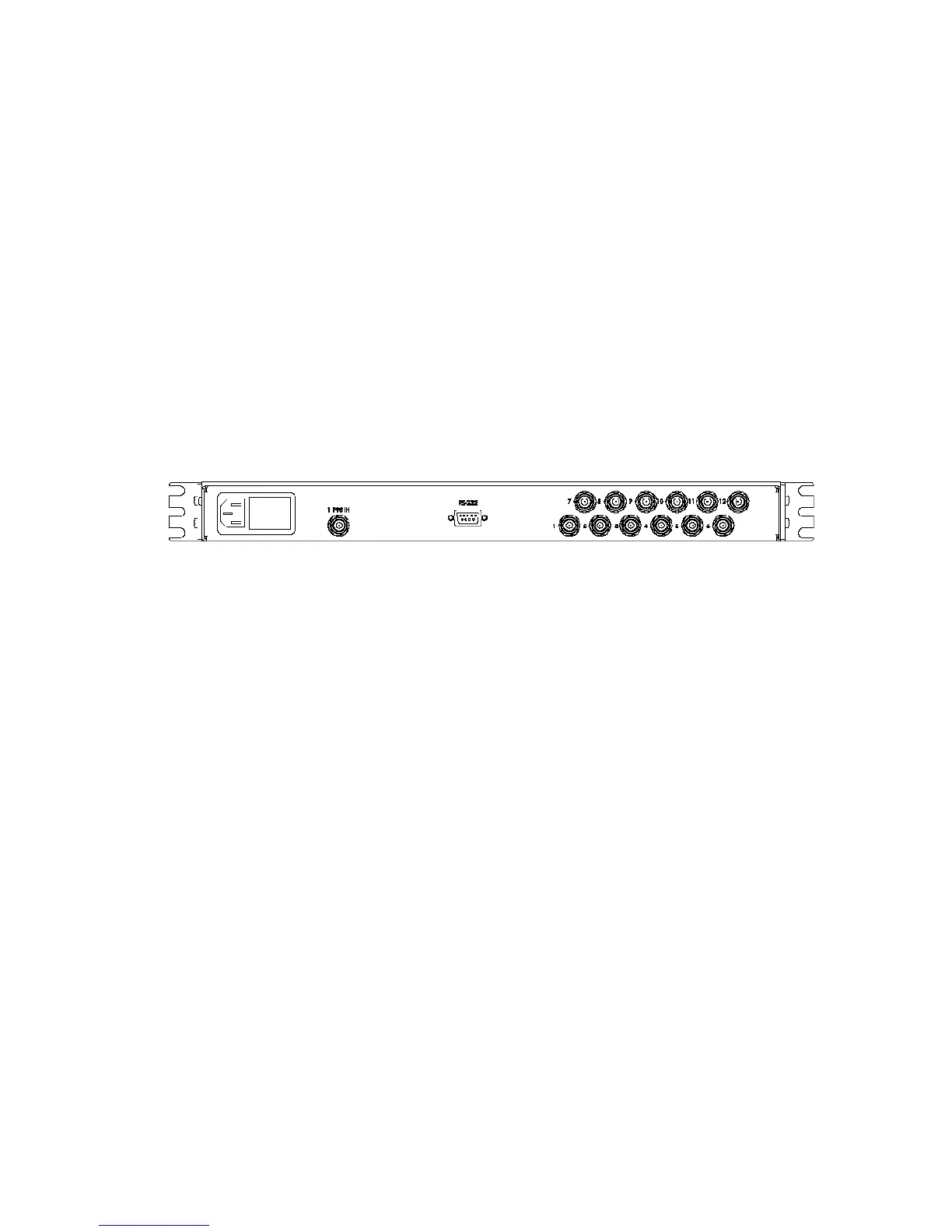

Figure 6: Back Panel of 8040C/8040CLN with the Twelve Output Option
Table 10: Output Connections
BNC Signal
7 10 MHz Sine wave
8 10 MHz Sine wave
9 10 MHz Sine wave
10 5 MHz Sine wave
11 1 MHz Sine wave
12 1 PPS
1-6 Standard Configuration
Low Phase Noise Option
The Low Phase Noise option does not require different operator instructions. This option
provides improved phase noise specifications as described in specifications section of
this manual.
