Symmons 2DIVBODYSRT - Parts and Tools; Parts Breakdown; Tools Required

2

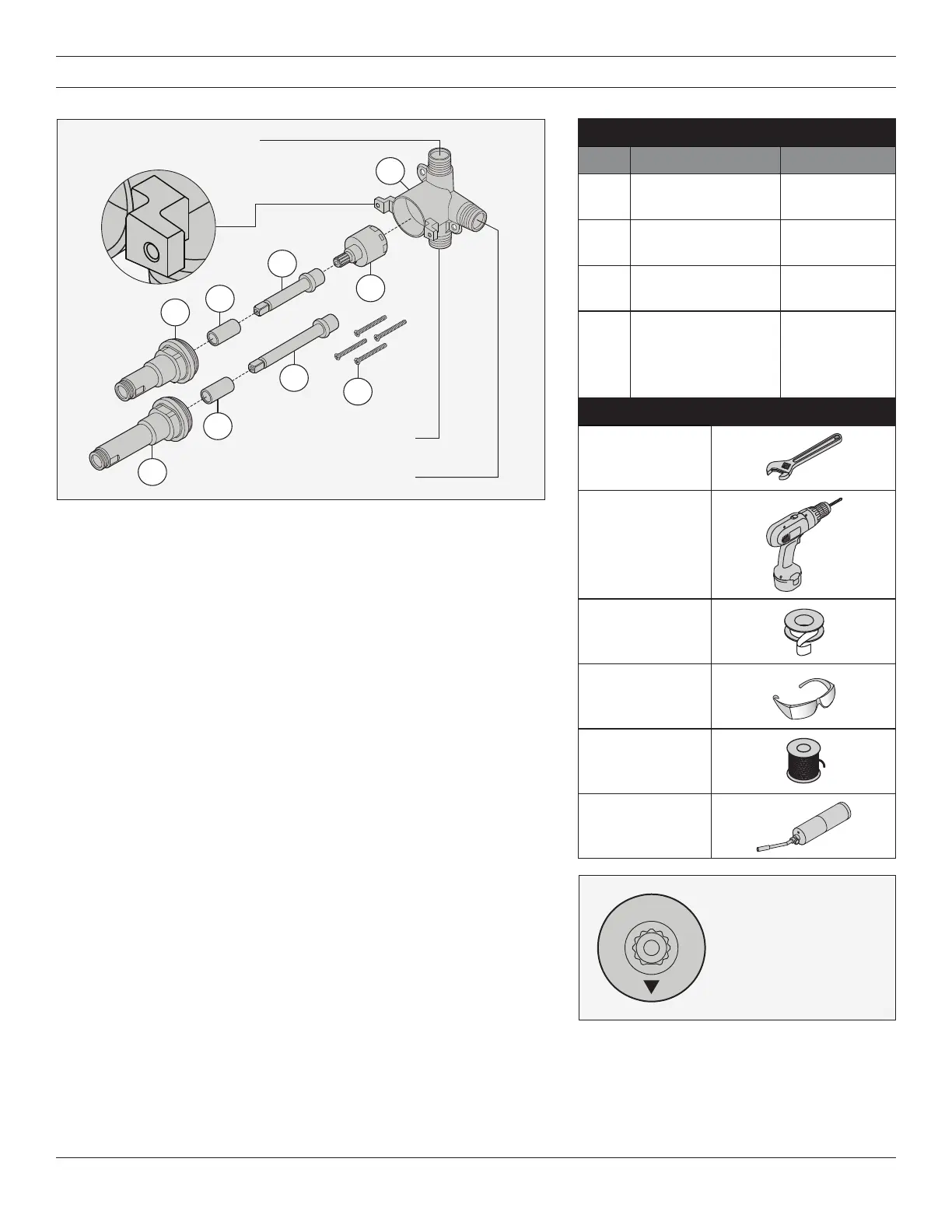

Parts Breakdown
Replacement Parts
Item Description Part Number
A Cap Assembly
RTS-DIVCAP-
SRT
C Cartridge Extender
RTS-DIVEXT-
SRT
D
F
Cartridge
Retaining Sleeve
RTS-2DIV
B
G
H
I
Spacer
1" Cap Extender
1" Cartridge Extender
4" Mounting Screws
RTS-DIV-1EXT
Tools Required
Adjustable
Wrench
Drill (optional)
Plumber Tape
Safety Glasses
Solder
Torch
FROM SHOWER VALVE
DIVERTER FUNCTION 1
DIVERTER FUNCTION 2
E
G
H
B
I
A
B
C
D
Important:
Cartridge (D)
must be installed
with arrow
facing down.
