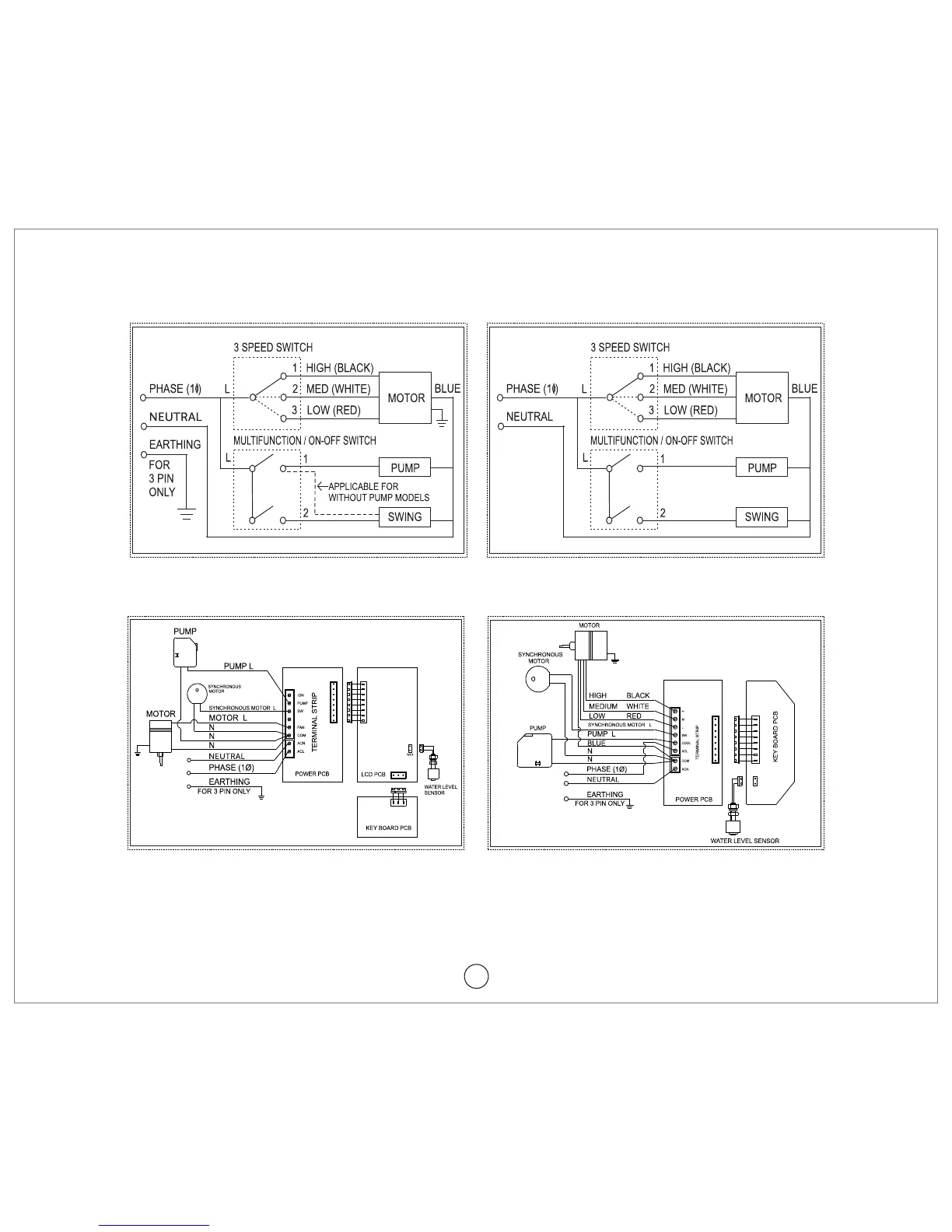

WIRING DIAGRAMS
CLASS II MODELS : SUPER JUMBO, JUMBO, SUPER JUMBO JR.,
JUMBO JR.,ICE CUBE, WINTER, SUMO, HI COOL PLUS ,NINJA, DIET
8T, DIET 12T, DIET 22T, DIET 33T, DIET 50T, SUMO +
MODELS : STORM 100 I & STORM 70 I
CLASS I MODELS : KAIZEN, KAIZEN JR. & SUMO JR.
MODELS : DIET 8I, DIET 12I, DIET 22I, DIET 33I, DIET 50I & HICOOL
SMART I, DIET 8E, DIET 22E, DIET 50E, DIET 8T CR, DIET 22T CR,
DIET 50T CR, HICOOL SMART, WINTER I
Note : WATER LEVEL SENSOR IS APPLICABLE IN SELECT MODELS / VARIANTS
