Chapter 2: Hardware Setup
Tools and Parts for Drive Installation
• A screwdriver
• At least one 3.5” or 2.5” SATA drive (please visit
www.synology.com
for compatible drive models)
Warning:
If you install a drive that contains data, the system will format the drive and erase all existing data. Please
back up any important data before installation.
Install Drives
1

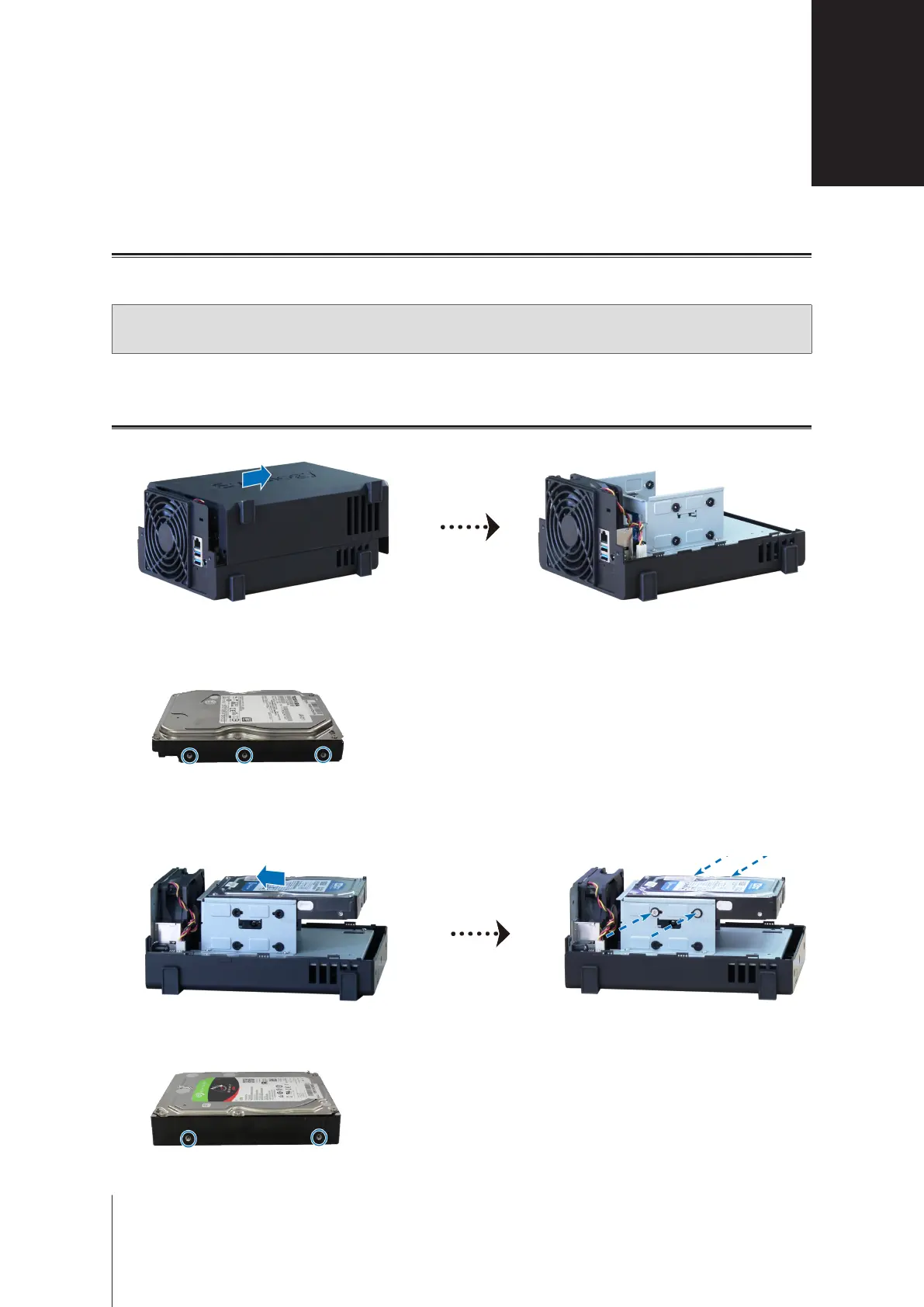

Push the upper case in the direction as shown below. Lift the upper case and set it aside.
2
Install drives:
•
For 3.5” drives with 3 screw holes on each side (indicated below):
a
Slide the drive into the hard drive bay, and push it all the way until it’s rmly connected to the SATA
connector.
b
Secure the drive with the screws provided.
•
For 3.5” drives with 2 screw holes on each side (indicated below):
Hardware Setup
2
Chapter
To Next Page
