How to Replace Hard Disk Backplane for 8 bay/5 bay DiskStation
Page 9 of 39
Date: 2014/4/11
Issued by: Hardware Development Group, Synology
®
Inc.

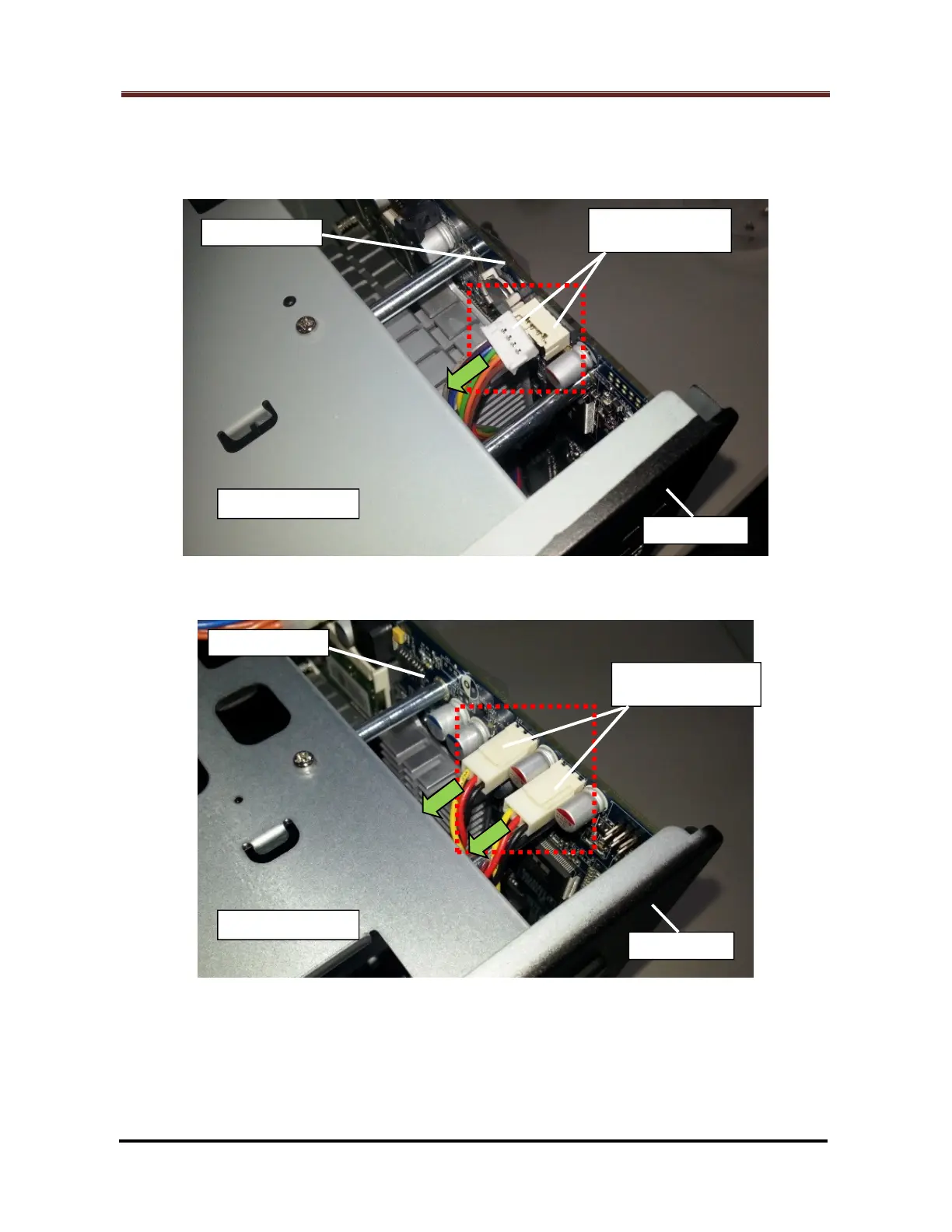

2.1.9 Unplug the eSATA board cable connector(s) (Marked by the red rectangle) from the
motherboard. (Fig. 9 for DS1813+, DS1513+, DX513 and Fig. 10 for DS1812+,
DS1512+, DS1511+, DX513 and DX510):
Fig. 9 – For DS1813+, DS1513+, DX513
Fig. 10 – For DS1812+, DS1512+, DS1511+, DX513, DX510
