How to Replace Hard Disk Backplane for 8 bay/5 bay DiskStation
Page 3 of 39
Date: 2014/4/11
Issued by: Hardware Development Group, Synology
®
Inc.
1. Introduction
This SOP explains about the detailed steps for replacing hard disk backplane (“HDD
backplane”) on Synology’s 8 bay/5 bay DiskStation products.

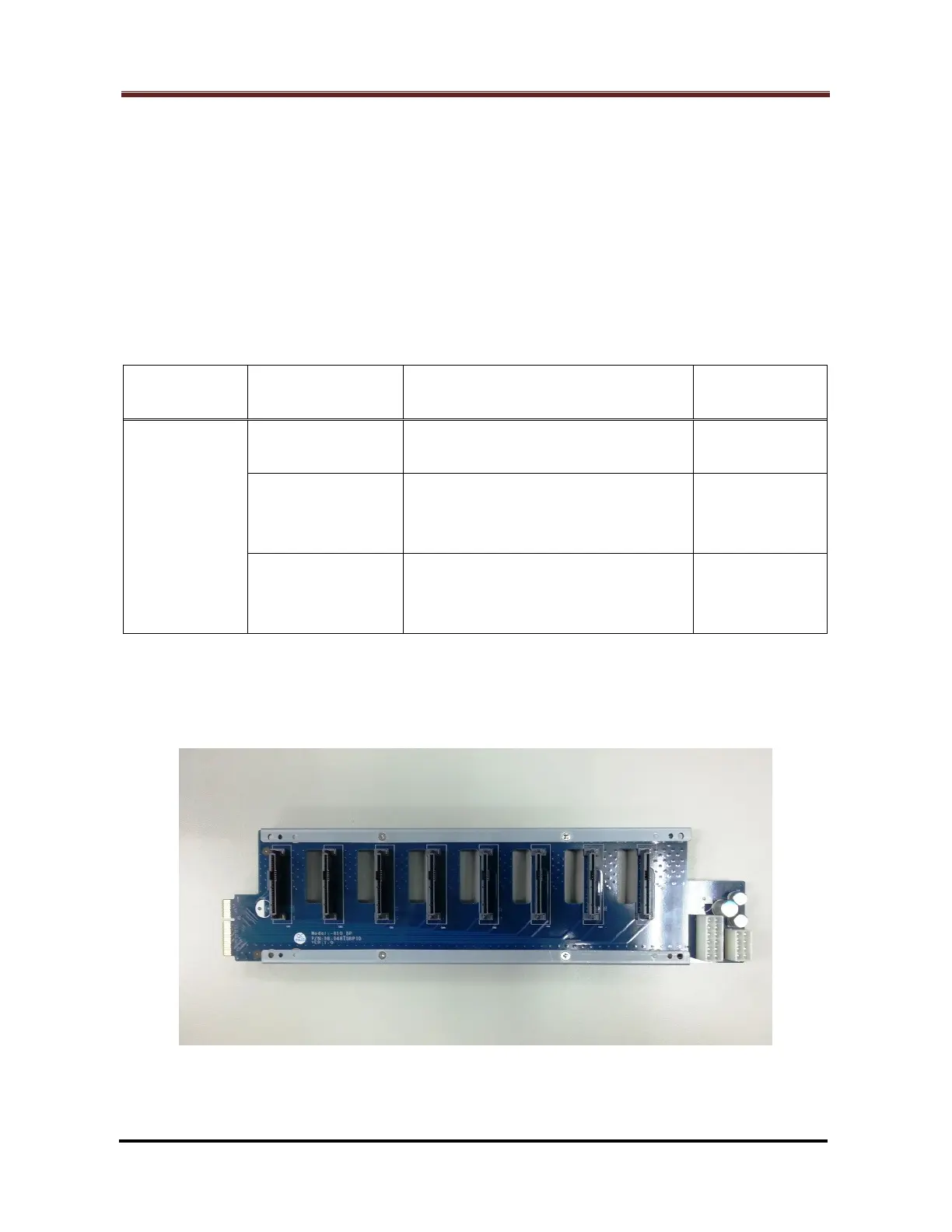

1.1 Applied Models & Required Components
 HDD backplane of the DiskStation model for replacing:
Required
Module
Item Code Description Applied Model
SATA
Backplane
80-18TBP0010
ASSY PCBA DS1812+ BP
SYNOLOGY V1.0
DS1813+
DS1812+
80-1512PSB11
ASSY PCBA DS1512+ SATA
BOARD SYNOLOGY V1.1
DS1513+
DS1512+
DX513 (*)
80-D510PSB14
ASSY PCBA DS1010+ SATA
BOARD SYNOLOGY V1.4
DS1511+
DX513 (*)
DX510
Note: For DX513, consult Synology for further information about the correct
backplane version before proceeding to replace.
 HDD Backplane for DS1813+ (Metal Frame Included)
