Firestar™ f201 laser & Flyer 3D System Quick Start Guide
a Novanta company
a Novanta company
Laser Unpacking:
Important
Note:
Caution! Packing the laser incorrectly can damage the laser!
Keep All Foam and Packaging, you will need to re-use it when moving your
laser. Refer to this guide and the Getting Started/Technical Reference chap-
ters in the laser’s Operation Manual when re-packaging for shipping and/or
relocation.

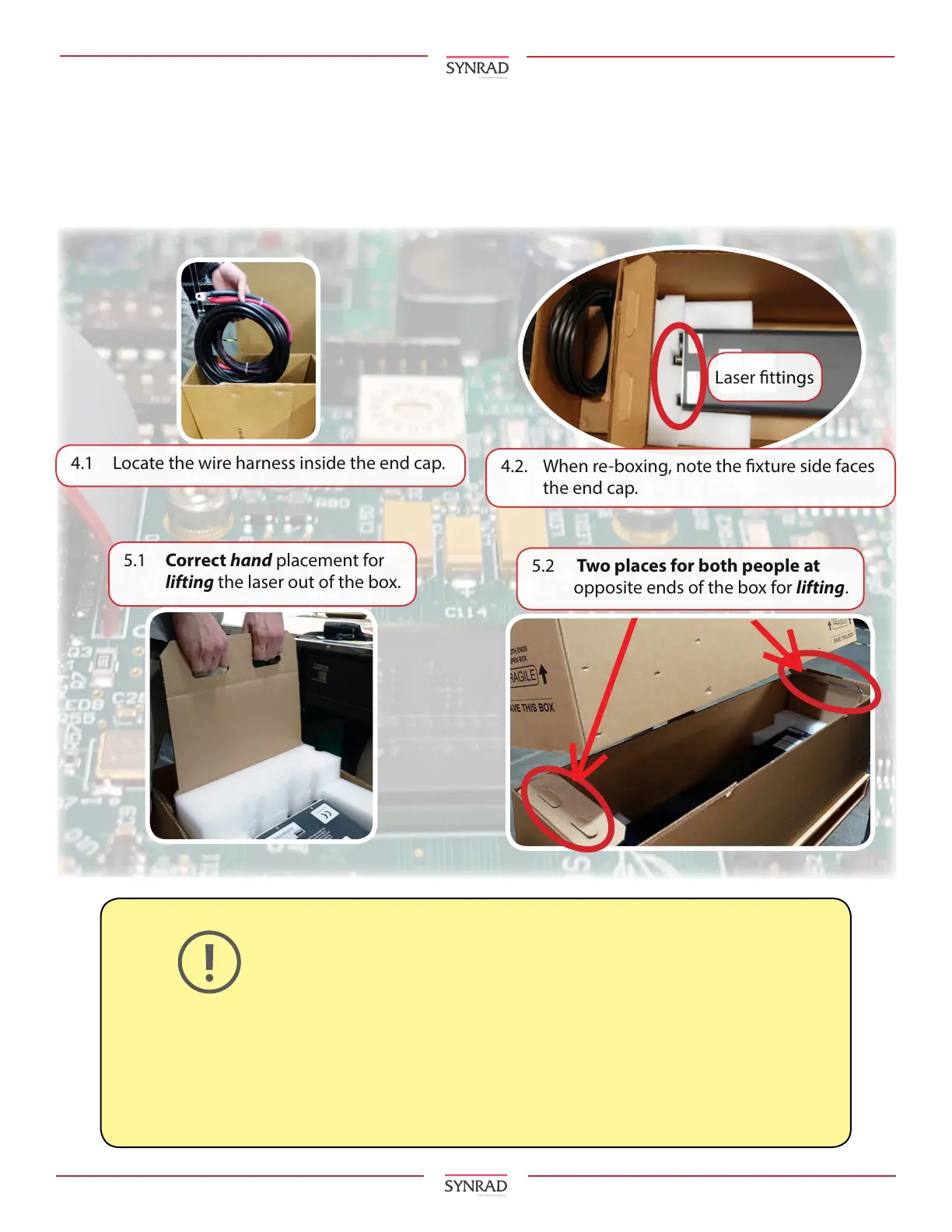

4.1 Locate the wire harness inside the end cap.
4.2. When re-boxing, note the xture side faces
the end cap.
Caution! When packing the laser for relocation or shipment, nothing can be on the sides
of the laser at any time as damage will occur. The skin on the sides of the laser is fragile!
All box components must be stowed under the laser.
The ttings will be damaged in shipping if not re-packaged as shown above.
4. Locate the mounting hardware kit at the end cap (tting side of the box or the cardboard pocket.)
5. Two people will be required to lift the laser out of the box using the lifting handles on each side of
the box.
Laser ttings
5.2 Two places for both people at
opposite ends of the box for lifting.
5.1 Correct hand placement for
lifting the laser out of the box.
