7 QSG f201 version 2.1
Firestar™ f201 laser & Flyer 3D System Quick Start Guide

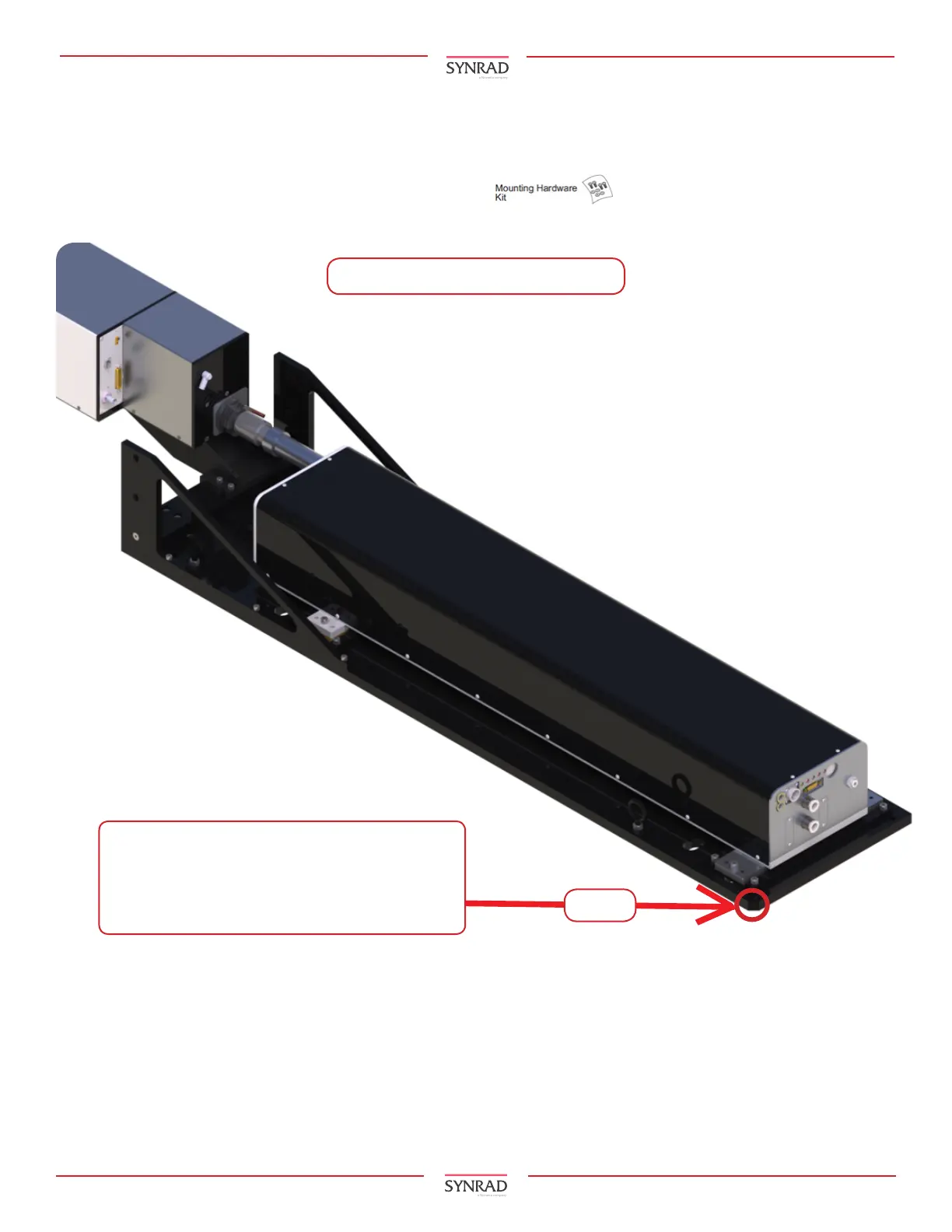

10. The laser should arrive with feet and shims installed, please refer to the gure below for further detail.
11. Locate the marking head Mounting Hardware Kit ( ) Marking Head Safety tube,
clamp, and Allen screws.
Mounting (the laser and the marking head to the rail):
Should look like this when done.
Note:
Very important! Assure the notch
is facing to the back left of the laser!
Otherwise, re-work required because the
head will be mounted incorrectly.
Notch
To Next Page
