Firestar™ f201 laser & Flyer 3D System Quick Start Guide
a Novanta company
a Novanta company

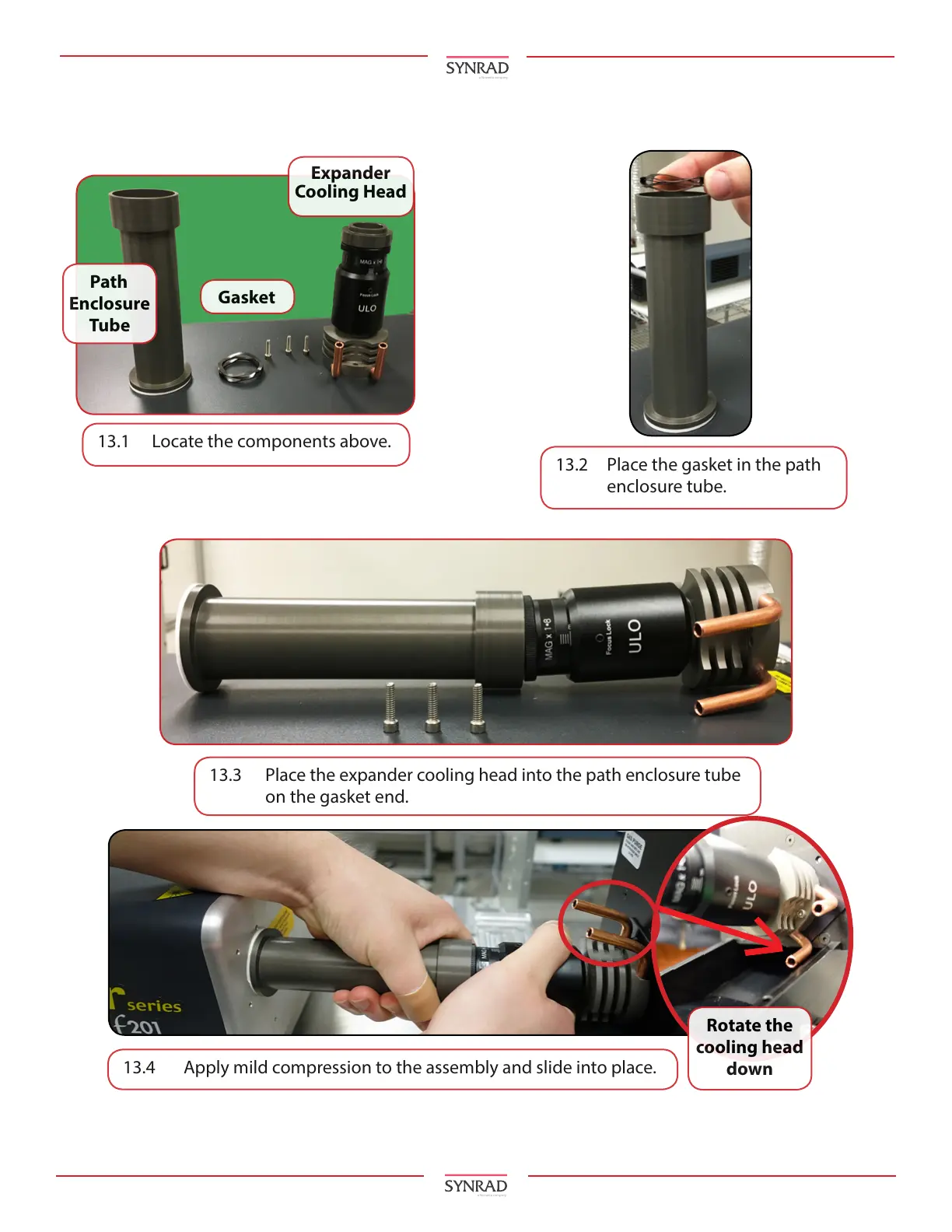

13. Assure the Laser and Marking Head are mounted on the rail rst, then assemble the tube’s path
enclosure below. Locate the path enclosure components in the kit.
13.3 Place the expander cooling head into the path enclosure tube
on the gasket end.
13.1 Locate the components above.
13.2 Place the gasket in the path
enclosure tube.
Gasket
Path
Enclosure
Tube
Expander
Cooling Head
13.4 Apply mild compression to the assembly and slide into place.
Rotate the
cooling head
down
