316 Synrad Firestar ti-Series operator’s manual
User I/O connections

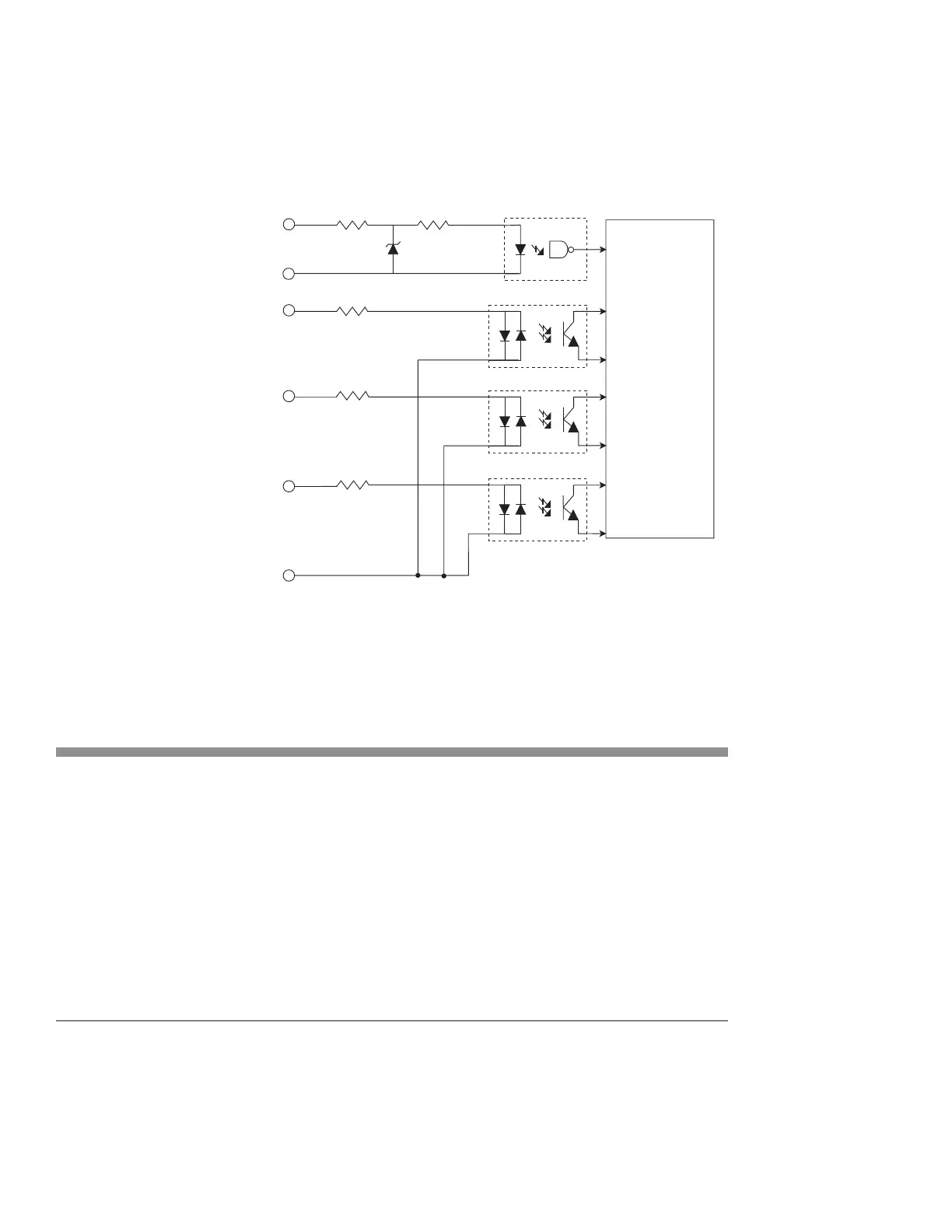

Figure 3-9 Input equivalent schematic
Table 3-4 Input circuit specifications
Input Signal Name Input Device Type and Specifications
PWM Input High-speed optoisolator LED, forward voltage drop (Vf) 1.5 VDC
Off state Vmax +0.8 VDC
On state Vmin +3.5 VDC @ 3 mA
On state (continuous) Vmax +6.7 VDC @ 10 mA
Frequency, max. 25 kHz
Remote Reset/Start Request Bi-directional optoisolator LED, forward voltage drop (Vf) 1.15 VDC
Remote Interlock Off state Vmax < 1.0 VDC
Shutter Open Request On state Vmin ±5.0 VDC @ 7 mA
On state (continuous) Vmax ±24.0 VDC @ 40 mA
Note: The Remote Reset/Start Request input must not be sent until Firestar’s +5 VDC power supply
has stabilized (approximately 200 ms after DC power-up).
U
S
ER I
/O
INPUT
S
I
G
NAL PIN
S
PWM INPUT (+) (9)
PWM RETURN (–) (1)
REMOTE RESET/START REQUEST (2)
REMOTE INTERLOCK (3)
SHUTTER OPEN REQUEST (10)
INPUT COMMON (11)
600 Ohm, 2W
600 Ohm, 2W
600 Ohm, 2W
FIRESTAR ti-SERIES
INPUT CIRCUITRY
220 Ohm, 1/8W
430 Ohm, 1/10W
