Synrad Firestar ti-Series operator’s manual
Troubleshooting
Functional block diagram
Figure 4-2 is a functional block diagram illustrating ti-Series control architecture.

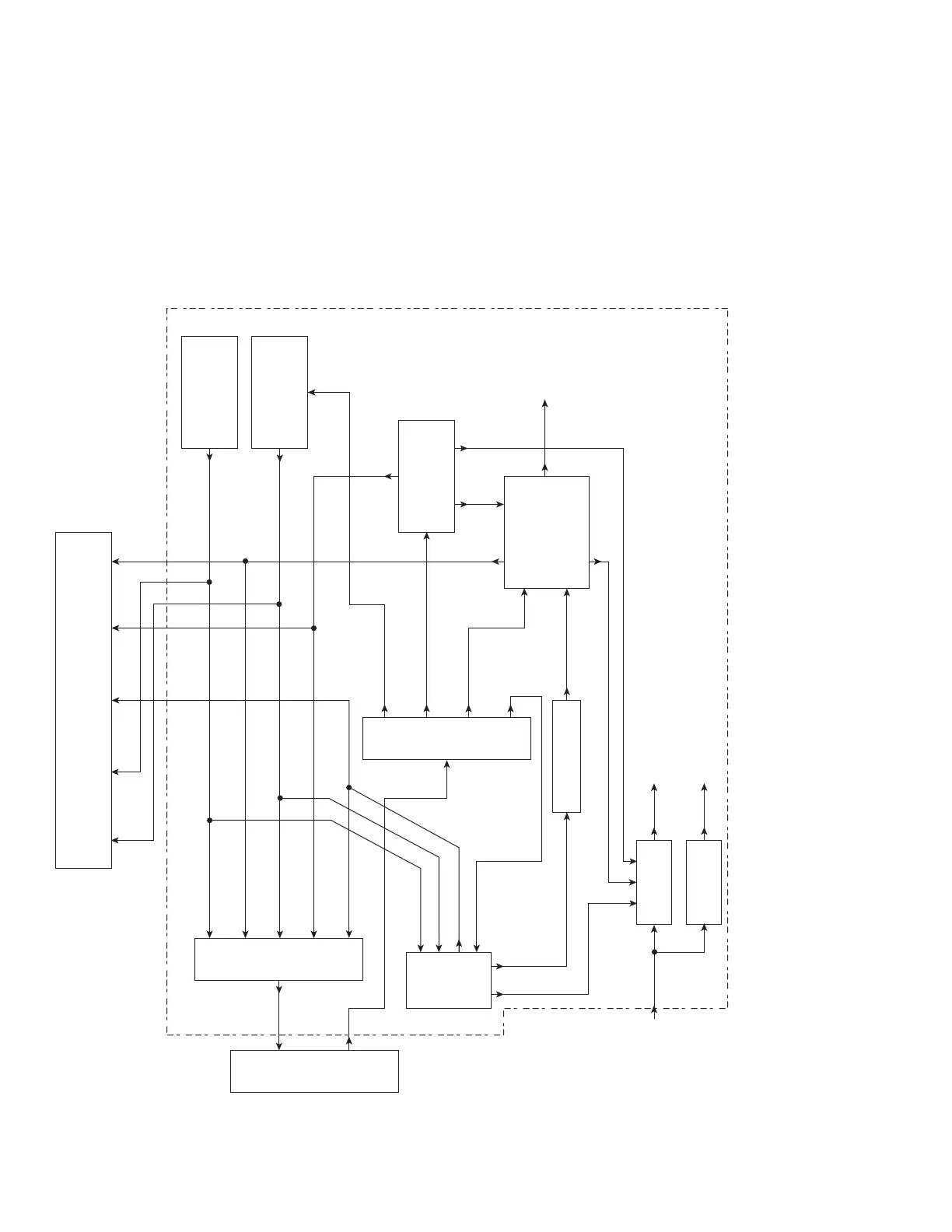

Figure 4-2 Firestar ti-Series functional block diagram
