FUNCTIONAL DESCRIPTION
9-16 Sysmex KX-21 Operator’s Manual -- Revised October 1998
4) 2A Histogram without T1
Although the histogram error flag is not added to WBC, all other parameters are
flagged with T1 and their data are not output. Note that WBC in the graph
exceeds the upper Patient Mark Limits.

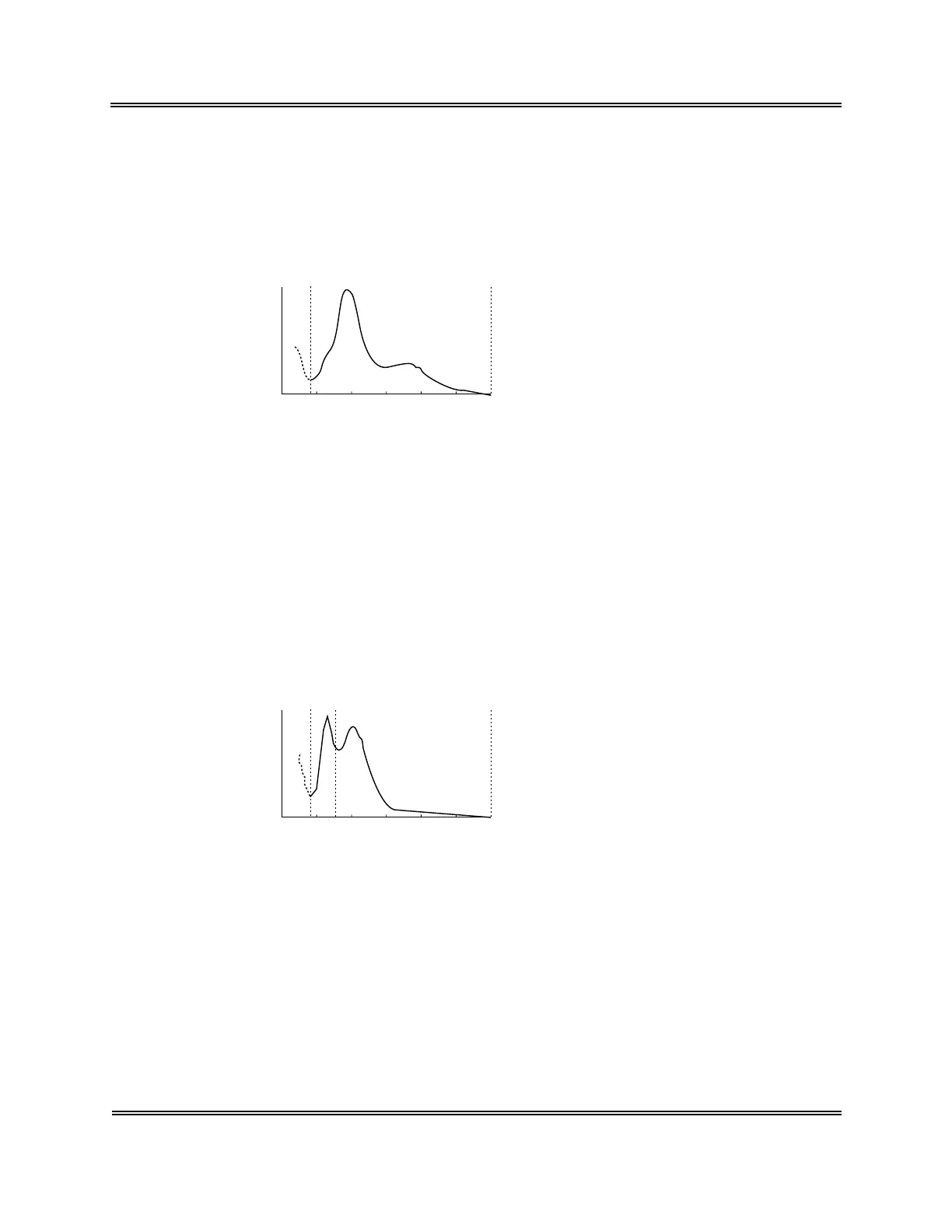

• WBC Histogram Error-T1 (2A)
WBC
UDLD
+15.4
---.-
---.-
---.-
---.-
---.-
---.-
[×10
3
/µL]
[%]
[%]
[%]
[×10
3
/µL]
[×10
3
/µL]
[×10
3
/µL]
300200100 [fL]
T1
T1
T1
T1
T1
T1
WBC
LYM%
MXD%
NEUT%
LYM#
MXD#
NEUT#
Figure 9-6-6: WBC Histogram Error-T1 (2A)
5) 2B Histogram having high UD but without T1
WBC is flagged with WU. All other parameters are flagged with T1 and their
data are not output.
6) 3A Histogram with high T1 but without T2
WBC is not flagged. F1 flag is added to lymphocyte parameters (LYM%,
LYM#). Mixed cell and neutrophil parameters (MXD%, NEUT%, MXD#,
NEUT#) are flagged with T2 and their data are not output.
• WBC Histogram Error-T2 (3A)
WBC
UDLD T1
5.2
29.7
---.-
---.-
1.5
---.-
---.-
[×10
3
/µL]
[%]
[%]
[%]
[×10
3
/µL]
[×10
3
/µL]
[×10
3
/µL]
300200100 [fL]
F1
T2
T2
F1
T2
T2
WBC
LYM%
MXD%
NEUT%
LYM#
MXD#
NEUT#
Figure 9-6-7: WBC Histogram Error-T2 (3A)
7) 3B Histogram with high T1 but without T2, and high in UD frequency
WBC is flagged with WU and lymphocyte parameters (LYM%, LYM#) are
flagged with F1. Mixed cell and neutrophil parameters (MXD%, NEUT%,
MXD#, NEUT#) are flagged with T2 and their data are not output.
