FUNCTIONAL DESCRIPTION
9-24 Sysmex KX-21 Operator’s Manual -- Revised October 1998
5) 2B High UD with 20%-frequency distribution width error
RBC, HCT, MCV, MCH, MCHC, and PLT parameters are flagged. Out of the
particle distribution width data, RDW-CV is flagged with RU and its data are
output.
RDW-SD is flagged with DW and its data are not output. In this instance, MCV
and MCHC are out of Patient Mark Limits.
• RBC Histogram Error - RU, DW (2B)
3.57
11.5
52.9
+148.2
32.2
-21.7
---.-
185
RBC
[×10
6
/µL]
[g/dL]
[%]
[fL]
[pg]
[g/dL]
[fL]
[×10
3
/µL]
250200100 [fL]
RBC
HGB
HCT
MCV
MCH
MCHC
RDW-SD
PLT
RU
RU
RU
RU
RU
DW
RU

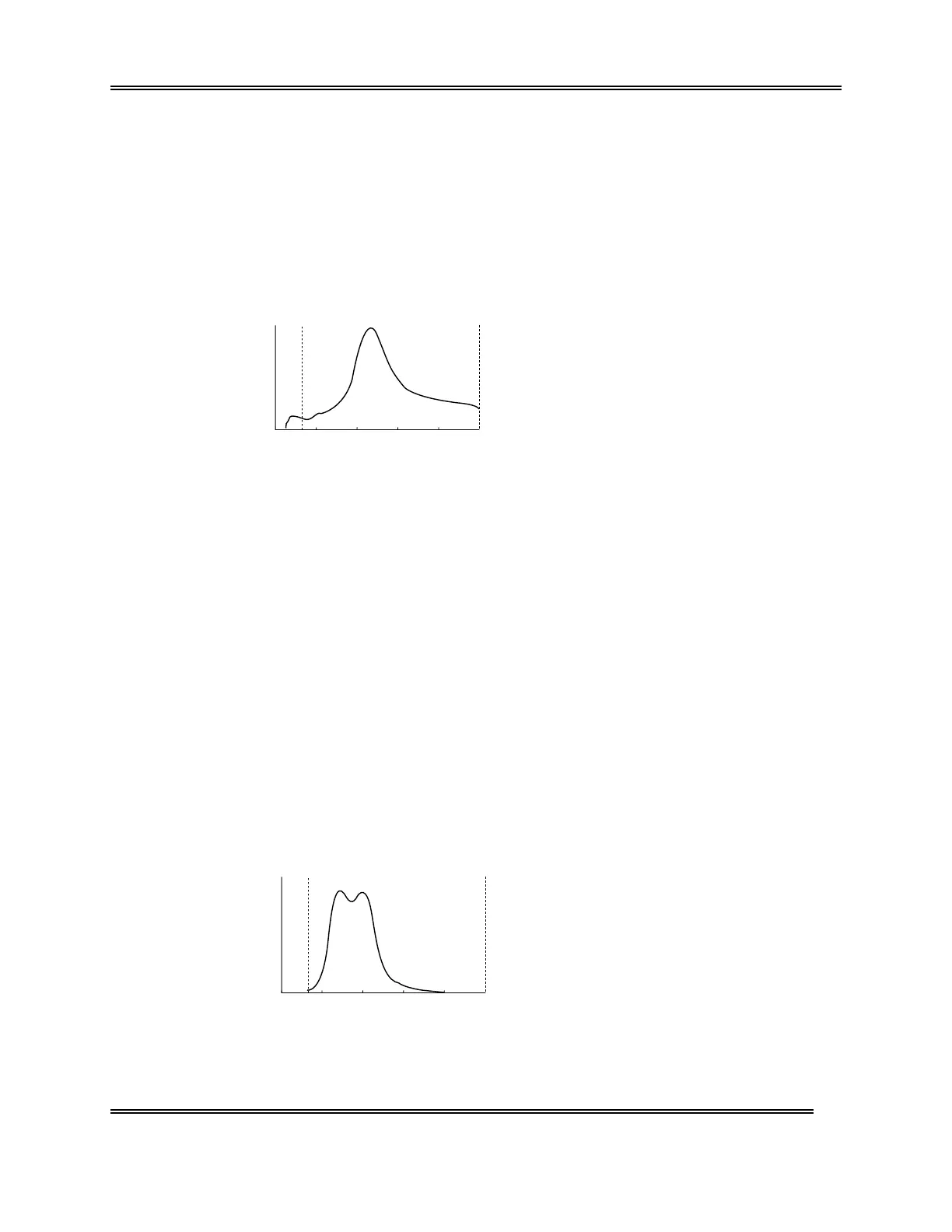

Figure 9-6-18: RBC Histogram Error - RU, DW (2B)
6) 2C High UD with two or more peaks
RBC, HCT, MCV, MCH, MCHC, and PLT parameters are flagged with RU.
As to particle distribution width data, RDW-CV is flagged with MP and its data
are output, while RDW-SD is also flagged with MP but its data are not output.
7) 3 20%-frequency particle distribution width error
RBC, HCT, MCV, MCH, MCHC, and PLT parameters are not flagged. As to
the particle distribution width data, RDW-CV data are output without flagging,
while RDW-SD data are flagged with DW and their data are not output.
8) 4 Two or more peaks
RBC, HCT, MCV, MCH, MCHC, and PLT parameters are not flagged. As to
the particle distribution width data, RDW-CV data are output with MP flag.
RDW-SD is flagged with MP and its data are not output. In this instance, RDW-
CV is out of Patient Mark Limits.
• RBC Histogram Error - MP (4)
4.80
14.2
41.5
86.5
29.6
-34.2
+33.3
216
RBC
[×10
6
/µL]
[g/dL]
[%]
[fL]
[pg]
[g/dL]
[%]
[×10
3
/µL]
250200100 [fL]
RBC
HGB
HCT
MCV
MCH
MCHC
RDW- CV
PLT
MP
Figure 9-6-19: RBC Histogram Error - MP (4)
