5.5.3 Type designation
Examples AXCBF-EX 250-6/28°-2
AXC-EX 355-7/32°-4
AXCBF AXC Axial fan
EX EX Explosion-protected fan
250 355 Size/rotor diameter 250 ... 1.600
6 7 Number of blades
28° 32° Blade angle
2 4 Number of poles
Table 7: Type key of the AXCBF-EX / AXC-EX series

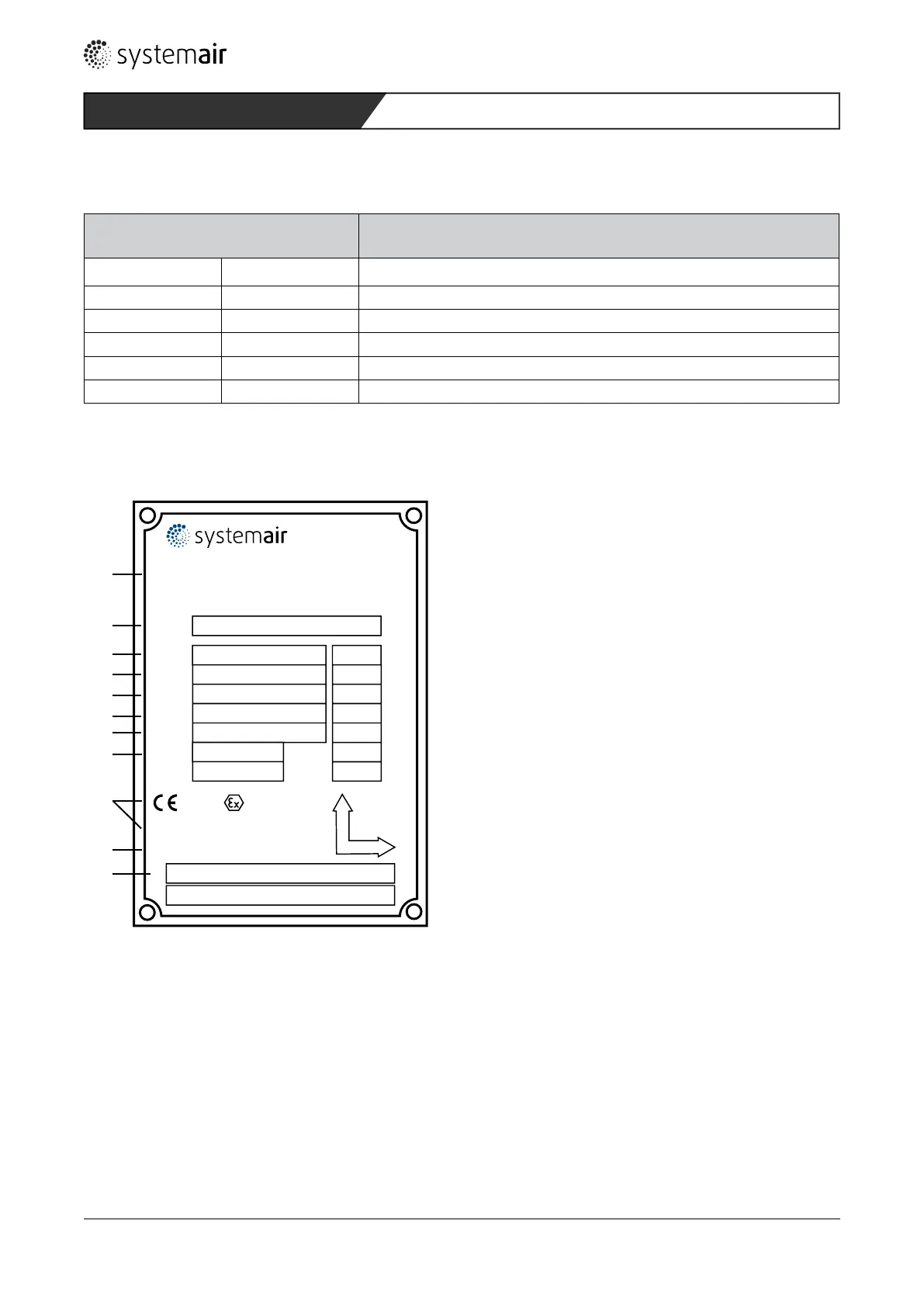

5.5.4 Name plate (example)
Systemair GmbH, 97944 Boxberg-Windischbuch Deutschland
Tel: +49 (0) 7930-92720 Fax: +49(0) 7930-927293
www.systemair.de
RefNr
TypNr
P2 kW
P2 kW
Höchst kW
Höchst kW
Ampere
Ampere
26°
2011
50
400
3
2890
Winkel
Baujahr
Hz
Vo lt
Phase
U/min
U/min
AXC-EX-500-9/26°-2
5,50
5,10
12
0820 II 2G c
Ex d(e) IIC T4
Sira 07ATEX6341X
ta = -20°- +60°C
Pa. Nummer einfügen
9
7
8
1
2
3
4
5
6
10
11
1 Manufacturer‘s information
2 Product order number
3 Type no. / blade angle
4 Motor output / year of manufacture
5 - / frequency
6 Max. output / voltage
7 - / phases
8 Current / revs./minute
9 Identication to ATEX
10 EC test type certication number
11 Ambient temperature
Fig. 4: Name plate of the AXCBF-EX / AXC-EX series
